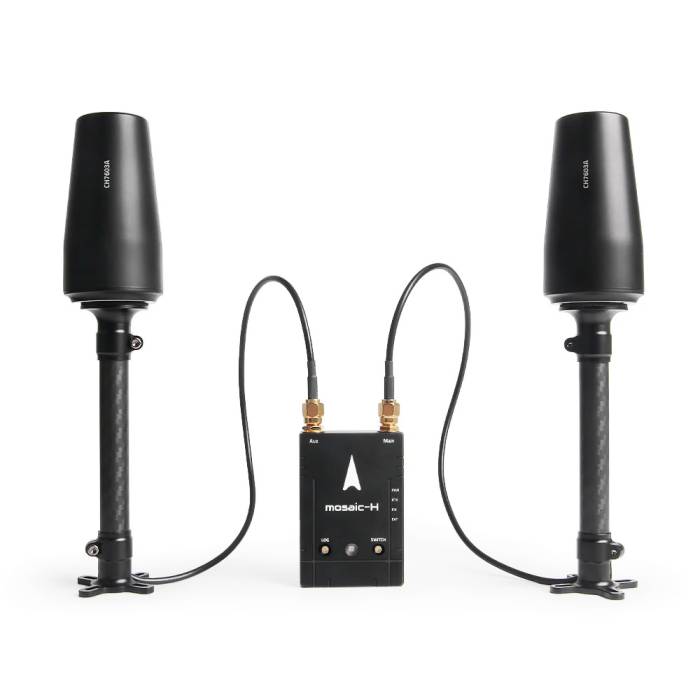

Holybro H-RTK Mosaic-H GPS Module w/ Dual Antennas
Holybro H-RTK Mosaic-H GPS Module w/ Dual Antennas
In Stock
About this product
The Holybro H-RTK Mosaic-H, with Septentrio's elite GNSS receiver, offers advanced RTK GPS in a compact design. With an IST8310 magnetometer, dual antennas, and an aluminum enclosure, it enables easy configuration, spectrum analysis, and data logging. Its dual-antenna system provides compassless YAW information, eliminating magnetic interference for precise navigation. Septentrio's proprietary AIM+, LOCK+, and RAIM+ technologies make it ideal for UAVs and robotics, ensuring reliable performance in challenging conditions.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- Best-in-class RTK performance
- Advanced anti-jamming
- Dual antenna support
- Satellite tracking
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Application: Moving Baseline Rover, Base Station, Rover, PPK
- Product: Holybro H-RTK Mosaic-H (Dual Antenna)
- Power Consumption: 0.6 W typ &1.1 W max
- Baud Rate: (Adjustable) 230400 5Hz default
- Operating Temperature: -40℃ to 85℃
- Magnetometer (Compass): IST8310
- Weight: 54.5g (without antennas)
- Working Voltage: 4.75V~5.25V
- LNA Gain: 33±2dB
- Latency: < 10 ms
- Antennas: 2dBi
- GNSS:
- SBAS: Egnos, WAAS, GAGAN, MSAS, SDCM (L1)
- QZSS: L1C/A, L1C/B, L2
- Beidou: B1, B2, B3
- GLONASS: L1, L2
- Galileo: E1, E5b
- GPS: L1, L2
- Data and Update Rate:
- Standalone, SBAS, DGPS + attitude: 50 Hz
- Measurements only: 100 Hz
- RTK + attitude: 20 Hz
- Data and Update Rate:
- Standalone, SBAS, DGPS + attitude: 50 Hz
- Measurements only: 100 Hz
- RTK + attitude: 20 Hz
- RTK Performance:
- Horizontal accuracy: 0.6 cm + 0.5 ppm
- Vertical accuracy: 1 cm + 1 ppm
- Port:
- Port 2: UART1 (GH1.25 10pin)
- Port 3: UART2 (GH1.25 6pin)
- Port 1: USB Type-C
- Antenna Connection Type:
- Board: SMA female
- Antenna: SMA male
- Dimensions:
- Antenna Diameter: 40mm
- Board: 42.771.813.3mm
- Antenna Height: 76mm
- Time Precision:
- Event accuracy: < 20 ns
- xPPS out: 5 ns
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Includes
- 1x Holybro H-RTK Mosaic-H GPS Module
- 2x Antenna Mount for H-RTK
- 1x GH 10P to 6P Cable
- 2x SMA Cable(40CM)
- 2x GH 10P Cable
- 1x USB-C Cable
- 1x GH 6P Cable
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 21928 |
---|---|
UPC (GTIN) | 724376360550 |
Manufacturer | Holybro |
NDAA Compliant | No |
Item Returns | This item can be returned |
