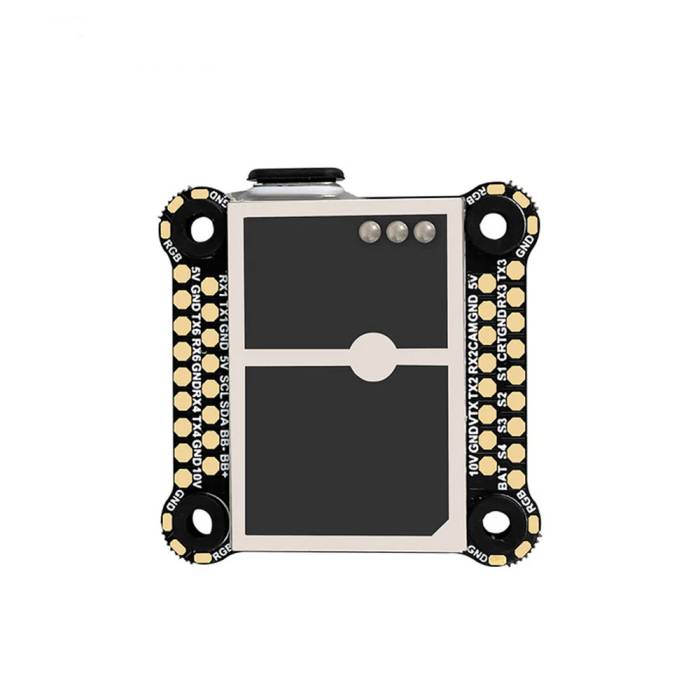

DarwinFPV Cement F722 Flight Controller - ICM42688
Introducing Darwin FPV's "Cement" Flight Controller: the ultimate solution for professional pilots, addressing the reliability issues of FPV drones.

About this product

Introducing Darwin FPV's "Cement" Flight Controller: the ultimate solution for professional pilots, addressing the reliability issues of FPV drones. With its ultra-durable waterproof design, you fly confidently in any environment, enhancing your flying experience and inspiring creativity. Packed with advanced features like streamlined interfaces, improved thermal management, and robust hardware protections, ensuring stability and reliability in extreme conditions while maintaining compatibility and a flying feel.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: Diatone Mamba H743 MK4 FC & 128K ESC Unboxing

Features

  • Onboard multi-level LED indicator lights for quick inspection of flight controller operation status
  • F722 main control chip boasts incredibly strong computing power
  • Unparalleled experience and top-tier enjoyment
  • Onboard 4G massive black box storage
  • IP67 dust and waterproof rating
  • 128KHz dynamic PWM output
  • Onboard Pit Switch module
  • Increased spatial utilization
  • Enhanced heat dissipation
  • Multiple protections

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

Specifications

  • Reserved Interface: 5x UARTs (1, 2, 3, 4, 6), 4x Softserial, 1x I2C, 4x RGB, 1x Buzzer, 1x USER (C09)
  • Dimensions: 39.5mm x 39.5mm x 4mm
  • Firmware Name: DARWINF722HDV2
  • Mounting Hole: 30.5mm x 30.5mm
  • Gyroscope: MPU6000/ICM42688
  • Black box: Built-in 8G SD card
  • BEC Output: 10V/3A, 5V/3A
  • Input Voltage: 2-6S LiPo
  • Weight: 10.1g ± 0.2g
  • MCU: STM32F722
  • OSD: AT7456E

IMPORTANT NOTES

  • Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

Recommended (Not Included)

Links

  •   (Insert links such as manuals, firmware, etc)

Includes

  • 1x DarwinFPV Cement F7 Flight Controller - ICM42688
  • 4x M3x4.5mm shock-absorbing balls (installed on FC)
  • 1x 65mm analog VTX cable (4P)
  • 1x 65mm receiver cable (4P)
  • 1x 65mm HD VTX cable (6P)
  • 1x 65mm GPS cable (6P)
  • 1x 30mm ESC cable (8P)
  • 1x Sticker

Featured Videos

ADD VIDEO TITLE HERE IN BOLD CAPS

ADD VIDEO TITLE HERE IN BOLD CAPS



More Information

SKU 21283
UPC (GTIN) 724376360901
Manufacturer DarwinFPV
Mounting Pattern 30.5x30.5mm
NDAA Compliant No
