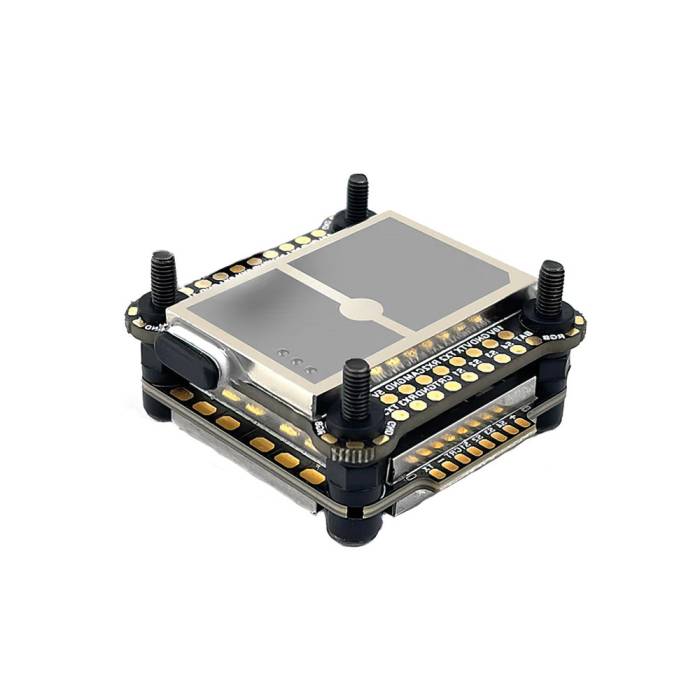

DarwinFPV Cement Stack - F7 FC + 100A 3-8S ESC - ICM42688
Introducing Darwin FPV's "Cement" stack: the ultimate solution for professional pilots, addressing the reliability issues of FPV drones.

About this product

Introducing Darwin FPV's "Cement" stack: the ultimate solution for professional pilots, addressing the reliability issues of FPV drones. With its ultra-durable waterproof design, you fly confidently in any environment, enhancing your flying experience and inspiring creativity. Packed with advanced features like streamlined interfaces, improved thermal management, and robust hardware protections, ensuring stability and reliability in extreme conditions while maintaining compatibility and a flying feel.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: Diatone Mamba H743 MK4 FC & 128K ESC Unboxing

Features

  • Onboard multi-level LED indicator lights for quick inspection of flight controller operation status
  • F722 and F435 main control chips boast incredibly strong computing power
  • Unparalleled experience and top-tier enjoyment
  • Onboard 4G massive black box storage
  • IP67 dust and waterproof rating
  • 128KHz dynamic PWM output
  • Onboard Pit switch module
  • Increased spatial utilization
  • Enhanced heat dissipation
  • Greater current capacity
  • Multiple protections

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

Specifications

ESC

  • MCU: 32-bit F4 with a main frequency of 120MHz, supporting a maximum PWM Packet Rate of 128KHz
  • Continuous/Peak Current: 100A x 4/120A x 4 (continuous 100A requires a water-cooling environment)
  • Supported Throttle Signals: Dshot150/300/600/1200, MultiShot, Oneshot42, Oneshot125
  • Weight: 23.0g ± 0.2g (excluding capacitors and power cords)
  • Current Sensor: Supported (current meter scale: 125)
  • Application: Suitable for 5-10 inch FPV Drones
  • Dimensions: 36.8mm x 42.5mm x 7.5mm
  • Mounting Hole: 30.5mm x 30.5mm
  • Power Cord: 14AWG, 120mm long
  • Firmware Name: DARWIN_F4_60
  • Input Voltage: 3-6S LiPo
  • Power Plug: XT60

FLIGHT CONTROLLER

  • Reserved Interface: 5x UARTs (1, 2, 3, 4, 6), 4x Softserial, 1x I2C, 4x RGB, 1x Buzzer, 1x USER (C09)
  • Dimensions: 39.5mm x 39.5mm x 4mm
  • Firmware Name: DARWINF722HDV2
  • Mounting Hole: 30.5mm x 30.5mm
  • Gyroscope: MPU6000/ICM42688
  • Black box: Built-in 8G SD card
  • BEC Output: 10V/3A, 5V/3A
  • Input Voltage: 2-6S LiPo
  • Weight: 10.1g ± 0.2g
  • MCU: STM32F722
  • OSD: AT7456E

IMPORTANT NOTES

  • Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

Recommended (Not Included)

Links

  •   (Insert links such as manuals, firmware, etc)

Includes

  • 4x M3x25 hexagon socket head black 304 screws (installed on the stack)
  • 1x 14AWG power cable (length 120mm, soldered to the ESC)
  • 1x 35V/1000uF electrolytic capacitor (soldered to the ESC)
  • 4x M3x6.6mm shock-absorbing balls (installed on the ESC)
  • 4x M3x4.5mm shock-absorbing balls (installed on FC)
  • 1x DarwinFPV Cement Waterproof 100A 3-8S ESC
  • 1x DarwinFPV Cement Waterproof F7 FC
  • 1x 65mm analog VTX cable (4P)
  • 1x 65mm receiver cable (4P)
  • 1x 65mm HD VTX cable (6P)
  • 1x 65mm GPS cable (6P)
  • 1x 30mm ESC cable (8P)
  • 1x Hardware Set
  • 1x sticker
  • 1x XT60

Featured Videos

ADD VIDEO TITLE HERE IN BOLD CAPS

ADD VIDEO TITLE HERE IN BOLD CAPS



More Information

SKU 21282
UPC (GTIN) 724376360918
Manufacturer DarwinFPV
Expected Date 2024-05-31
NDAA Compliant No
Mounting Pattern 30.5x30.5mm
