Axisflying F722 DJI Flight Controller w/ OSD - Mini 20x20
$65.99
$52.78
Out of Stock
Only left for same day shipping. Order now!

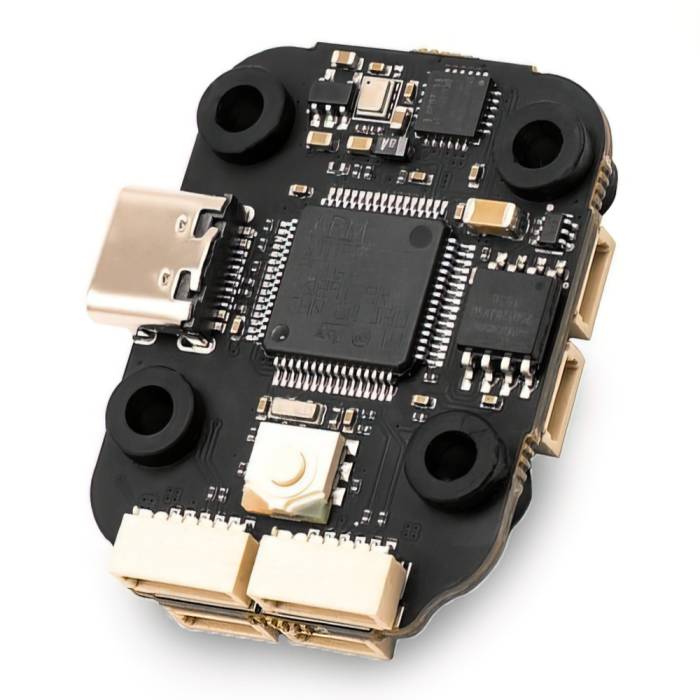

Axisflying F722 DJI Flight Controller w/ OSD - Mini 20x20
The Axisflying F722 Flight Controller is plug-and-play compatible for both Analog and HD and easily connects to a DJI FPV Air Unit. This FC has a 20x20 mounting pattern and features an MPU6000 Gyro, QMP6988 Barometer, and 5V 3A BEC.
About this product
The Axisflying F722 Flight Controller is plug-and-play compatible for both Analog and HD and easily connects to a DJI FPV Air Unit. This FC has a 20x20 mounting pattern and features an MPU6000 Gyro, QMP6988 Barometer, and 5V 3A BEC.
Features
- 16MB (128Mbit) BlackBox Flash
- DJI FPV Air Unit Compatible
- Works with iStack
- MPU6000 Gyro
- F722 Processor
- Plug and Play

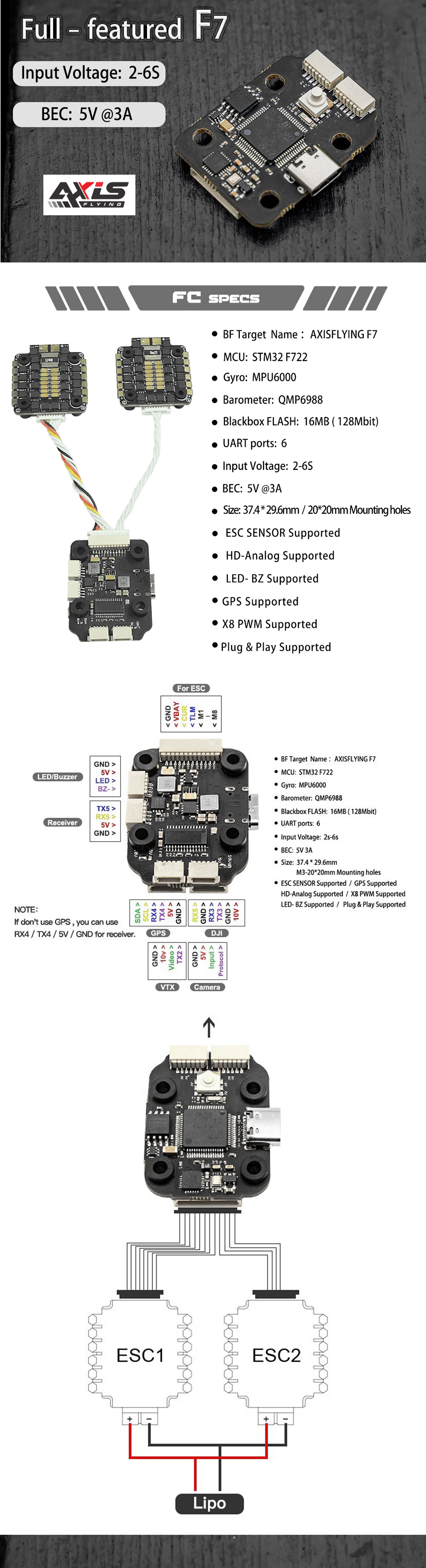

Specifications
- Mounting Pattern: 20x20mm
- Dimensions: 37.4x29.6mm
- ESC Sensor: Supported
- Target: AXISFLYING F7
- HD-Analog: Supported
- X8 PWM: Supported
- LED-Bz: Supported
- MCU: STM32 F722
- Input Voltage: 2-6S
- GPS: Supported
- Blackbox: 16MB
- Gyro: MPU6000
- Baro: QMP6988
- BEC: 5V@3A
- Plug & Play
- UARTS: 6
- OSD: Yes
Includes
- 1x Axisflying F722 DJI Flight Controller w/ OSD - Mini 20x20
- 5x Connecting Wires
More Information
| SKU | 17791 |
|---|---|
| UPC (GTIN) | 764613342437 |
| Manufacturer | Axisflying |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 20x20mm |
| Flight Controller Processor | F7 |
