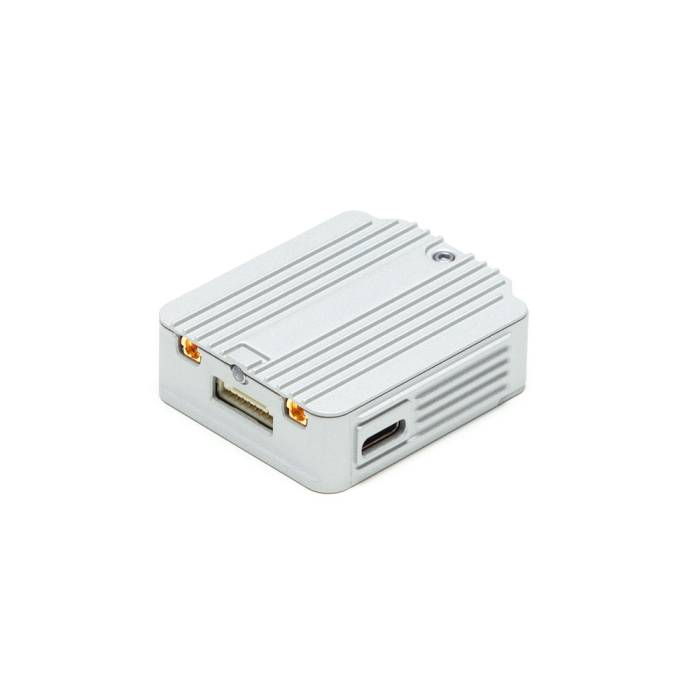

DJI Digital HD FPV Air Unit Module
DJI Digital HD FPV Air Unit Module
About this product
The FPV Air Unit Module features an ultra-low-latency high-definition digital image transmission, 1080p/60fps video recording, and eight frequency channels, allowing eight pilots to fly simultaneously. Houses the transceiver for the DJI HD FPV system.
Does not come with HD FPV camera.
Specifications
Dimensions
Air Unit: 44 × 37.8 × 14.4 mm
Operating Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP): FCC/SRRC: <30 dBm; CE: <14 dBm
Min. Latency (end-to-end)
Low Latency Mode (720p/120fps): <28 ms
High-Quality Mode (720p/60fps): <40 ms
Max. Transmission Distance: FCC/SRRC: <4 km; CE: <0.7 km
Video Format: MP4 (Video format: H.264; Audio format: ACC-LC)
I/O Interface: USB-C, MMCX, 3-in-1 port, microSD card slot
Operating Temperature Range: 32°to 104°F (0° to 40°C)
Input Power: 7.4-17.6 V, about 4-9 W
Channels: 8
Channels Info
FCC
Channel 1: 5660
Channel 2: 5695
Channel 3: 5735
Channel 4: 5770
Channel 5: 5805
Channel 6: 5878
Channel 7: 5914
Channel 8: 5839
Includes
- 1 x DJI FPV Air Unit Module
FPV Regulatory Notice
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
More Information
| SKU | 10826 |
|---|---|
| UPC (GTIN) | 190021336483 |
| Manufacturer | DJI |
| Mounting Pattern | N/A |
| Frequencies | 5.8GHz |
| Item Returns | This item can be returned |
