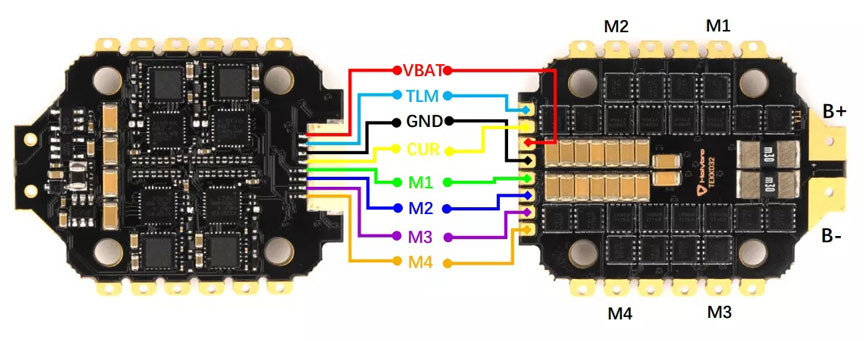

The Holybro Tekko32 Mini F4 45A 4-in-1 ESC is one the first 4-in1 ESC in the market to adapt F4 MCU, providing a smooth control operation and quick response!

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

•  20x20 Mounting size
• Supports 3-6S lipo
• Equipped BLHELI32 firmware

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

•  F4 MCU with BLHELI32 firmware
• Maximum PWM output up to 96K (16k to 96k)
• The amperage meter scale ratio has been adjusted to 168.
• PWM input, TLM supported
• Voltage output (VBAT)
• NO output BEC
• Supports Oneshot / Multishot / Dshot PWM
• Supports damped light
• Supports 3-6S lipo input
• Ext. cap needed for 6s (1000uf 35v for 6s usage.)
• Mounting holes: 20x20mm(M3)
• Size:30 x 39 mm
• Weight: 7.2g

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

• BLHeli_32 ESC Firmware Overview
• GitHub

• 1x Tekko32 F4 4in1 mini 45A ESC
• 4x M2 Anti-Vibration Silicone Grommet Insert
• 1x Electrolytic capacitor: 1000uF 35v
• 1x 8pin to 8pin 1mm pitch 65mm cable
• 1x 8pin to 8pin 1mm pitch 25mm cable
