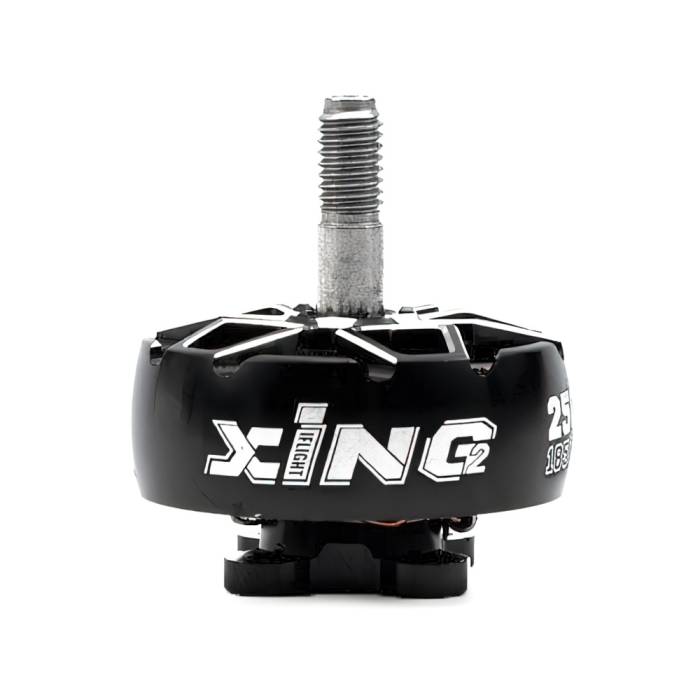

iFlight XING2 2506 1350KV/1650KV/1850KV Motor

iFlight XING2 2506 1350KV/1650KV/1850KV Motor

Select options for stock status

Only left for same day shipping. Order now!

Options

iFlight XING2 2506 1350KV/1650KV/1850KV Motor
The XING2 2506 Motors come from the XING series NextGen motors and have become a new standard on the market!

About this product

The XING2 2506 Motors come from the XING series NextGen motors and have become a new standard on the market!

iFlight is finally ready to announce our predecessor, the XING2! The smooth, reliable, and powerful XING motors with an upgraded and even higher standard of performance and manufacturer. The XING2 motors offer a faster response to translate your PID loop quicker and get that locked-in feeling you been looking for!

Features

  • 5mm titanium alloy shaft, our strongest prop shaft ever!
  • Crash resistant 7075 aluminum bell
  • Smooth and long-lasting NSK 9x9x4 bearings
  • Center slotted N52H curved arc magnets
  • XING O-ring bearing gap protection
  • Motor wires protector
  • Dynamically balanced

Specifications

  • KV: 1350/1650/1850
  • Configuration: 12N14P
  • Shaft Diameter: 5mm
  • Stator Diameter: 25mm
  • Stator length: 6.5mm
  • AWG: 18#
  • Internal Resistance: 60mΩ
  • Motor Dimensions (Dia.*Len): Φ31.8×19.7mm
  • Weight with wires(g): 38.7g
  • No.of Cells(Lipo): 3-6S
  • Max Continuous Power 180s: 1205W
  • Max Continuous Current 60s: 50.21A
  • Cable length: 200mm

Includes

  • 1 x XING2 2506 Motor
  • 6 x M3*8mm screws
  • 1 x M5 Flanged Nylon Insert Lock Nut

More Information

SKU 15987
Manufacturer iFlight
Popo Compatible No
Item Returns This item can be returned
