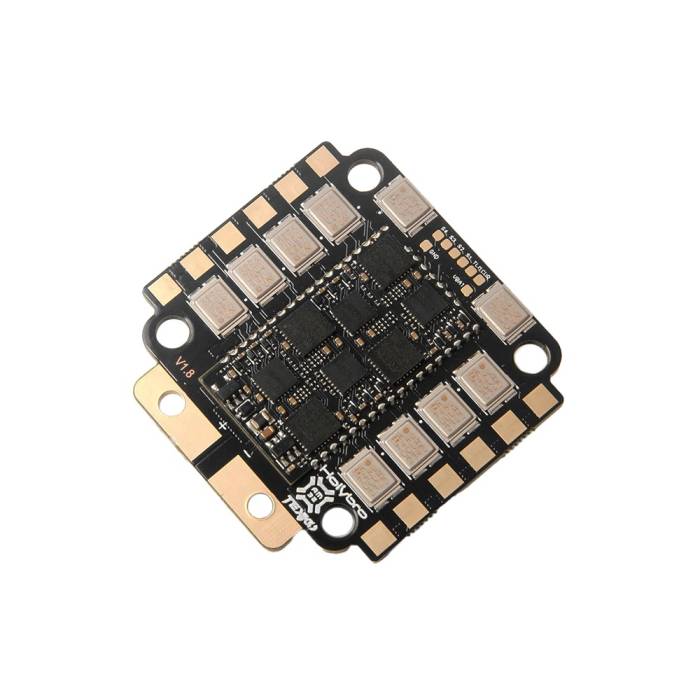

Holybro Tekko32 F4 Metal 65A AM32 4-in-1 ESC

The Holybro Tekko32 F4 Metal 65A AM32 is the first 4-in-1 ESC on the market to adapt the fast F4 MCU. Updated to run on open-source AM32 firmware, it offers enhanced control and quick response.

• New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
• PWM Frequency: 16k to 96k
• Metal-cased MOSFET for excellent heat dissipation
• Massive on-board capacitance for noise filtering at 2068uf
• 3 oz copper PCB design to allow bigger current and better heat dissipation
• Separate drive & control circuit broadens the current capability of the drive circuit while reducing electrical interference to the control circuit.

• Continuous Current: 65A x4
• Burst Current: 75A x4
• Supports 4-6S battery
• Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
• ESC telemetry supported
• Onboard analog current sensor
• No output BEC

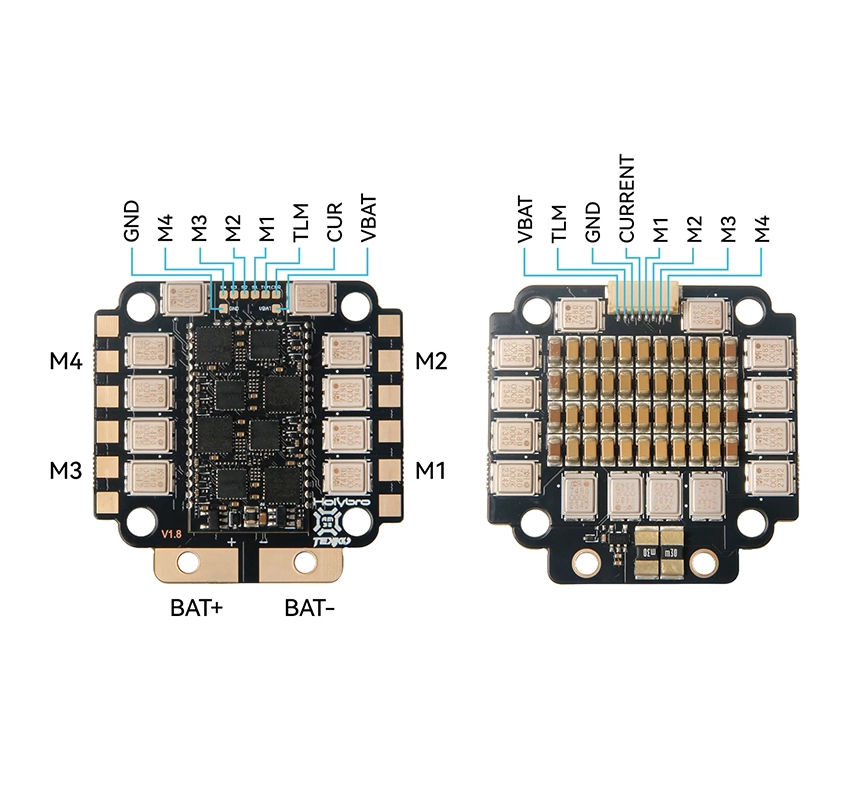

• AM32 firmware (target: AM32_TEKKO32_4IN1_F421)
• 1000uf 35v capacitor included (highly recommended for 6s setup)
• Amperage meter scale ratio: 180
• Dimensions: 43 x 44mm / Weight: 15.8g
• Mounting holes: M4 30.5x30.5mm (M3 grommets included)

IMPORTANT NOTES

• Airflow for the ESC is very important if you want to run this 4in1 in a high current. The battery wire (from Lipo to 4in1 ESC) should be at least 12AWG and well soldered.

• Tekko32 F4 Metal 4in1 ESC(65A) SPEC
• ESC Current Sensor Scale
• AM32 ESC Firmware Overview

• 1 x Tekko32 F4 Metal 4in1 65A ESC
• 4 x M3 Anti-Vibration Silicone Grommet Insert
• 1 x Electrolytic capacitor: 1000uF 35v
• 1 x 8-pin to 8-pin 1mm pitch 65mm cable
• 1 x 8-pin to 8-pin 1mm pitch 25mm cable
