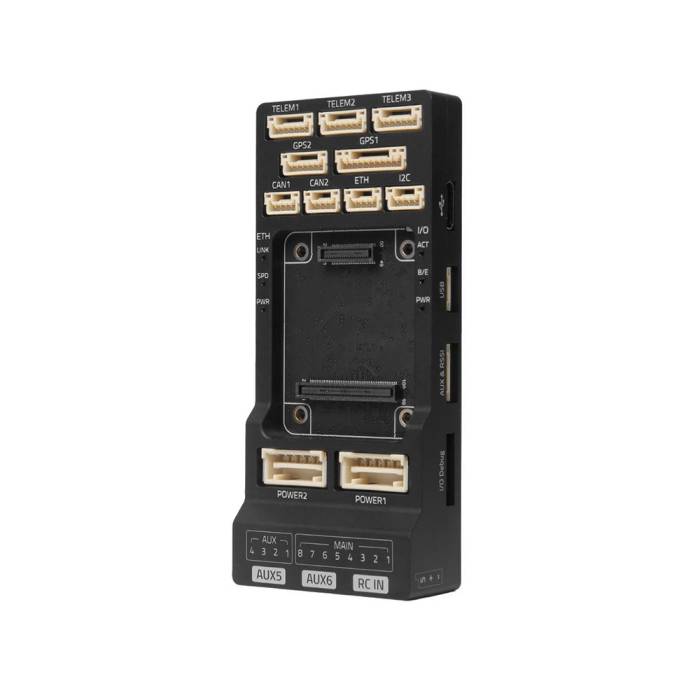

Holybro Pixhawk Standard Baseboard V2A

The Holybro Pixhawk Standard Baseboard V2A is an updated baseboard that can be used with Pixhawk 6X, 5X, and any flight controller that follows the Pixhawk Bus Standard. It features a smaller overall footprint than the V1 board, for easier integration into a variety of applications. An improved pin header housing and aluminum CNC outer case offer greater reliability and durability. A PWM level shifter has also been added to support switching of PWM output signal levels.

• Smaller and More Compact Design
• New Robust Pin Header Design
• PWM Level Shifter allows PWM output signal levels to be switched from 3.3V to 5V via a resistor or solder bridge.
• High-quality aluminum CNC outer case offers durability, efficient heat dissipation, corrosion resistance, aesthetic appeal, and EMI shielding.

• Dimensions: 95.3mm x 40.2mm
• Weight: 57.1g
• Ports:
  • 2x Power (main & backup)
  • 3x Telem
  • 2x GPS
  • 2x CAN
  • 1 xUART4 & I2C
  • 1x SPI
  • 1x USB
  • 1x I2C
  • 1x ETH
  • 1x AD & IO
  • 1x AUX & RSSI
  • 1x RC IN
  • 1x DSM RC
  • 1x FMU Debug
  • 1x I/O Debug

• Pixhawk Baseboard v2 Ports
• Pixhawk Baseboard Changelog

• 1x Holybro Pixhawk Standard Baseboard V2A
• 1x Standard Baseboard V2A Cable Set
