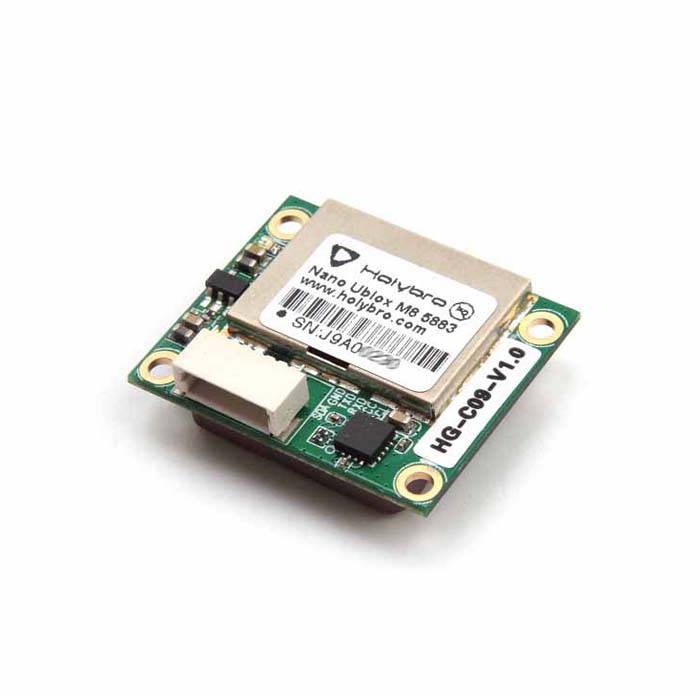

Holybro Nano Ublox M8 5883 GPS Module

The Holybro Nano Ublox M8 5883 GPS Module is equipped with UBX-M8030 high-performance,72 channels in Search mode, TCXO, LNA, SAW, RTC, up to 10 Hz navigation update rate, and supports GPS, QZSS, GLONASS, BDS, AGPS and is ready for Galileo.

Features

• UBX-M8030 high-performance GPS/GNSS Chips:
• Over 2 million effective correlators
• 72 channels in Search mode
• Cold start acquisition sensitivity of -148 dBm and -167 dBm tracking sensitivity
• Up to 10 Hz navigation update rate
• Supports GPS, QZSS, GLONASS, BDS and is ready for Galileo
• Supports AGPS
• Integrated TCXO, LNA, SAW, RTC
• Compact size (φ23.88mm x19.98mmx8.80mm±0.5mm ) suitable for space-sensitive application
• Weight 7.8 grams without TPU Protective Case Shell
• Support standard NMEA 0183, UBX
• This module is equipped with a QMC5883 compass

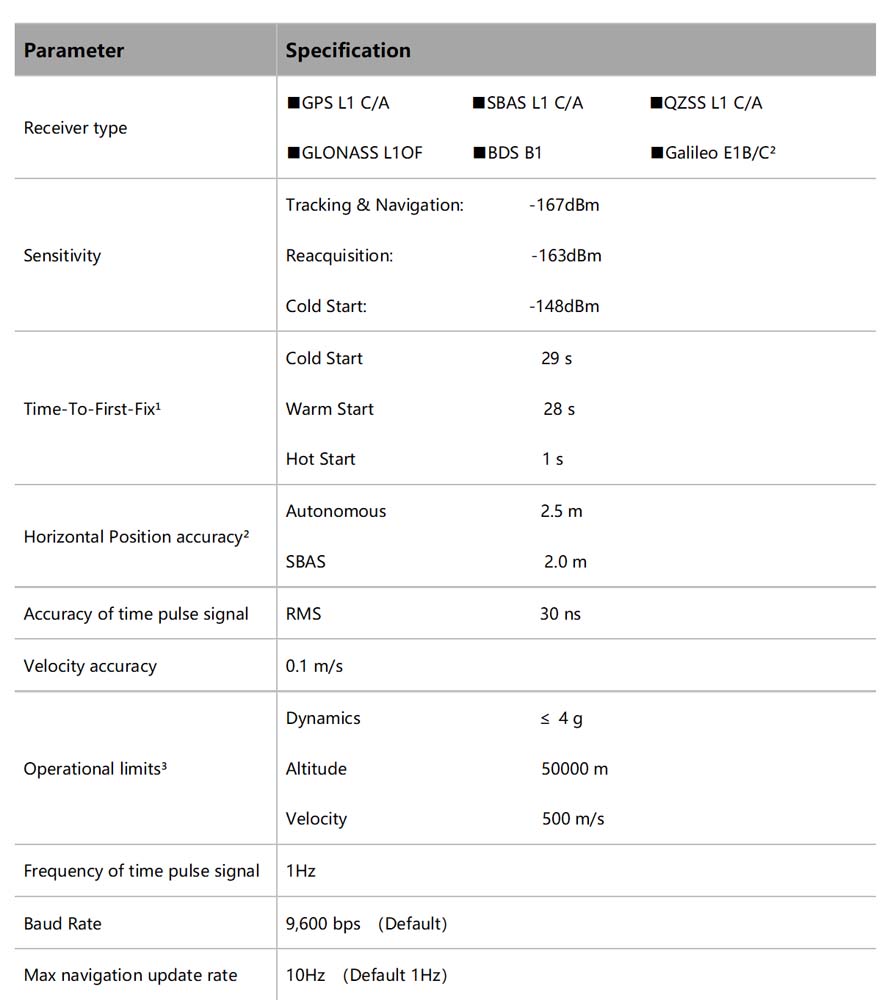

Specifications

A1 All satellites at -130 dBm
A2 CEP, 50%, 24 hours static, -130 dBm, > 6 SVs
A3 Assuming Airborne < 4g platform

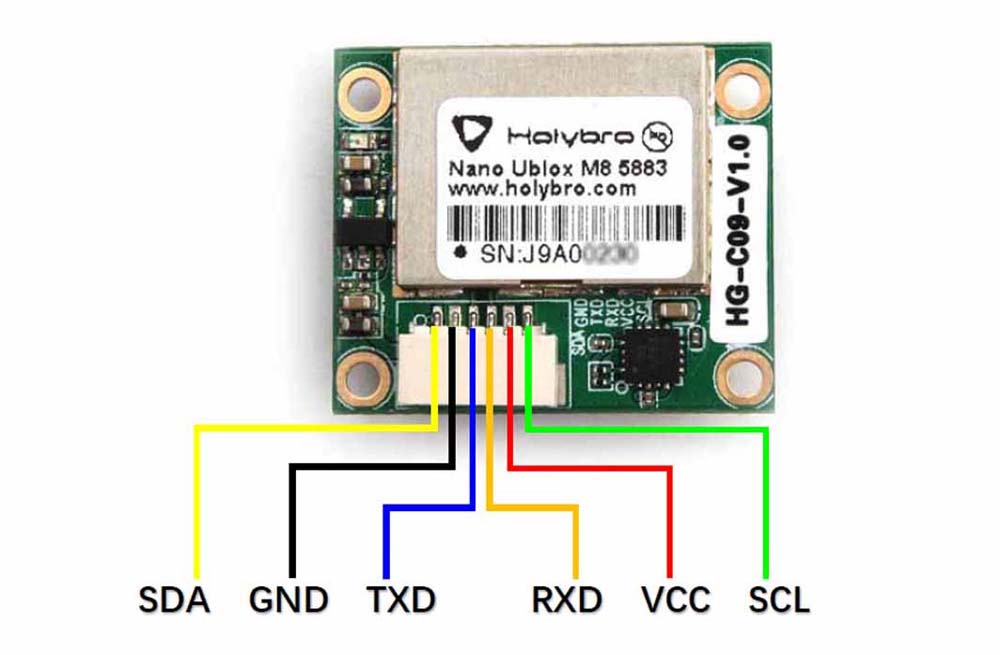

PINMAP

Includes

• 1 x Nano Ublox M8 5883 GPS Module
• 1 x JST 6P Cable
• 1 x TPU Protective Case Shell

Download

• Nano_Ublox_M8_5883_GPS_Datasheet
