NewBeeDrone Cricket200 45A 3-6s BLHeli_32 4-in-1 20x20 ESC
$109.00
Out of Stock
Only left for same day shipping. Order now!
NewBeeDrone Cricket200 45A 3-6s BLHeli_32 4-in-1 20x20 ESC

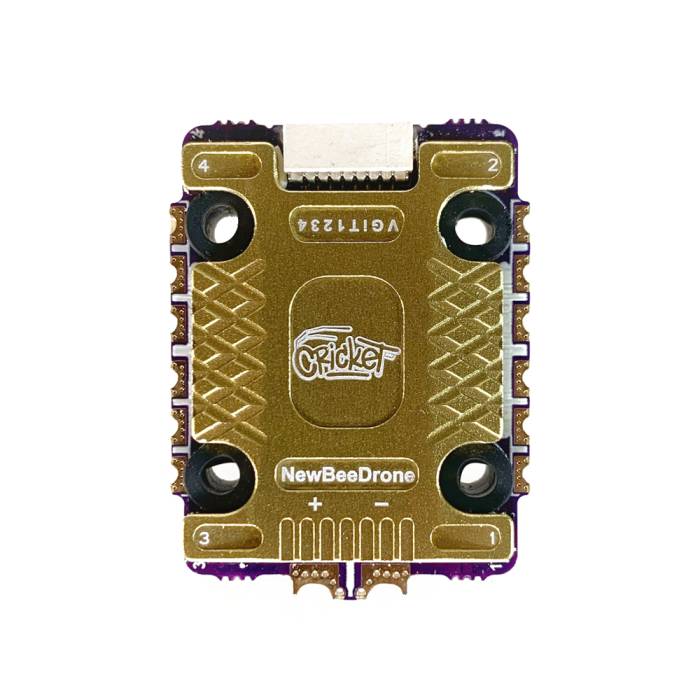

This NewBeeDrone Cricket200 ESC has a golden heatsink design, Smoov-Certified hardware, and comes ready to plug into your NBD Cricket200 Flight Controller.
About this product
This NewBeeDrone Cricket200 ESC has a golden heatsink design, Smoov-Certified hardware, and comes ready to plug into your NBD Cricket200 Flight Controller.
This 20x20 ESC is a great choice for both freestyle or racing.
Features
- NewBeeDrone Smoov-Certified Hardware
- Cricket Logo'd Heatsink

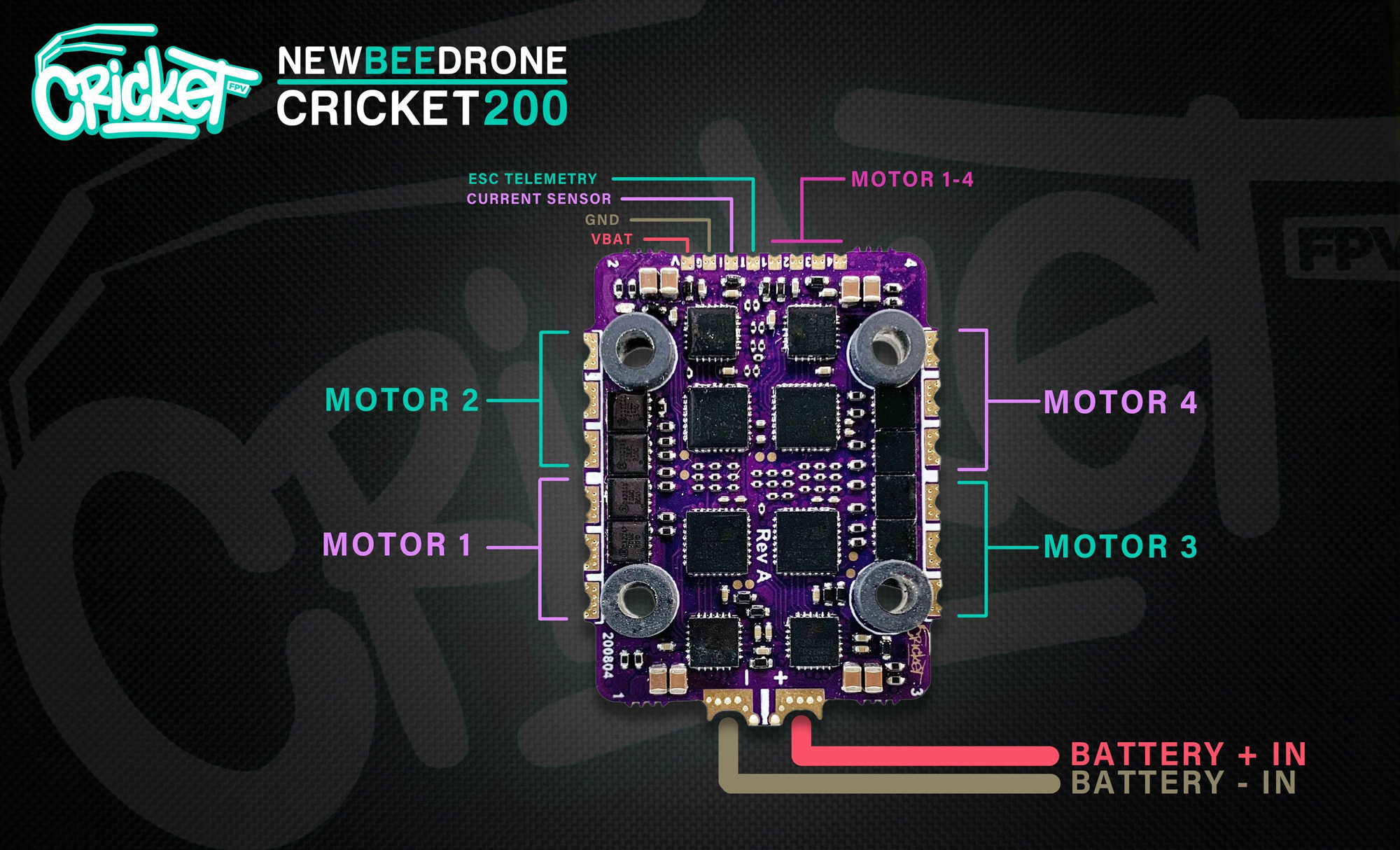

- Solder pad ready for signal and power
Specifications
- LiPo Power input: 3S-6S
- ESC Programming: BLHeli32
- Cont.Current: 45Ax4
- Burst Current: 55Ax4
- Weight / Size: 13.0g / 39x29.5x8mm
- Mounting holes: 20x20mm

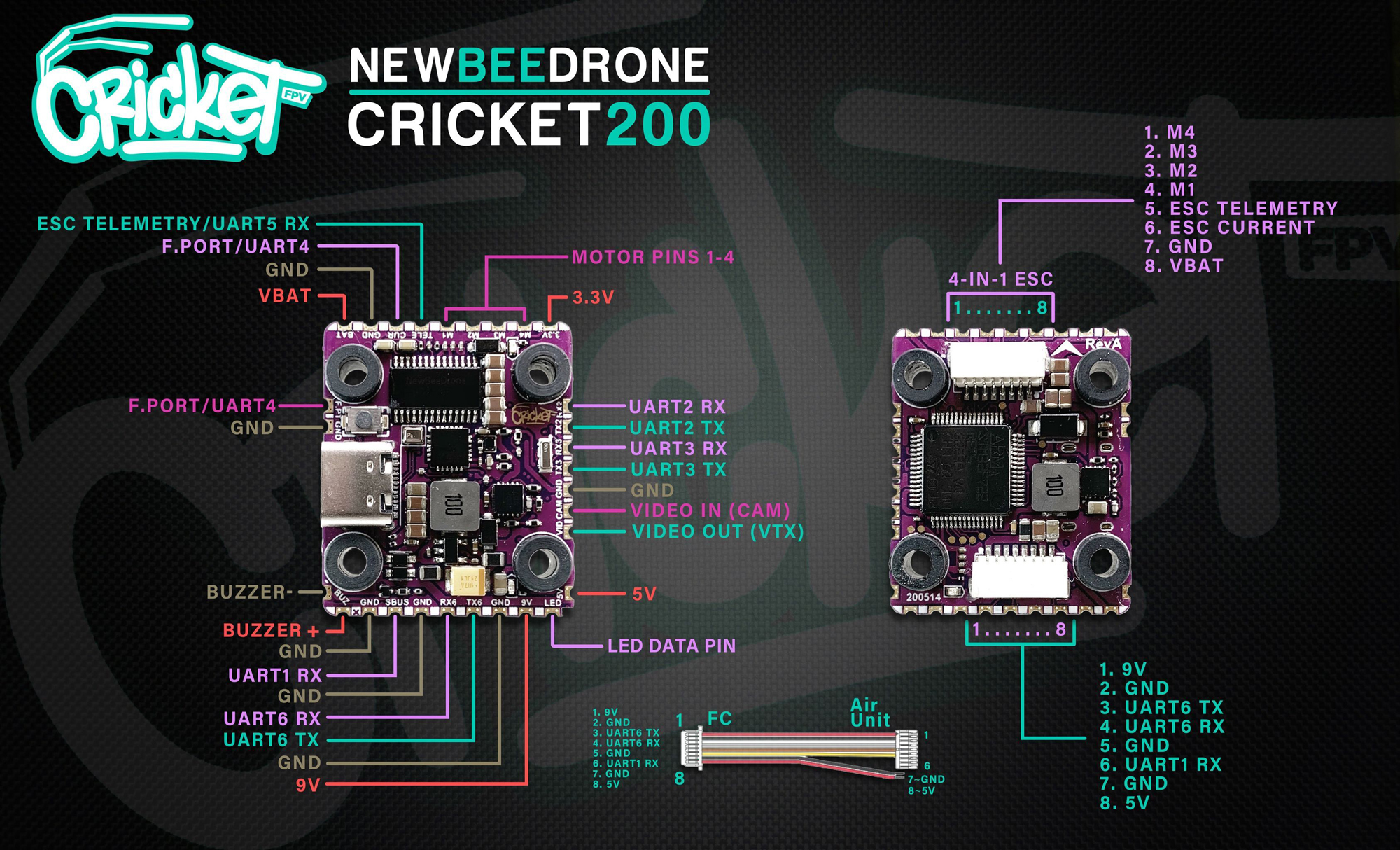

- Signal plug JST1.0 8pin plug with NBD Cricket200FC
- Solder pad ready for signal and power
- Heatsink design
- 8 Layer PCB with 2Oz Copper
- Smoov performance design by Team NBD
Includes
- 1x Cricket200 4 in 1 ESC BLHeli32 45A
- 4x Short Grommets & 4x Long Grommets
- 5x Steel Screw 25mm
- 13x Nylon Nuts
- 1x Cricket200 FC to Cricket200 ESC cable 30mm
- 1x Cricket200 FC to Cricket200 ESC cable 50mm
- 1x Cricket200 FC to Cricket200 ESC cable 85mm
- 470uf 35v Electrolytic capacitor
More Information
| SKU | 15418 |
|---|---|
| UPC (GTIN) | 751313222237 |
| Manufacturer | NewBeeDrone |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 20x20mm |
| Amps | 45 Amps |
| Voltage | 3-6S |
| Number of ESC's | 4 ESC's in 1 |
