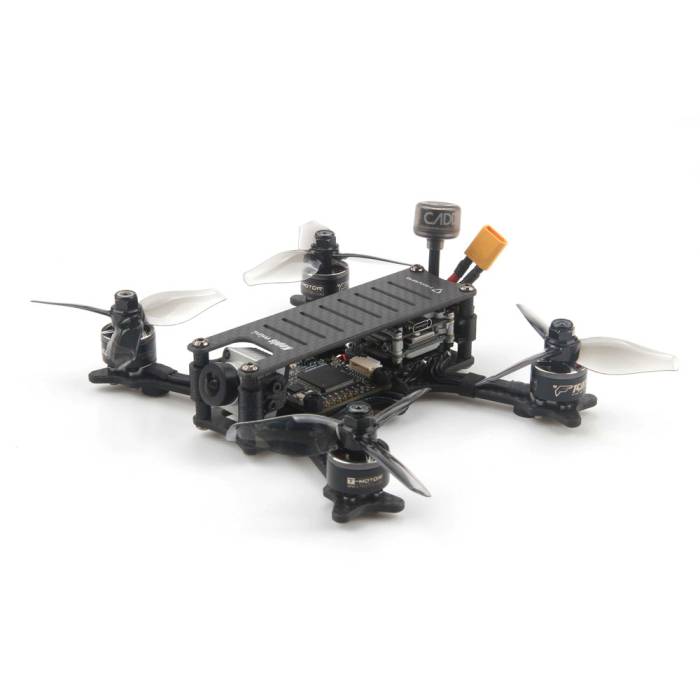

Holybro Kopis Mini 3" Drone w/ Caddx Vista HD System

This Holybro Kopis Mini 3" Drone comes with high-quality components from Holybro, Caddx, and T-Motor! The Kopis Mini is a high-performance 3" ducted RTF that features the Caddx Vista Digital HD System.

Features

• MCU: STM32F745 32-bit processor
• IMU: MPU6000 (SPI)
• Barometer: BMP280
• USB VCP Driver (all UARTs usable simultaneously; USB does not take up a UART)
• 6 hardware UARTS (UART1,2,3,4,6,7)
• All UARTS support hardware inversion. SBUS, SmartPort, and other inverted protocols work on any UART without “uninvert hack”.
• Supports serial receivers (SBUS, iBus, Spektrum, Crossfire) only. PPM and PWM receivers are not supported.
• TF card for Blackbox logging

Specifications

• Frame:3mm 3k carbon fiber
• Flight Controller: Kakute F7 HDV
• ESC: Tekko32 F3 4in1 45A mini ESC
• VTx: Caddx Vista Digital HD System for DJI HD FPV
• Motor：F1507 KV3800(Standard)
• Propeller：T3140
• Buzzer included.
• Battery plug: XT30
• Wheelbase: 148.6mm
• Weight:198g（included CADDX Vista）
• Recommend battery: 650mah~1300mah 4s

3D Print

Holybro_Kopis-mini_3D_Print.rar

Includes

• 1 x Kopis Mini Drone
• 1 x Caddx Vista Digital HD System for DJI HD FPV
• 4 x T3140 Propeller
• 1 x Carrying case
• 1 x Battery strap(installed)

Manual

• Holybro_Kopis-mini(CADDX FPV version)_Manual
