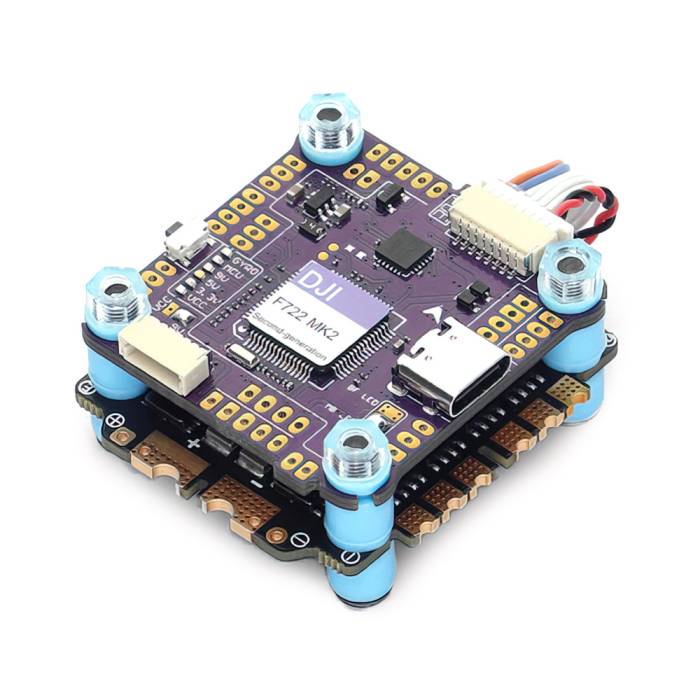

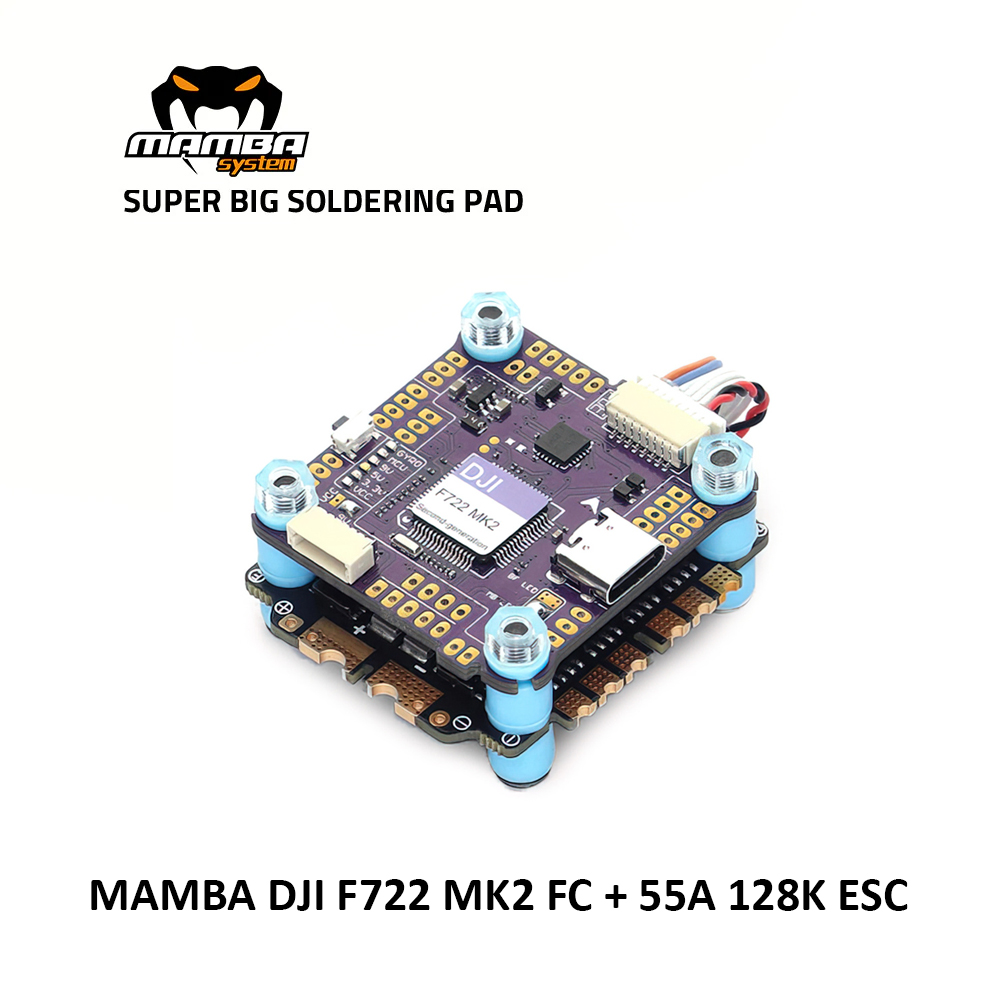

Diatone Mamba Stack - DJI F722 MK2 FC + F55 55A 128K ESC

This Diatone Mamba Stack features a powerful DJI F722 MK2 Flight Controller and a 55A 128K ESC. The flight controller is suitable with the DJI FPV System and equipped with 216MHz STM32F722RET6 MCU, 6 UARTS, MPU6000, Dshot300/600/1200, BEC, and other cool features!

Features

• Suitable with the DJI FPV System
• Mamba DJI F722 Flight Controller
• 216MHz STM32F722RET6 MCU
• Dshot300/600/1200
• F55 55A 128K ESC
• MPU6000
• 6 UARTS
• BEC

Specifications

MAMBA DJI F722 MK2 FLIGHT CONTROLLER

• LED Controller:BF LED/MB LED (4 Set 2812 LED)

• BEC:3.3V 0.5A & 5V 3A & (DJI) 9V 3A
• MCU: 216MHz STM32F722RET6
• Input: 3~6S Lipo (12.6~25.2V)
• ESC Soft: Dshot300/600/1200
• Blackbox: 16M Flash Memory
• Mounting 30.5mm,M3
• ESC Telemetry: Yes
• TVS Protection: Yes
• GYRO: MPU6000
• Power Led: Yes
• Barometer: Yes
• UARTS: 6Set
• F.Port: Yes
• RSSI: Yes
• Buzz: Yes
• OSD: Yes

Note: To prevent the FC from overheating due to the STM32F722, please allow at least 5mm space on both sides of the FC (with nothing covered) to allow good air circulation.

MAMBA F55 55A 128K ESC

• INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
• Target：BLHeli_32 MAMBA F55_128K
• MOUNTING: 30.5x30.5mm ,M3/M2
• CONTINUE CURRENT: 55A×4
• BURST CURRENT: 60A (10S)
• SOFT: Dshot300/600/1200
• TVS Protection: Yes
• BEC: No

Includes

• 1x Diatone Mamba Stack - DJI F722 MK2 + F55 55A 128K ESC
• 1x AMASS Original XT60
• 2x 12AWG 100mm Cable
• 1x 470uF/35V Capacitor
• 60x Hard Dampers
• 40x Soft Dampers
• 1x Hardware Kit
• 2x 8pin sh1.0
