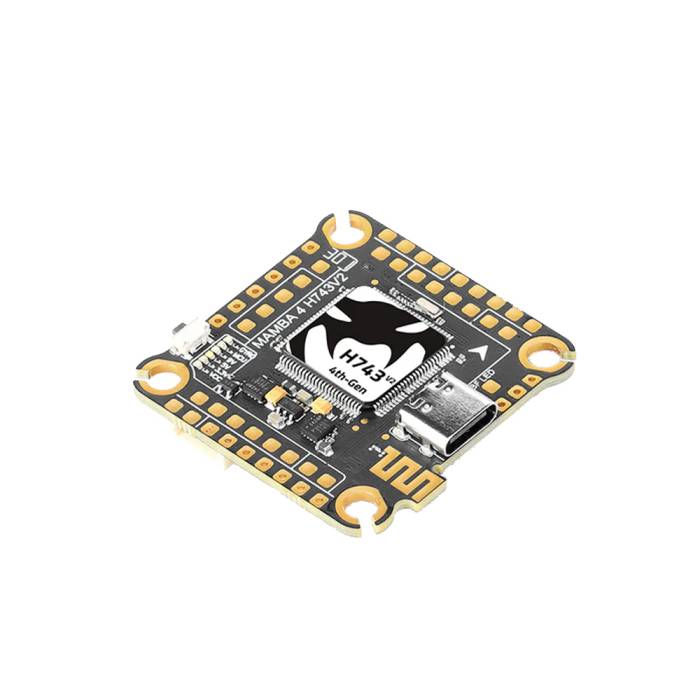

Diatone Mamba MK4 H743 V2 Flight Controller - Dual ICM42688-P

The Diatone MK4 H743 V2 FC represents a culmination of Diatone's commitment to excellence in FPV components, delivering a flight controller powered by the robust 480MHz STM32H743 MCU and dual ICM-42688-P gyro system.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

• Driven by a high-performance 480MHz STM32H743 MCU.
• Utilizes a dual ICM-42688-P gyro system for unparalleled stability.
• Features 128M Flash Memory Blackbox.
• Has an integrated SPL06 barometer.
• Supports up to 8 UARTs, offering extensive interfacing capabilities.
• Comprehensive ESC support, including Dshot300/600/1200 and telemetry.
• Multiple BEC outputs: 3.3V 0.5A, 5V 3A, and 9V 3A.
• Compatible with 3~6S Lipo input.
• Standard 30.5mm/M3 mounting.
• Advanced features like the SpeedyBee APP WIFI, VTX Switch, and BF LED/MB LED controllers.
• Prioritizes safety with features like receiver and TVS protection.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• MCU: 480MHz STM32H743
• GYRO: DUAL ICM-42688-P
• Target：MAMBA H743_2022B
• OSD: Yes
• Blackbox: 128M Flash Memory
• Barometer: SPL06
• Uarts: 8Set
• I2C: Yes
• F.Port: Yes
• RSSI: No
• Buzzer Pad: Yes
• CURR Pad: Yes
• ESC Signal: 8 Set
• ESC Soft: Dshot300/600/1200
• ESC Telemetry: Yes
• Power Led: Yes
• LED Controller: BF LED/MB LED
• AIR UNIT Port: Yes
• WIFI: SpeedyBee APP
• VTX Switch: Yes
• Receiver Protection: Yes
• TVS Protection: Yes
• BEC:3.3V 0.5A& 5V 3A& 9V 3A
• Input: 3~6S Lipo (12.6~25.2V)
• Mounting size: 30.5mm/M3

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

•   (Insert links such as manuals, firmware, etc)

• 1x Diatone MK4 H743 V2 Flight Controller
