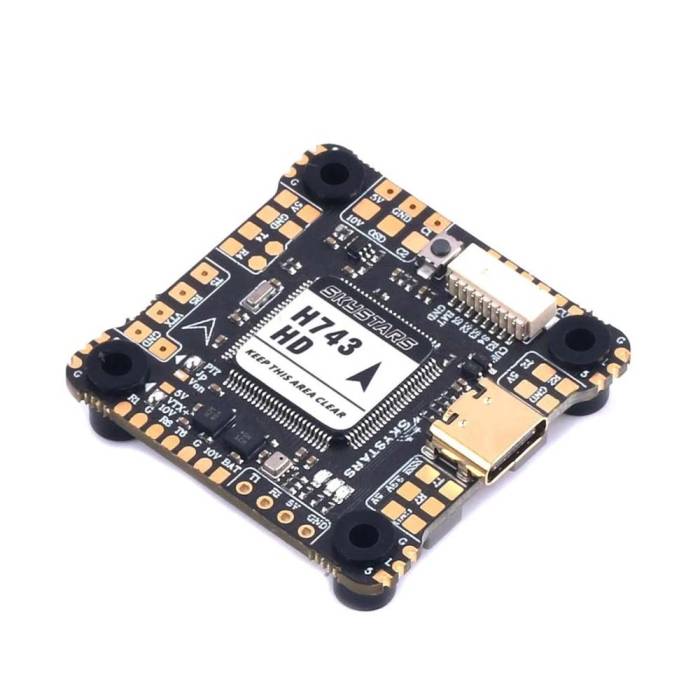

Skystars H743 HD Flight Controller - 30x30 - Single Gyro

Skystars H743 HD Flight Controller - 30x30 - Single Gyro

In Stock

Only left for same day shipping. Order now!
Skystars H743 HD Flight Controller - 30x30 - Single Gyro
The Skystars H743 HD Single Gyro Flight Controller is a future-proof FC with X8 support, OSD, BMI270 gyro, BMP280 barometer, 16M Blackbox, 8 UARTS, and more!

About this product

The Skystars H7 Single Gyro Flight Controller is a future-proof FC with X8 support, OSD, BMI270 gyro, BMP280 barometer, 16M Blackbox, 8 UARTS, and more!

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

Features

  • X8 support
  • OSD, BMI270 gyro
  • MCU running at 480MHz

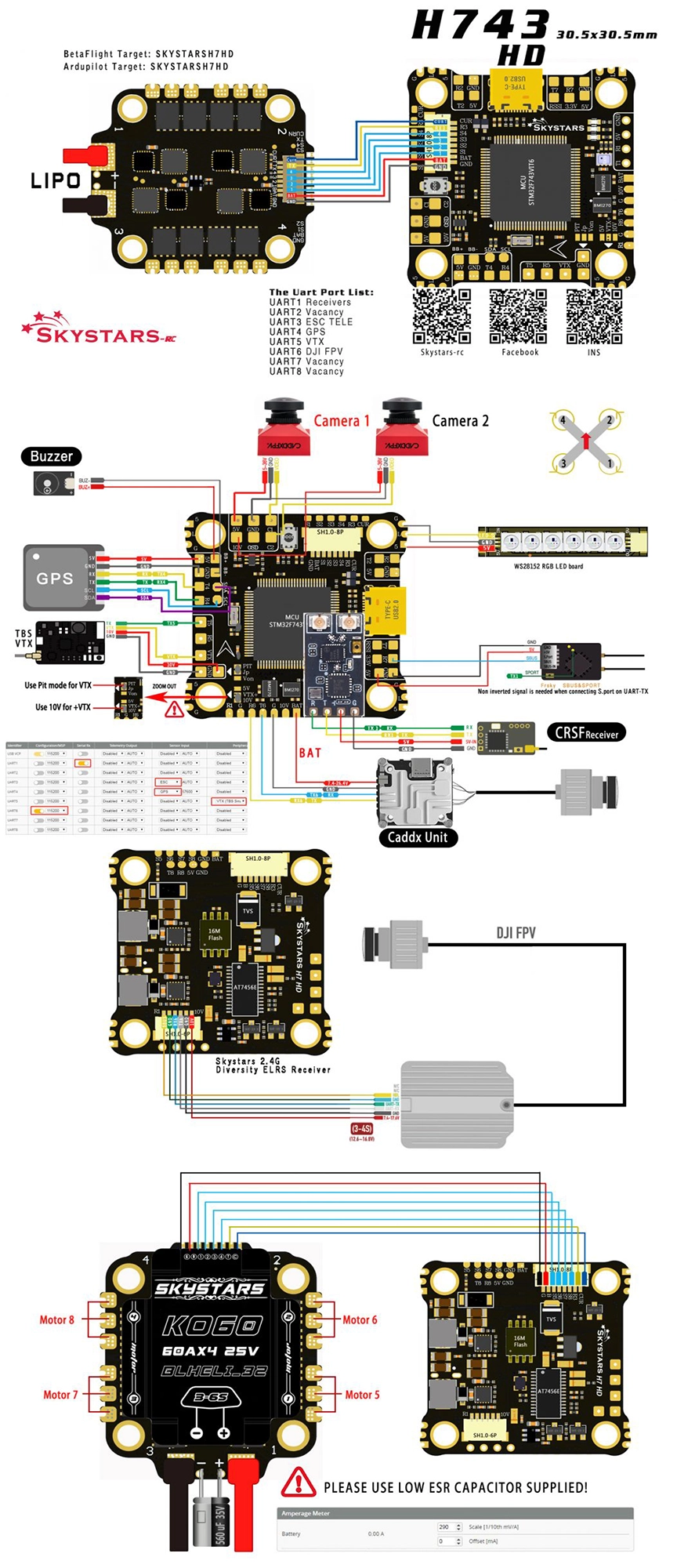

Skystars Fly Stack - H743 HD FC + KO60 60A BLHeli_32 4-in-1 ESC - 30x30 (Single Gyro)

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

Specifications

  • MCU: STM32H743VIT6, 480MHz, 1MB RAM, 2MB Flash
  • Gyro: BMI270
  • Baro: BMP280
  • OSD: AT7456E
  • Blackbox: 16M
  • 8x Uarts (1,2,3,4,6,7,8) with built-in inversion.
  • 8x PWM outputs
  • 1x I2C
  • 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)
  • USB Type-C(USB2.0)
  • 2x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)
  • 1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)
  • Dual Camera Inputs switch
  • VTX 10V/Vbat filtered power ON/OFF switch
  • DJI FPV OSD is supported by any spare UART
  • Vbat Input: 7~25V (2~6S LiPo)
  • BEC: 5V 2A Continuous (Max 3A)
    LDO 3.3V: Max 250mA
  • Firmware: Betaflight - SKYSTARSH7HD
  • Mounting: 30.5 x 30.5mm
  • Dimensions: 39.5 x 39.5 x 7.8 mm
  • Weight: 10.1g

IMPORTANT NOTES

  • Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

Recommended (Not Included)

Links

  •   (Insert links such as manuals, firmware, etc)

Includes

  • 1x Skystars H743 HD Flight Controller - 30x30 - Single Gyro
  • 1x Accessories Pack

Featured Videos

ADD VIDEO TITLE HERE IN BOLD CAPS

ADD VIDEO TITLE HERE IN BOLD CAPS

More Information

SKU 19727
Manufacturer SkyStars
Mounting Pattern 30.5x30.5mm (Mini)
UPC (GTIN) 724376345793
Item Returns This item can be returned
