Diatone Mamba DJI F722 MK2 Flight Controller

The Diatone Mamba DJI F722 MK2 Flight Controller is a powerful FC that is suitable with the DJI FPV System and is equipped with 216MHz STM32F722RET6 MCU, 6 UARTS, MPU6000, Dshot300/600/1200, BEC, and other cool features!

Note: To prevent the FC from overheating due to the STM32F722, please allow at least 5mm space on both sides of the FC (with nothing covered) to allow good air circulation.

Specifications

• MCU: 216MHz STM32F722RET6
• GYRO: MPU6000
• Barometer: Yes
• OSD: Yes
• Blackbox: 16M Flash Memory
• UARTS: 6Set
• ESC Soft: Dshot300/600/1200
• ESC Telemetry: Yes
• Power Led: Yes
• LED Controller:BF LED/MB LED（ 4 Set 2812 LED）
• F.Port: Yes
• RSSI: Yes
• Buzz: Yes
• Input: 3~6S Lipo (12.6~25.2V)
• TVS Protection: Yes
• BEC:3.3V 0.5A& 5V 3A & （DJI）9V 3A
• Mounting 30.5mm,M3

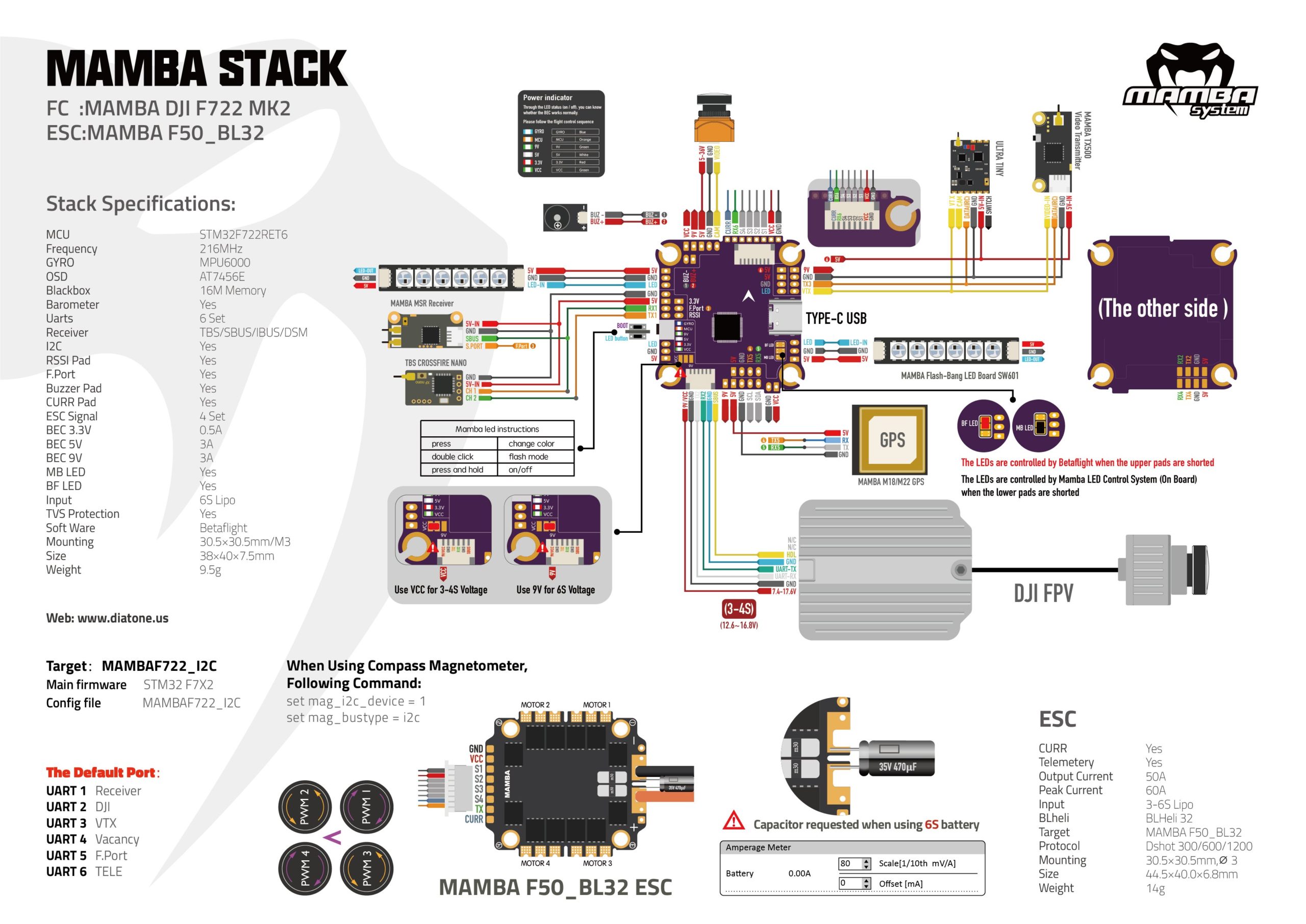

Diagram

Includes

• 1 x Diatone Mamba DJI F722 MK2 Flight Controller
