Diatone Mamba DJI F405 MK2 Flight Controller
$50.99
Out of Stock
Only left for same day shipping. Order now!
Diatone Mamba DJI F405 MK2 Flight Controller
The Diatone Mamba DJI F405 MK2 Flight Controller supports connecting to the DJI FPV System without soldering. It's also equipped with168MHz STM32F405RGT6 MCU, MPU6000 Gyro, six UARTS, Dshot300/600/1200, and many other cool features!
About this product
The Diatone Mamba DJI F405 MK2 Flight Controller supports connecting to the DJI FPV System without soldering. It's also equipped with168MHz STM32F405RGT6 MCU, MPU6000 Gyro, six UARTS, Dshot300/600/1200, and many other cool features!
Specifications
- MCU: 168MHz STM32F405RGT6
- GYRO: MPU6000
- Barometer: Yes
- OSD: Yes
- Blackbox: 16M Flash Memory
- UARTS: 6Set
- ESC Soft: Dshot300/600/1200
- ESC Telemetry: Yes
- Power Led: Yes
- LED Controller: BF LED/MB LED（ 4 Set 2812 LED）
- F.Port: Yes
- RSSI: Yes
- Buzz: Yes
- Input: 3~6S Lipo (12.6~25.2V)
- TVS Protection: Yes
- BEC:3.3V 0.5A& 5V 3A &（DJI） 9V 3A
- Mounting: 30.5mm, M3

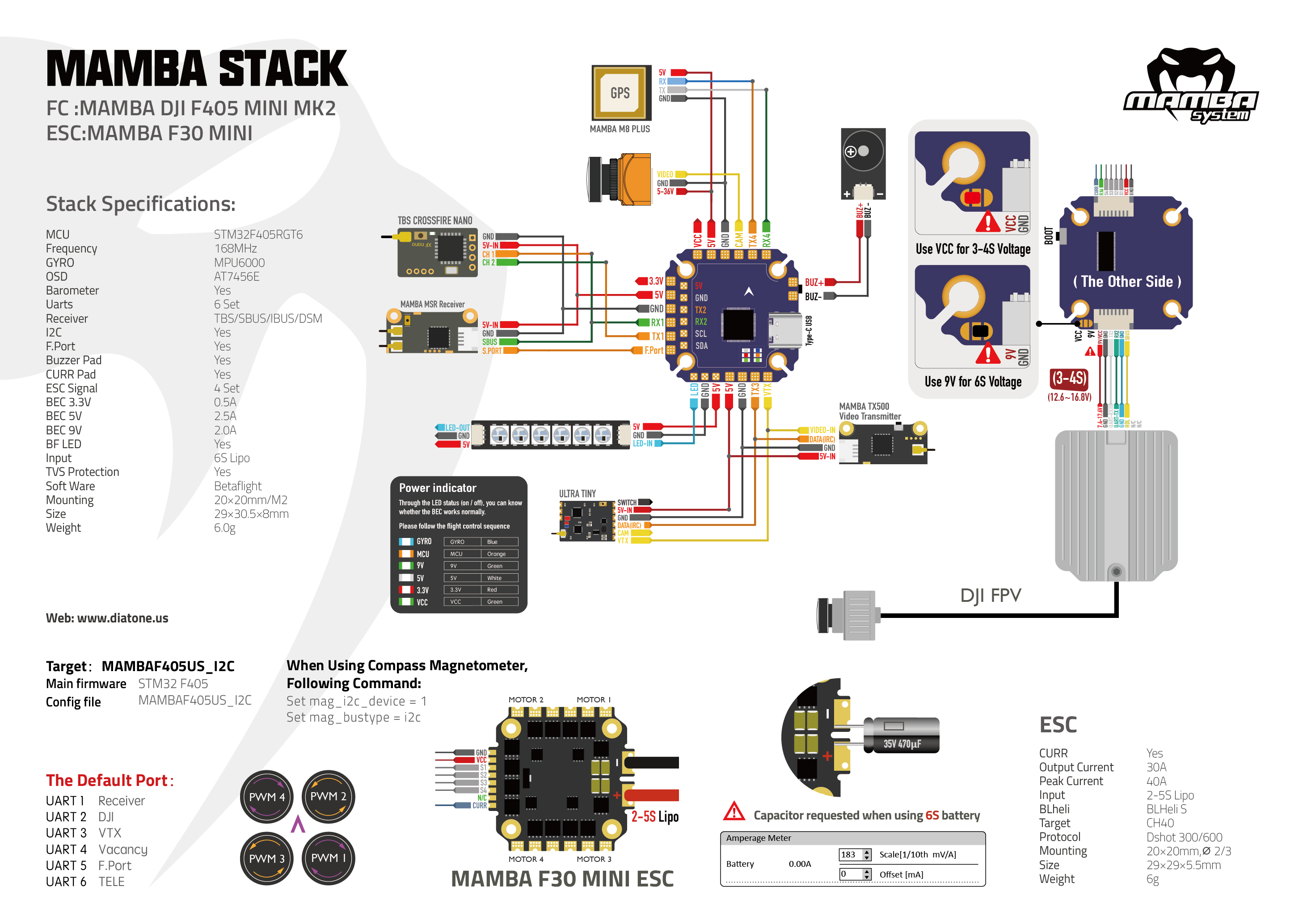

Diagram
Includes
- 1 x Diatone Mamba DJI F405 MK2 Flight Controller
More Information
| SKU | 16409 |
|---|---|
| UPC (GTIN) | 764613336351 |
| Manufacturer | Diatone |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 30.5x30.5mm |
| Flight Controller Processor | F4 |
