Axisflying iStack - F722 DJI FC + 50A 128K PWM ESC - Mini 20x20 (Plug and Play)
$148.99
Out of Stock
Only left for same day shipping. Order now!
Axisflying iStack - F722 DJI FC + 50A 128K PWM ESC - Mini 20x20 (Plug and Play)
The Axisflying iStack features an F722 Flight Controller that is plug-and-play compatible for both Analog and HD and connects easily to a DJI FPV Air Unit! The 50A ESC works on a 128K PWM frequency.
About this product

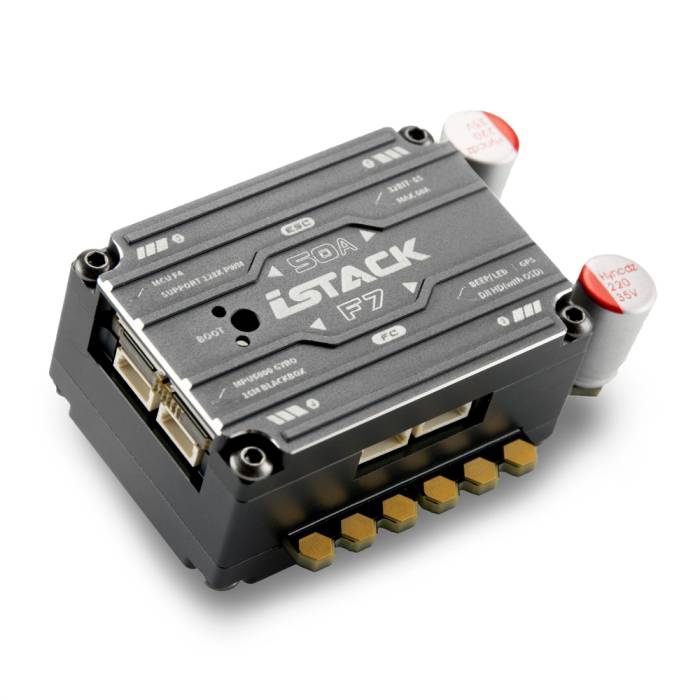

The Axisflying iStack features an F722 Flight Controller that is plug-and-play compatible for both Analog and HD and connects easily to a DJI FPV Air Unit! The 50A ESC works on a 128K PWM frequency. This stack has a 20x20 mounting pattern and features an MPU6000 Gyro, QMP6988 Barometer, 5V 3A BEC, and a solid aluminum casing with double solid electrolyte capacitors.
Features
- 16MB (128Mbit) BlackBox Flash
- DJI FPV Air Unit Compatible
- 128K PWM Frequency
- Works with iStack
- Aluminum Casing
- MPU6000 Gyro
- F722 Processor
- Plug and Play
- 50A ESC
Specifications
- ESC: 50A (Continuous) / 60A (Burst) BLHeli_32
- Dimensions: 50.9x23.1x38mm
- Mounting Pattern: 20x20mm
- ESC Sensor: Supported
- PWM Frequency: 128K
- Target: AXISFLYING F7
- HD-Analog: Supported
- X8 PWM: Supported
- LED-Bz: Supported
- MCU: STM32 F722
- Input Voltage: 2-6S
- GPS: Supported
- Blackbox: 16MB
- Gyro: MPU6000
- Baro: QMP6988
- BEC: 5V@3A
- Plug & Play
- UARTS: 6
Includes
- 1x Axisflying iStack - F722 DJI FC + 50A 128K PWM ESC - Mini 20x20 (Plug and Play)
- 1x XT60 Connector to 12AWG Bare Wire
- 2x 220 35V Capacitors
- 5x Connecting Wires
- 1x Hardware Set
More Information
| SKU | 17790 |
|---|---|
| UPC (GTIN) | 764613342444 |
| Manufacturer | Axisflying |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 20x20mm |
| Amps | 50 Amps |
| Flight Controller Processor | F7 |
| Voltage | 2-6 Cell (7.4v-22.2v) |
| ESC Firmware | BLHeli_32 128K |
| Number of ESC's | 4 ESC's in 1 |
