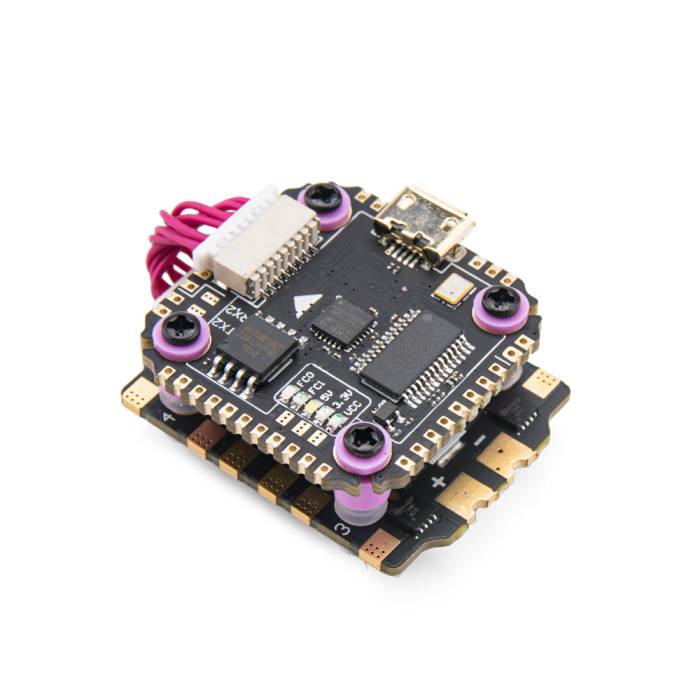

Diatone Mamba F722S 20x20 Mini Stack - 306 30A Dshot1200 6S ESC

Diatone Mamba F722S 20x20 Mini Stack - 306 30A Dshot1200 6S ESC

Diatone Mamba F722S 20x20 Mini Stack - 306 30A Dshot1200 6S ESC
Diatone's Mamba series gives racers an edge in competition. The latest F7 processing technology with rock-solid power from the ESC means you can focus on flying, not on the limits of your equipment.

About this product

Note: The STM32F722 generates much heat, please leave at least 5mm on both sides of the FC to give good air circulation.

Diatone's Mamba series gives racers an edge in competition. The latest F7 processing technology with rock-solid power from the ESC means you can focus on flying, not on the limits of your equipment, even in a 20x20 stack.

With a wide range of setup options and features, you can configure your stack however you'd like.

30x30 version here.

Specifications

F722 Mini Flight Controller

  • MCU: 216MHz STM32F722RET6 32BIT
  • IMU: MPU6000
  • Baro: No
  • OSD: Betaflight
  • Blackbox: 16M Flash Memory
  • Uarts: 6Set
  • ESC Protocol: Dshot300/600/1200
  • ESC Telemetry: RX2
  • LED: Blue&Orange for FC Status, White 5V, Red 3.3V
  • WS2812 LED Control: BF LED Control
  • Smartaudio: Yes
  • RSSI: Yes
  • Buzz: Yes
  • Input: 2~6S Lipo (8.4~25V)
  • VTS Protection: Yes
  • BEC: 5V 2A (Max 3A)
  • Weight: 11g

ESC

  • Input Voltage: 2-6S Lipo (8.4V-25V)
  • Continuous Current: 30A×4
  • Current: 30Ax4
  • Curr: Yes
  • Burst Current: 35A (10sec)
  • BEC: No
  • Protocol: Dshot300/600/1200
  • Mounting: 20mm/M2
  • Supply: Panasonic High-Frequency 470uF/35V

Other

Physical

  • Mounting: 20×20mm, Φ2
  • Dimensions: 30 x 36.5 x 11mm
  • Weight: 11g total

Includes

  • 1x Diatone Mamba F722 Mini 20x20 Flight Controller
  • 1x Diatone Mamba 306 2-6S 30A 20x20 4in1 ESC
  • 1x Panasonic High-Frequency 470uF/35V Capacitor
  • 1x Protective Top Plate
  • 1x XT60 Connector
  • 2x 4in1 ESC Connector Cable
  • 4x Spare Stack Bolts
  • 12x O-Ring Dampeners

More Information

SKU 10576
Manufacturer Diatone
Mounting Pattern 20x20mm (Micro)
UPC (GTIN) 082652057137
