Diatone Mamba F722 Mini MK2 Stack - F40 Mini Pro 40A 3-6S BLHELI-32 4-in-1 ESC

More Views

Diatone Mamba F722 Mini MK2 Stack - F40 Mini Pro 40A 3-6S BLHELI-32 4-in-1 ESC
The Mamba F722S Mini MK2 + F40 Mini Pro Stack from Diatone brings BIG power all in a 30.5x30.5 mounting size! This stack can push 40A all while bringing you the latest features!
Backorder
$79.99
OR
Description

The Mamba F722S Mini MK2 + F40 Mini Pro Stack from Diatone brings BIG power all in a tiny 20x20 mounting size! This stack can push 40A all while bringing you the latest features with MAMBA performance!

Specifications

Diatone Mamba F722 Mini MK2 FC

  • MCU: 216MHz STM32F722RET6 32BIT
  • IMU: MPU6000
  • Baro: No
  • OSD: BF OSD
  • Blackbox: 16M Flash Memory
  • Uarts: 6Set
  • ESC Soft: Dshot300/600/1200
  • ESC Telemetry: RX2
  • LED: Blue&Orange for FC Status, White 5V, Red 3.3V
  • WS2812 LED Control: BF LED Control
  • Smart audio: Yes
  • RSSI: Yes
  • Buzz: Yes
  • Input: 2~6S Lipo (8.4~25V)
  • VTS Protection: Yes
  • BEC: 5V 2A (Max 3A)

F40 Mini Pro ESC

  • Input voltage: 3-6S LIPO (12.5- 25V)
  • Burst Curr:40X4 A
  • MAX:45A(10S)
  • BEC: NO
  • Mounting Size: 20mm/M2/M3
  • Size:31×31×6.5mm

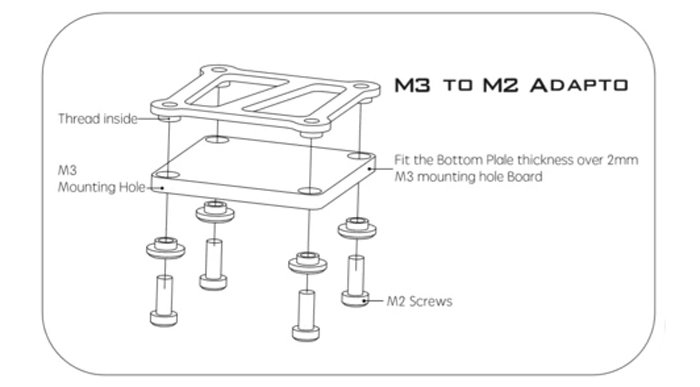

  • Mounting Hole: M2 M3
  • Weight: 7g

Firmware Target: MAMBA F722

Includes

  • 1 x Mamba F722 Mini MK2 Betaflight Flight Controller
  • 1 x Mamba F40 MINI PRO 6S HV ESC
Additional Information
SKU 14561
Manufacturer Diatone
UPC (GTIN) 751313218858
