The Diatone Mamba F722 Mini MK3 Basic Stack Pro (BLHeli_32) brings BIG power all in a 20x20 mounting size! This stack can push 40A all while bringing you the latest features!
About this product
The Diatone Mamba F722 Mini MK3 Basic Stack Pro (BLHeli_32) brings BIG power all in a 20x20 mounting size! This stack can push 40A all while bringing you the latest features!
Features
- Gyro uses an independent Low Dropout Regulator (Low Dropout Regulator) and reduces ripple interference
- Self-recovery insurance to the receiver's 5V power supply
- LED signal selection (when Mamba Led sys avaiable)
- Increased camera VCC power supply pad
- TVS instant high voltage protection 30V
- BEC short circuit protection
- Super Size Soldering Pad
- Increased pad area
Updates
- When you connect the USB, the receiver and OSD settings can be saved
- The pad area of the Mini flight controller (20×20) increased by 140%
- Upgraded anti-interference cable
- Added I2C function
- Use TypeC

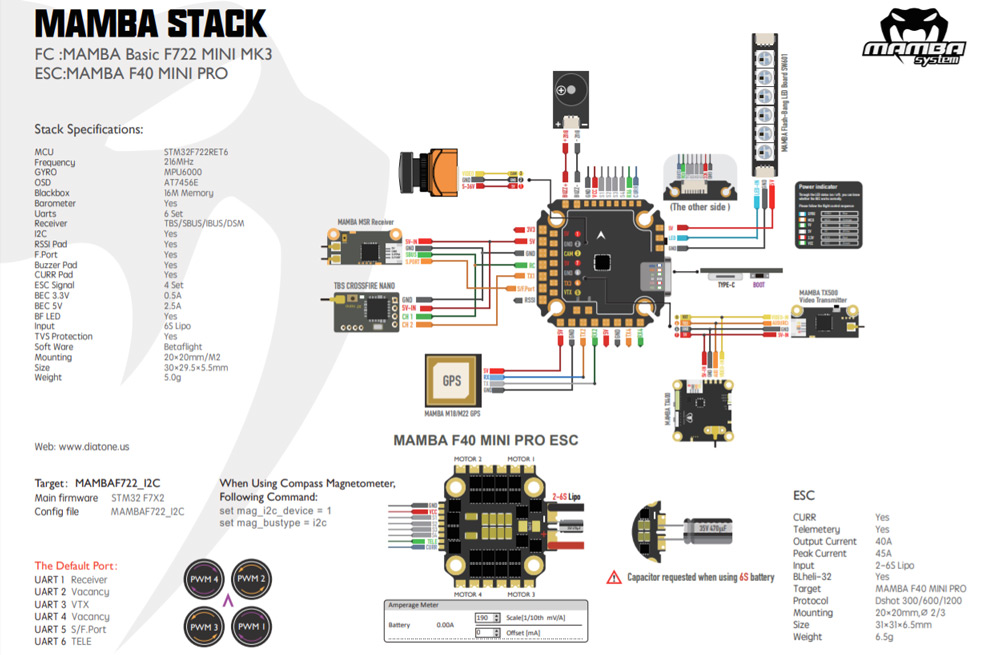

Specifications
MAMBA Basic F722 MINI MK3 FC
- MCU: 216MHz STM32F722RET6
- Blackbox: 16M Flash Memory
- Input: 2~6S Lipo (8.4~25.2V)
- BEC:3.3V 0.5A& 5V 2.5A
- ESC Soft: Dshot300/600
- MOUNTING: 20mm, M2
- LED Controller: BF LED
- TVS Protection: Yes
- ESC Telemetry: Yes
- GYRO: MPU6000
- Power Led: Yes
- Barometer: Yes
- S/F.Port: Yes
- Uarts: 6 Set
- RSSI: Yes
- Buzz: Yes
- OSD: Yes
MAMBA F40 MINI PRO ESC (BLHeli_32)
- INPUT VOLTAGE: 2~6S Lipo (8.4V~25.2V)
- CONTINUE CURRENT: 40A×4
- BURST CURRENT: 45A (10S)
- Target: MAMBA F40MINIPRO
- MOUNTING: 20mm, M3/M2
- SOFT: Dshot300/600/1200
- TVS Protection: Yes
- BEC: No
Includes
- 1x Diatone Mamba Basic Stack F722 Mini MK3 FC 40A Pro (BLHeli_32)
- 1x AMASS Original XT60
- 2x 16AWG 60mm Cable
- 1x Mounting Adapter
- 60x Hard Dampers
- 40x Soft Dampers
- 1x Hardware Kit
- 2x 8pin sh1.0
- 1x Capacitor
- 1x DJI 8 Pin
More Information
SKU | 17008 |
---|---|
UPC (GTIN) | 764613337945 |
Manufacturer | Diatone |
NDAA Compliant | No |
Mounting Pattern | 20x20mm |
