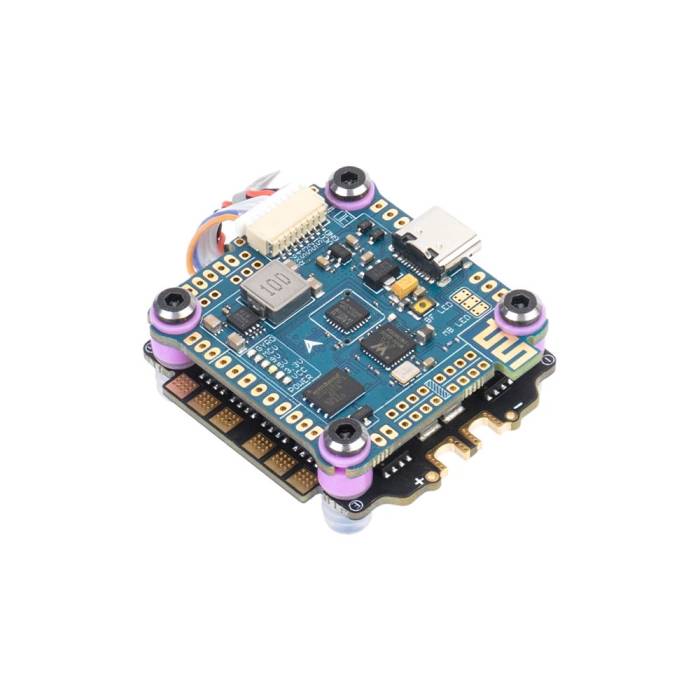

Diatone Mamba F722 APP, F50PRO 3-6S ESC Stack

Diatone Mamba F722 APP, F50PRO 3-6S ESC Stack

Diatone Mamba F722 APP, F50PRO 3-6S ESC Stack
Diatone's Mamba series gives racers an edge in competition. The latest F7 processing technology with rock-solid power from the ESC means you can focus on flying, not on the limits of your equipment.

About this product

Diatone's Mamba series gives racers an edge in competition. The latest F7 processing technology with rock-solid power from the ESC means you can focus on flying, not on the limits of your equipment.

F722 APP Update Details

  • BT to WiFi
  • USB power supply can use receiver, OSD
  • Add a group of I2C pads (SCL SDA)
  • Add inverter Dual-Way TX serial port
  • Add 2812 LED switch function, key can turn off led
  • Add 4 corner LED interface to support BF led and Mamba led
  • Upgrade to stronger type-C, optimize pad position

About WIFI APP

With a wide range of setup options and features, you can configure your stack however you'd like. It even has a dedicated LED controller and broken out LED pads for easy hookup. (LEDs not included)

Note: The STM32F722S generates much heat, please leave at least 5mm on both sides of the FC to give good air circulation.

Specifications

FC Specifications

  • MCU: 216MHz STM32F722RET6 32BIT
  • IMU: MPU6000
  • Barometer: No
  • OSD: BF OSD
  • Blacbox: 16M Flash Memory
  • Uarts: 6Set
  • ESC Soft: Dshot300/600/1200
  • ESC Telemetry: RX6
  • LED indicator: Blue&Orange for FC Status,Green 9V,White 5V,Red 3.3V

LED Controller:BF LED/MB LED (4 Set 2812 LED)

  • WIFI: SpeedyBee APP
  • Smartaudio: Yes
  • Buzz: Yes
  • Input: 3~6S Lipo (12.6~25V)
  • TVS Protection: Yes

BEC: 5V 2.5A & 9V 2A (Max 3A)

  • MOUNTING: 30.5mm/M3 WEIGHT: 9g
  • Supply :
  • 8pin sh1.0 *1
  • Smartaudio: Yes
  • Buzz: Yes
  • Input: 3~6S Lipo (12.6~25V)
  • VTS Protection: Yes

ESC Specifications

  • INPUT VOLTAGE: 3~6S Lipo (12.6V~25V)
  • CONTINUE CURRENT: 50A×4
  • BURST CURRENT: 60A (10S)
  • BEC: NO
  • ESC Dshot300/600/1200
  • MOUNTING: 30.5mm/M3
  • Supply: Panasonic High-Frequency 470uF/35V
  • Mounting: 30.5×30.5mm, Φ3
  • Dimensions:
  • Weight: 22g

Includes

  • 1x Diatone Mamba F722 APP WIFI F50PRO Stack

More Information

SKU 10574
Manufacturer Diatone
UPC (GTIN) 082652057120
