The Diatone Mamba APP F722 MK1 FC 50A Stack brings BIG power all in a 30.5x30.5 mounting size! This stack can push 50A all while bringing you the latest features, including WiFi capabilities with the SpeedyBee App! This is the 32-bit version.

Features

• Built-In WiFi with the SpeedyBee App

Specifications

MAMBA APP F722 MK1 FC

• LED indicator: Blue&Orange for FC Status, Green 9V, White 5V, Red 3.3V
• LED Controller: BF LED/MB LED (4 Set 2812 LED)
• MCU: 216MHz STM32F722RET6 32BIT
• BEC: 5V 2.5A & 9V 2A (Max 3A)
• ESC Soft: Dshot300/600/1200
• Blackbox: 16M Flash Memory
• Input: 3~6S Lipo (12.6~25V)
• MOUNTING: 30.5mm/M3
• WIFI: SpeedyBee APP
• ESC Telemetry: RX6
• TVS Protection: Yes
• Smart audio: Yes
• IMU: MPU6000
• Barometer: No
• OSD: BF OSD
• WEIGHT: 9g
• Uarts: 6Set
• Buzz: Yes

F50 50A 3-6S 4-in-1 ESC

• Supply: Panasonic High-Frequency 470uF/35V
• INPUT VOLTAGE: 3~6S Lipo (12.6V~25V)
• CONTINUE CURRENT: 50A×4
• BURST CURRENT: 60A (10S)
• Mounting: 30.5×30.5mm, M3
• ESC Dshot300/600/1200
• Weight: 22g
• BEC: NO

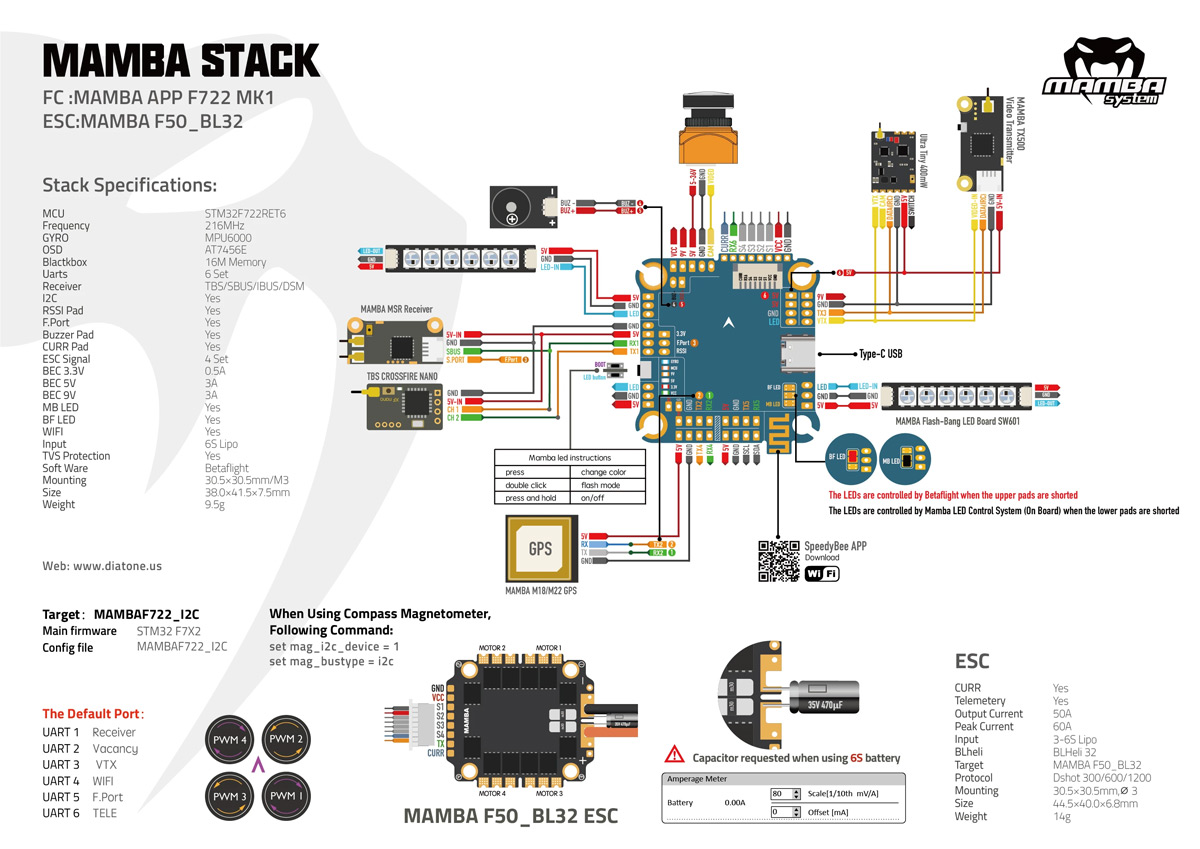

Diagram

Includes

• 1x Diatone Mamba Stack - APP (WIFI) F722 MK1 FC + F50 50A BLHeli_32 ESC
• 1x AMASS Original XT60
• 2x 12AWG 100mm Cable
• 1x Mounting Adapter
• 60x Hard Dampers
• 40x Soft Dampers
• 1x Hardware Kit
• 2x 8pin sh1.0
• 1x Capacitor
