Caddx Nebula Nano V2 Digital FPV Camera Kit - (Black/Silver)

Caddx Nebula Nano V2 Digital FPV Camera Kit - (Black/Silver)

Select options for stock status

Only left for same day shipping. Order now!
Caddx Nebula Nano V2 Digital FPV Camera Kit - (Black/Silver)

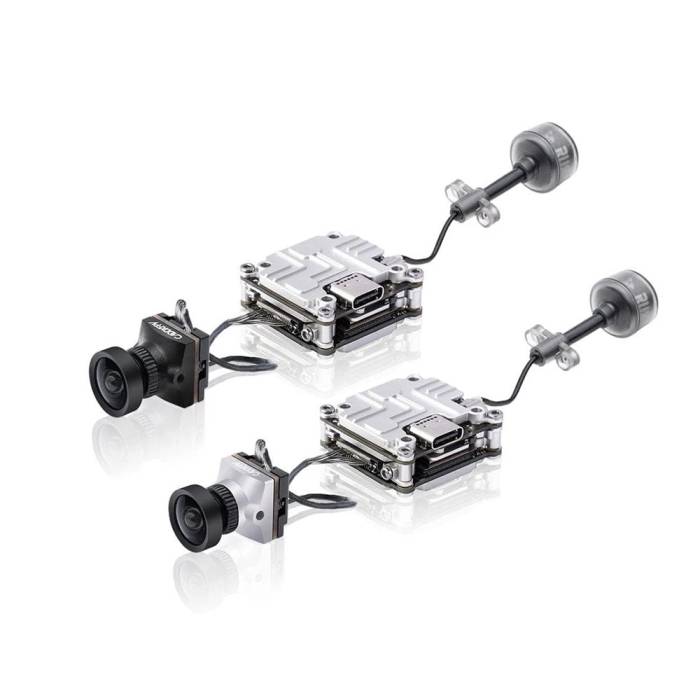

The Caddx Nebula Nano V2 Digital FPV Camera Kit is an advanced video transmission module that supports a 5.8GHz digital video signal and 720p 60fps image transmission.

About this product

The Caddx Nebula Nano V2 Digital FPV Camera Kit is another advanced video transmission module by Caddx and fully authorized by DJI that supports a 5.8GHz digital video signal and 720p 60fps image transmission. The Caddx Nebula Nano V2 is designed for small drones, and weights as low as 24g (excluding antenna). It can be used with DJI FPV Goggles, which provide 720p / 60fps digital high-definition picture and a transmission range up to 4km. The Vista system allows up to eight drones to fly simultaneously. Each operator has an exclusive channel, which helps reduce cross-interference and provides an optimal racing experience.

User can wirelessly connect their Vista Kit to the DJI FPV Remote Controller and DJI FPV Goggles without having to purchase additional receivers, as well mount on racing drones!

Features

  • Lightweight digital image transmission combination
  • Stable and clear HD video
  • 720p 60fps, 32ms/4km
  • 8 channels, 8 drones
  • Embedded Remote Controller Receiver

Specifications

  • Model: Vista Kit
  • Weight: Vista KIT(camera included):24g/Antenna:2.5g
  • Dimensions:
  • Vista Kit: 30x29x13mm
  • Camera: 14x14x21mm
  • Coaxial Cable:80mm/120mm
  • Operating Frequency: 5.725-5.850GHz
  • Transmitter Power(EIRP): FCC/SRRC/MIC: <30dBm, CE: <14dBm
  • Min. Latency (end-to-end):720p 60fps: 32ms
  • Max. Transmission Distance: FCC/SRRC: 4km, CE: 0.7km
  • I/O Interface: USB-C,IPEX,3-in-1 Port
  • Supported Flight Control System: F3,F4,F7
  • Operating Temperature Range: 32° to 104° F (0℃ ~40℃)
  • Input Power: 7.4-26.4V
  • Power output: 25mW/200mW/500mW/700mW
  • Hardware included:Vista/Nebula nano/Coaxial cable/Antenna
  • Goggles: work with DJI goggles
  • Camera:Sensor: 1/3''CMOS
  • Lens: 2.1mm,f/2.1
  • Shutter: Rolling shutter
  • FOV: 150°[D],122°[H],93°[V]

Includes

  • 1 x Caddx Nebula Nano V2 Digital FPV Camera Kit

More Information

SKU 13239
Manufacturer Caddx
Item Returns This item can be returned
