BetaFPV ExpressLRS Recovery Dongle
In Stock
About this product

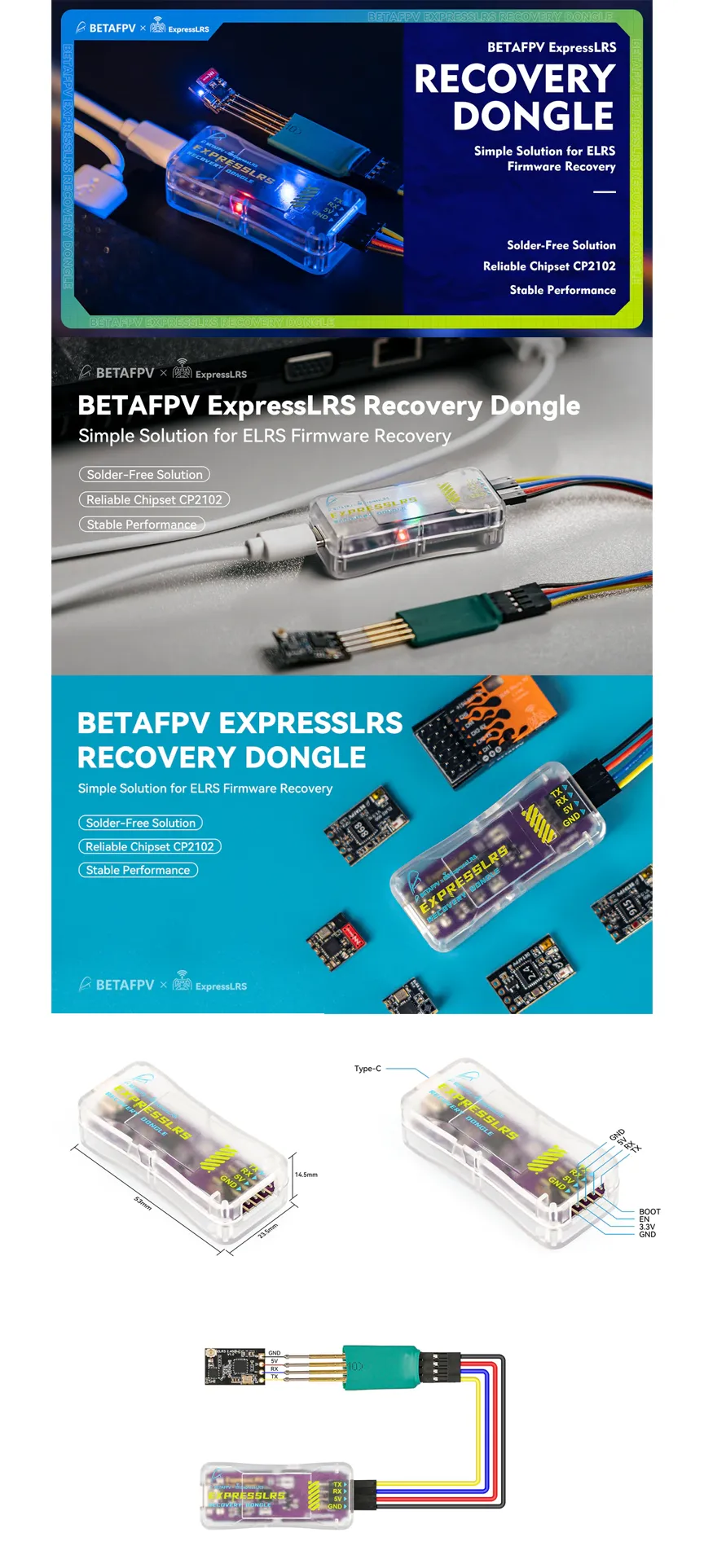

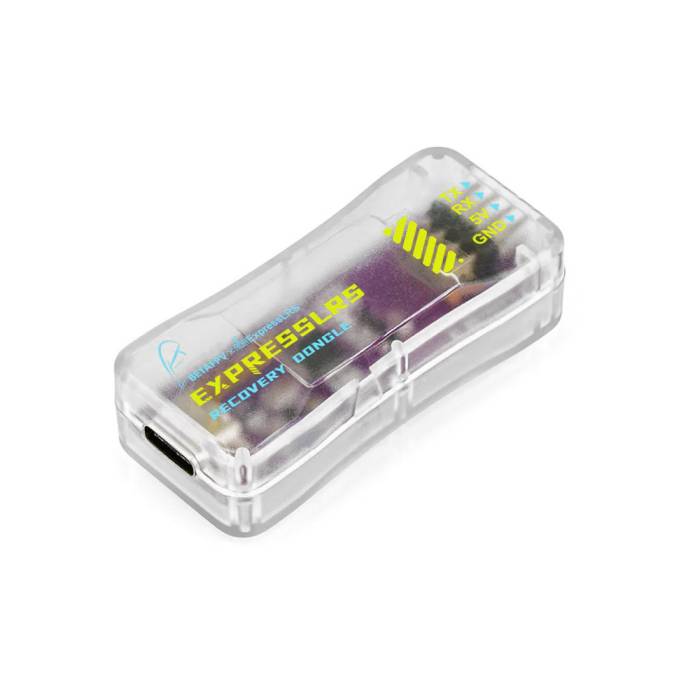

The ExpressLRS Recovery Dongle is an FTDI USB to TTL module based on the CP2102 bridge controller, which is applied to the firmware upgrade for the ESP32&ESP8XX chip. The ExpressLRS Recovery Dongle is compatible with many ELRS receivers in the market, such as ELRS Lite Receiver, ELRS Nano Receiver, ELRS Micro Receiver, and FPV goggles backpack. It will be a good choice to unbrick the ELRS receiver when the UART fails to update or flash the firmware.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO:
Features
- Firmware Upgrade Compatibility
- Broad ELRS Compatibility
- FTDI USB to TTL Module
- User-Friendly Design
- Unbricking Solution


USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- USB to Serial Chip (CP2102): Supports Windows XP, Windows 7/8/10/11 (32-bit and 64-bit), Linux, and Mac
- Pin Output Method: 2*4P-2.54mm pin header
- USB Interface: Type-C USB male connector
- 3.3V Power Supply Output Current: 400mA
- Serial Baud Rate: Up to 921600 bps
- USB Support: USB 1.1, USB 2.0
- Operating Voltage: 5V
- Logic Voltage: 5V
IMPORTANT NOTES
- Note: This purchase does not include the Type-C USB cable. Please make sure you have one available.
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x BetaFPV ExpressLRS Recovery Dongle
- 1x Probe Converter Board
- 1x 4Pin Cable
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 22722 |
|---|---|
| UPC (GTIN) | 728314137013 |
| Manufacturer | BETAFPV |
| Country of Manufacture | China |
| NDAA Compliant | No |
