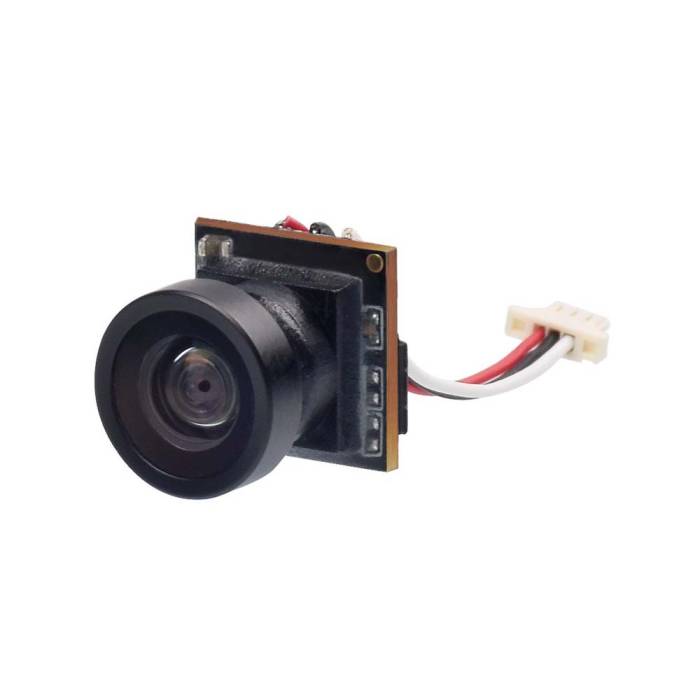

The BETAFPV C01 Micro Camera is a lightweight camera that is made to fit weight-sensitive micro whoop drones, like the Meteor65, Beta65S, Beta85 Pro 2, and the HX100SE Toothpick Quadcopter! The C01 Micro Camera features an adapted 1/4'' CMOS sensor, a 2.1mm lens with 800TVL resolution, and excellent latency while minimizing the weight to 1.4g.
This micro camera comes with a micro canopy to protect your camera from a harsh crash.
C01 camera features a JST0.8 connector, special design in plug-and-play, makes it easy to install without soldering. Suitable for BeeBrain flight controllers.
- Miniature, and lightweight design, weight at only 1.4g. Best match with 5.8G A01 VTX on micro whoop drone.
- 800TVL resolution and 1/4" CMOS sensor ensure a high-quality and clear image
- Global WDR camera, 4:3 aspect ratio, shoot clear dynamic image even in low light condition
- 2.1mm lens, FOV 160° beyond the wide-angle for recording more wide and beautiful scenes
- The package comes with an injection molding canopy, more durable, which is the best combo with C01 cam
- Item: C01 Camera
- Image Sensor: 1/4" CMOS Sensor
- Horizontal: 800TVL with Global WDR
- Signal System: NTSC
- Lens : 2.1mm(M8) FOV 160°
- S/N Ratio: >50db
- Electronic Shutter Speed: Auto
- Auto Gain Control (AGC): Auto
- Min. Illumination: 0.01Lux@1.2F
- D-WDR: Auto
- Day/Night: Color
- Power: DC 3-5.5V
- Current: 110mA@5V / 120mA@3.3V
- Housing Material: ABS
- Dimension: 11*11mm
- Net weight: 1.4g
- 1 x C01 FPV Micro Camera
- 1 x Injection Molded Canopy
- 1 x 1/4'' Camera Mounting hardware
- Additional Information
SKU 15611 Manufacturer BETAFPV UPC (GTIN) 751313222442
