This Beta75X frame is a custom 75mm 2S whoop drone. This frame natively supports 110x motors. Also, it has a customized battery slot to support a 2S battery. The FC mounting columns still match the whoop style FC boards. It is durable, yet at the same time, light enough for a to let those 2S batteries shine and makes this whoop a beast!
In default, the battery slot is designed for 2S 300mAh battery. If already have many 1S whoop style batteries and want to use them on this frame, what shall we do? As shown below, with the help of form adapter, 2pcs 300mAh Lipo HV 1S whoop style batteries are inserted in the slot suitably.
Don't forget to get a double PH-JST 2.0 connector power cable here if you will be pairing your 1S batteries.
- Propellers: 40mm 4-blade props (1.5mm shaft hole)
- Motors: 110x brushless motors, like 1103 11000KV motors
- Batteries: 300mAh 2S Lipo HV batteries
- FC & ESC: BETAFPV 2S Whoop FC Stack
- Material: Clear plastic

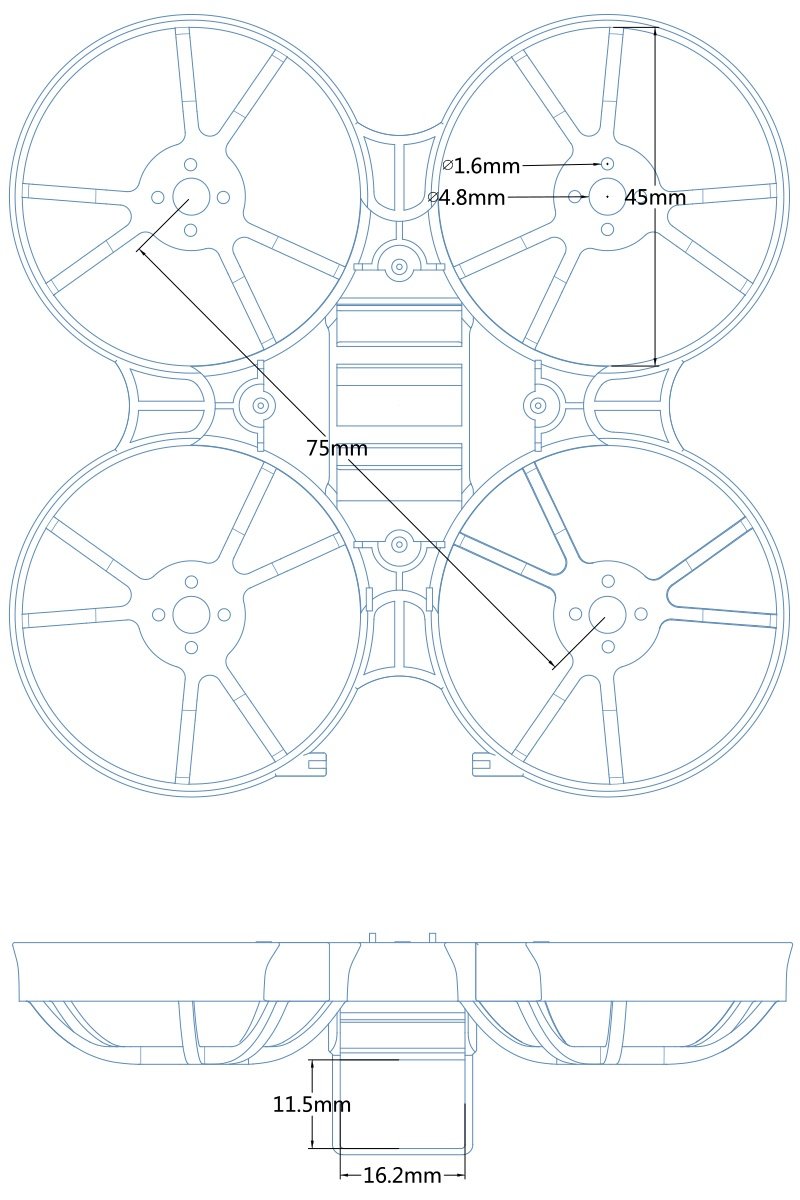

- Diagonal motor to motor distance: 75mm
- Motor mounting hole: for 110x series motors
- FC mounting hole: fully compatible with whoop style FC board mounting pattern, 26mm x 26mm
- Battery slot size: 11.5x16mm, for BETAFPV 300mAh battery
- Weight: 7.1g
- 1x Beta75X 2s Whoop Frame - White
- Additional Information
SKU 9422 Manufacturer BETAFPV UPC (GTIN) 721248874139 Static Block No
