BETAFPV Beta75X V2 Brushless Whoop Frame

More Views

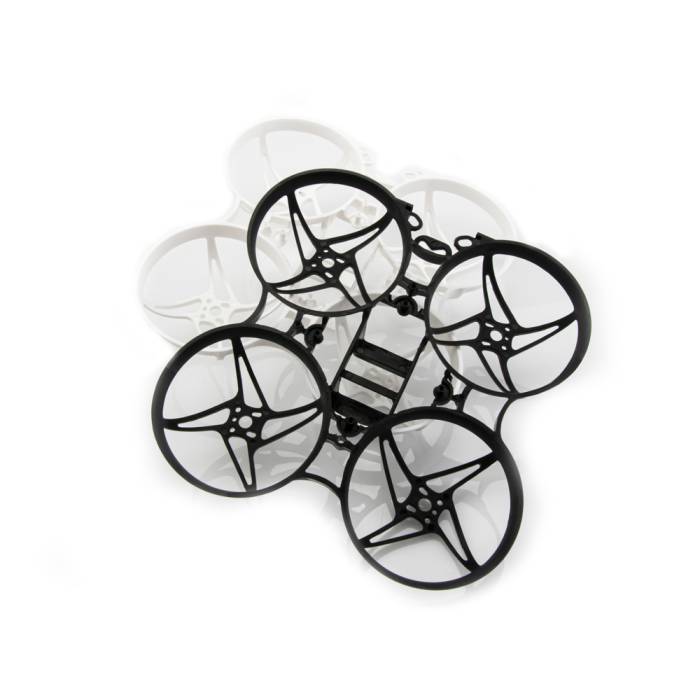

BETAFPV Beta75X V2 Brushless Whoop Frame
Compared with the Beta75X frame, the BETAFPV Beta75X V2 frame only weighs 5.6g, It is lighter and the gravity center of the V2 frame is more concentrated.
Choose option below...
$4.99

* Required Fields

$4.99
Description

Compared with the Beta75X frame, the BETAFPV Beta75X V2 frame only weighs 5.6g, It is lighter and the gravity center of the V2 frame is more concentrated. With an increase in the height of the frame loop, props can be completely wrapped by the protective ring. The Beta75X V2 Frame is specially designed for 1102 and 1103 brushless motors!

Features

  • The Beta75X V2 frame only weighs 5.6g, it is lighter and the whole drone’s gravity center more concentrated than the Beta75X V1. Meanwhile, the motor mount position uses a quadrilateral stretch structure, makes the frame more durable and stable.
  • Increased the height of the frame loop, props are completely wrapped by the protective ring, more effectively protected the propellers.
  • Designed two different motor mounting holes that support 1102 and 1103 brushless motors at the same time.
  • With a 26mm*26mm FC mounting columns can match whoop style flight controllers like F4 AIO 12A FC. The battery slot fits BETAFPV 300mAh 2S and 300mAh 3S-S battery.

Specifications

  • Material: Plastic
  • Color: Black / White
  • Weight: 5.6g
  • Diagonal motor to motor distance: 75mm
  • Motor mounting hole: for 110x series motors
  • FC mounting hole: 26mm x 26mm, fully compatible with whoop style FC board mounting pattern
  • Battery slot size: 6.8x16.1mm

Recommended Parts (Not Included)

Includes

  • 1 x Beta75X V2 Whoop Frame for 75mm 3S whoop drone
Additional Information
SKU 14693
Manufacturer BETAFPV
UPC (GTIN) No
