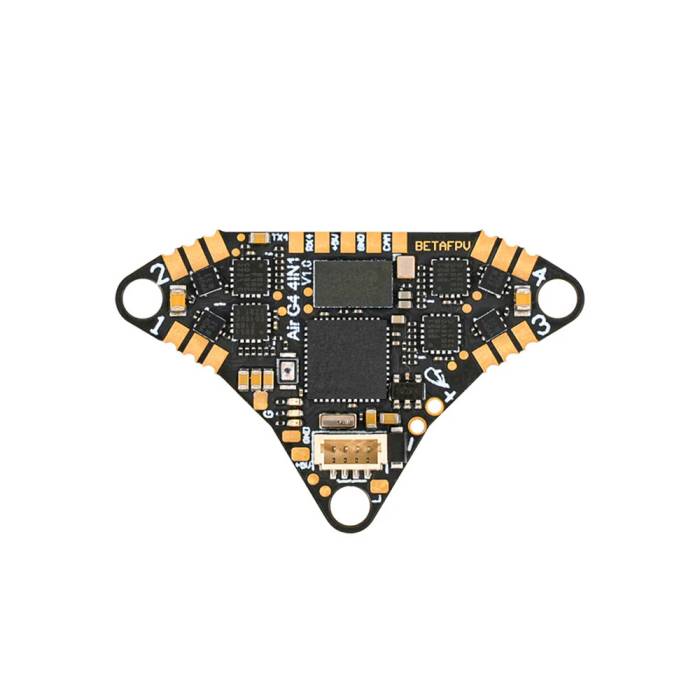

The BETAFPV Air Brushless Flight Controller is the first 1S FC with the STM32G473CEU6, which offers a 55% boost in computing speed and lightning-fast response times, outpacing the F411. Featuring the ICM42688P gyro and onboard 5.8G 25mW~400mW VTX for precise drone control. Experience effortless fingertip control and unmatched performance, making it the top choice for future ultralight 1S whoop drones!

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

• High Integration and Lightweight Design
• Industry-Leading ICM42688P Gyro
• Extensive Flight Data Recording
• Up to 16MB black box capacity
• Advanced G473 Processor
• Integrated VTX

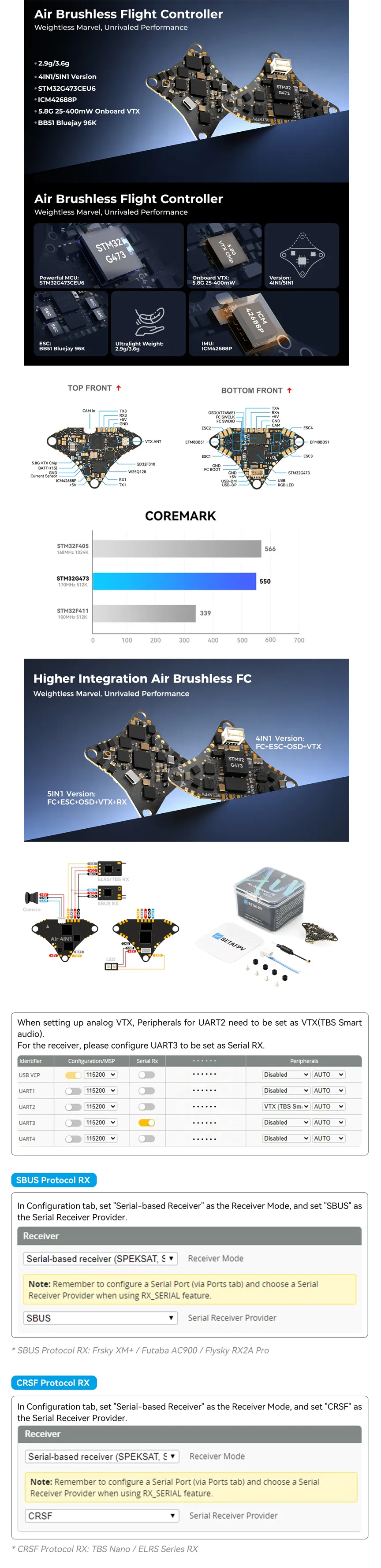

COMPARISON BETWEEN G473 AND F411

Say goodbye to limitations and embrace the cutting-edge technology of the G473 flight controller for an unparalleled flight experience. The Air Brushless Flight Controller features a superior CPU clock speed of up to 168MHz and four richer serial ports, enabling lightning-fast response times and advanced computing power. It is ideal for demanding flights, taking your flying experience to the next level, and demonstrating outstanding performance, surpassing all 1S FC options available on the market.

BLUEJAY ESC FIRMWARE

With the BB51 ESC solution, the Air Brushless Flight Controller is based on A_X_5_96KHz_V0.19.hex for BB51 Bluejay hardware. It supports D-Shot300, D-Shot600, and even RPM filtering in Betaflight. It offers fixed PWM frequencies of 24kHz, 48kHz, and 96kHz as options and custom start-up melodies.

4-IN-1

Choose this highly integrated Air Brushless Flight Controller for an ultra-light 1S whoop installation tailored to meet the needs of discerning pilots. With its default integrated onboard 25-400mW VTX. This streamlines installation saves space, reduces weight, and enhances convenience for VTX and FC adjustments. The 4IN1 version removes the RX port and offers added versatility, providing pilots with more external RX options.

ESC

• ESC Firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay hardware
• FC Firmware Version: Betaflight_4.5.0_BETAFPVG473
• Signal Support: D-shot300, D-shot600
• Input Voltage: 1S

VTX

• Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
• Operating Temperature: -10℃ ~ +80℃
• Frequency Precision: ±200KHz (Typ.)
• Output Power: 25/100/200/400/PIT
• Frequency Stability: ±100KHz (Typ.)
• Channel Carrier Error: ±1.5dB
• Channel SEL: SmartAudio2.0
• All Harmonic: Max -50dBm
• Frequency Control: PLL
• Modulation Type: FM
• Antenna Port: 50 Ω

FLIGHT CONTROLLER

• Six-Axis: ICM42688P (SPI connection)
• Mounting Hole Size: 26mm x 26mm
• 4IN1 Version: FC + ESC + OSD + VTX
• CPU: STM32G473CEU6 (168MHz)
• Built-in ESC with 5A continuous
• Weight: 2.9g (4IN1 Version)
• Sensor: Voltage & Current
• Blackbox Memory: 16MB
• USB Port: SH1.0 4-Pin
• 5V BEC: 5V 3A

IMPORTANT NOTES

• Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

• Flight Controller Firmware
• Bluejay ESC Software
• ESC Configurator
• Reference Link

• 1x BETAFPV Air 4-in-1 AIO -  G4 FC + 1S ESC + 400mW VTX + OSD
