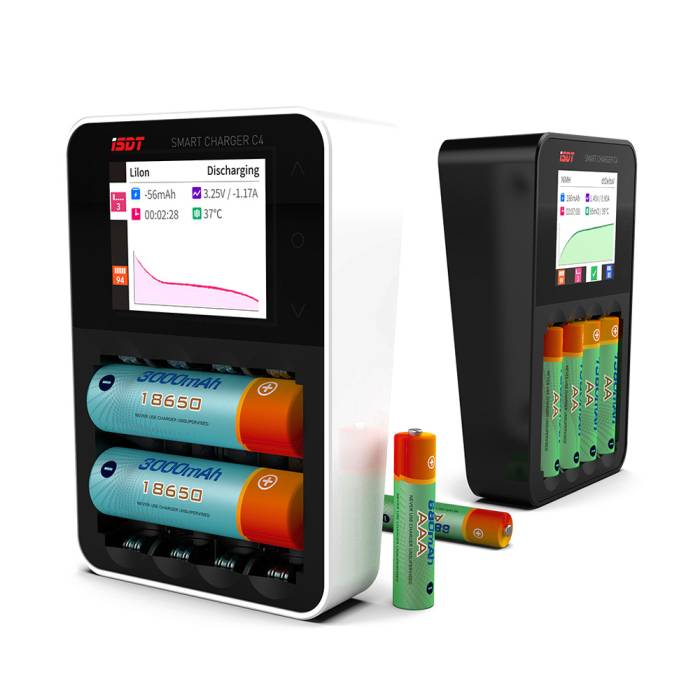

Supporting almost all battery types, the ISDT C4 is a high-performance smart charger. Featuring a high angle visible IPS display, the battery charger shows detailed parameters and task progress. Each battery type can be charged independently using a designated port. The charger will immediately identify the battery type and match with the appropriate charging strength.

Protected by a strong aluminium case, the ISDT C4 charger is able to analyse, activate, cycle and store power. The C4 smart charger is compatible with Li-Ion, LiHv, IM-R, IN-R, NiMh, Ni-CD, LiFeP04 and Eneloop.

The iSDT C4 Smart Fast Battery Charger is designed for charging 6 slots of 3 kinds of various rechargeable batteries simultaneously. 3A per channel and max 8A output makes charging quickly. Six charging and discharging modes to meet all your charging needs. With a 2.4 inch IPS LCD screen, you can know the charging situation easily. Support USB output, you can charge your smartphone at the same time.

Comes with a wall power supply.

Features

• Fast charging: support 3A per channel and max 8A output, quick charging
• Max charging 6 batteries simultaneously: specially designed, the slots can charge different kinds of batteries at the same time, max 6 batteries
• Smart charging: automatic battery type identification and auto-setting for accurate battery charging voltage and modes
• 6 charging and discharging modes: 6 modes supports a wide range of battery charging options: charge, discharge, storage, cycle, activation, analysis
• 2.4 inch IPS LCD screen: 178-degree wide visible angle, 3 backlights adjustable and visible under sunshine makes you easily know the charging conditions
• USB output function: you can charge your phone with this charger
• Wide input voltage: support 12 - 24V input to provide more choices for power sources
• 3 protections: reverse polarity protection, over temperature protection, overcapacity protection to protect your charger and batteries

Specifications

• Input Power: DC 12-24V/2.5A
• Circuit Power: max. Charge power 25W max. Discharge power 10W
• Battery Count: 1 – 4 single cells, cylindrical
• Battery Size: AAA,AA,10440,10500,12500,12650,13500,13650,14500,14650,16650,17650,18650,20650,22650,26650
• Operating Voltage Range: 0.2V – 5.0V/slot
• Battery Chemistry Type: NiMH, NiCd, NiZn, Eneloop, Li-Ion, LiHv, LiFePO4
• Charge Current Range: 0.1A – 3.0A/slot
• Discharge Current Range: 0.1A – 1.5A
• Operation Modes: Charge, Discharge, Storage, Cycle, Activation, Analysis
• Cycle Count: 1 – 66 cycles
• Display: 320×240 IPS LCD
• Beep Sound: Multi-tone
• Temperature: Sensors 5 for inner
• Operating Temperature: 0℃ – 40℃
• Calibration: Factory calibration
• Voltage Measurement: ±10mV internal resolution
• Current Measurement: ±10mA internal resolution
• Standby Current Drain: <0.05mA/battery
• External Ports: DC Input, Micro USB Link, USB power output
• USB Power Output: DC 5V / 2.1A
• Firmware Update: Yes
• Reverse polarity protection: support
• Over temperature protection: support
• Overcapacity protection: support
• Dimensions: (L×W×H) 122×85×38mm
• Material: PC+ABS casing, aluminum heatsink
• Weight: 153g(approx.)

Includes

• 1x iSDT C4 25W Smart Charger
• 1x Power Supply
