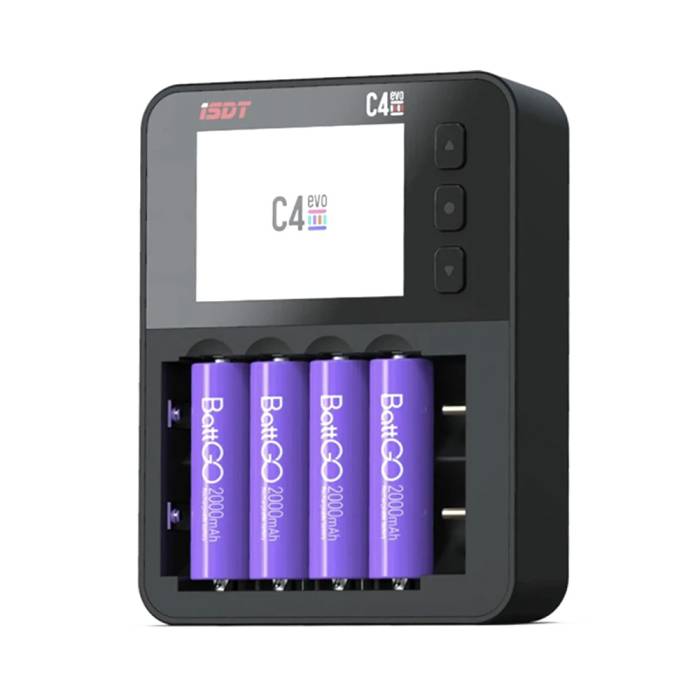

The iSDT C4 EVO is a high-performance smart charger with a 90 Minute charging time. Featuring a high angle visible IPS display, the battery charger shows detailed parameters and task progress. Each battery type can be changed independently using a designated port. The charger will immediately identify the battery type and match it with the appropriate charging strength.

Protected by a strong aluminum case, the ISDT C4 EVO charger is able to analyse, activate, cycle and store power. The C4 EVO smart charger is compatible with Li-Lon, LiFe, LiHv, NiMH, NiZn, Eneloop

The iSDT C4 EVO Smart Charger is designed for charging 6 slots of 3 kinds of various rechargeable batteries simultaneously. Six charging and discharging modes to meet all your charging needs. With a 2.4 inch IPS LCD screen, you can know the charging situation easily. Support USB output, you can charge your smartphone at the same time.

VIDEO: iSDT C4 EVO Battery Charger Review

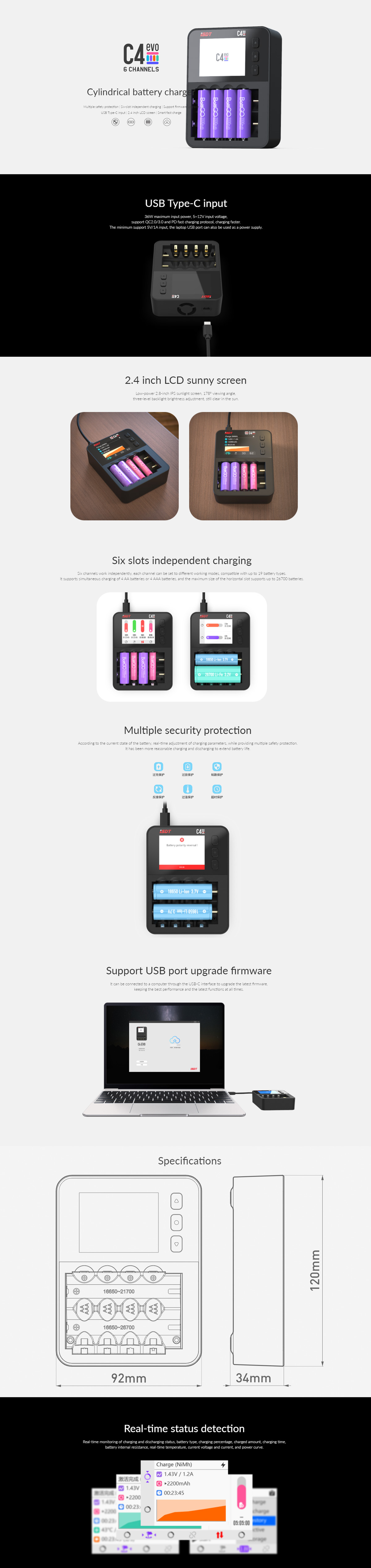

Features

• 2.4 inch IPS LCD screen: 178-degree wide visible angle, 3 backlights adjustable and visible under sunshine makes you easily know the charging conditions
• 3 protections: reverse polarity protection, over-temperature protection, overcapacity protection to protect your charger and batteries
• Six channels work independently, each channel can be set to different working modes, compatible with up to 19 battery types.
• Smart charging: automatic battery type identification and auto-setting for accurate battery charging voltage and modes
• Wide input voltage: support 5-12V input to provide more choices for power sources
• Fast charging: support 3A per channel and max 8A output, quick charging
• Supports USB-Port Firmware Upgrading
• Quick Charging Time: 90 Minutes
• Real-time status detection
• USB Type-C Input

Specifications

• Battery Size: AAA,AA,10440,10500,12500,13500,14500,14650,16650,17650,17670,18650,18700, 20650,20700,21700,22650,26650,26700
• Reverse Polarity Protection: Vertical physical anti-reverse connection, horizontal hardware anti-reverse connection
• Operation Modes: Charge, Discharge, Store, Destroy, Cycle, Activate, Analyze
• Discharge Current Range: 0.1-1.5A (Horizontal), 0.1-1.0A (Vertical)
• Charge Current Range: 0.1-3.0A  (Horizontal), 0.1-1.5A (Vertical)
• Support battery type: Li-Lon, LiFe, LiHv, NiMH, NiZn, Eneloop
• Operating Voltage Range: 5-12V (Support QC, PD protocol)
• External Ports: USB power output (Type-C)
• Standby Current Drain: <0.05mA/battery
• Battery Count: 1~4Cylindrical battery
• Quick Charging Time: 90 Minutes
• Temperature Sensors: 6 for inner
• Overcapacity protection: Support
• Overheating Protection: Support
• Current Measurement: ±10mA
• Voltage Measurement: ±10mV
• Working temperature: 0~40℃
• Display: 320×240 IPS LCD
• Firmware Update: Support
• Beep Sound: Multi-tone
• Model: C4 EVO

Includes

• 1x iSDT C4 EVO 36W 6-Channel Smart Charger
• 1x USB Type-C Charging Cord
• Note: Batteries NOT Included
