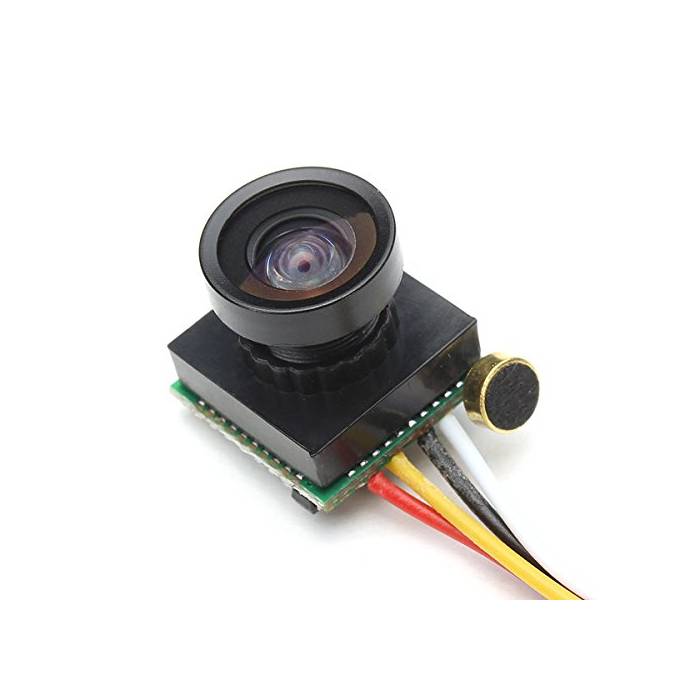

This is 600TVL, ¼ CMOS sensor, miniature camera. It has a Korean HD 2.1mm lens with a wide 120 FOV. This has been designed for FPV with small 150/160 size quads in mind. It comes complete with an adjustable mount which can be either screwed or taped to the quad frame.

Features

• Small size
• Easy to use
• Reinforced nylon composite materials (mount)

Specifications

• Resolution: 1280 x 960
• Resolution: 600TVL
• Camera Dimensions: 12.5 x 12.5 x 17mm
• Illumination: 0.5LUX
• Format: NTSC
• Power supply range: 3.3-5V 100mA
• Audio Lens: Wide-angle 2.1mm (About 120 degree)
• Image sensor: 1/4 CMOS image sensor
• Sensitive area: 3.5964 x 2.7084mm
• Pixels: 648 (horizontal) × 488 (vertical)
• FOV: 120 Degrees
• Scanning Frequency Horizontal: 15.625KHz
• Level: 15.7343KHz
• Vertical: 60Hz
• Minimum illumination: 0.1 Lux / F1.2
• Composite video signal: 1.0Vp-p 75Ω
• Standard Lens: 2.1 mm
• Specifications PCB: 12.5 x 12.5mm
• Power: DC5V ± 10% 70mA ± 10%
• Operating temperature: -10 ? ~ 60 ? RH95% Max

Includes

• 1x 600TVL Wide Angle Lens Camera
• 1x Adjustable Mount
