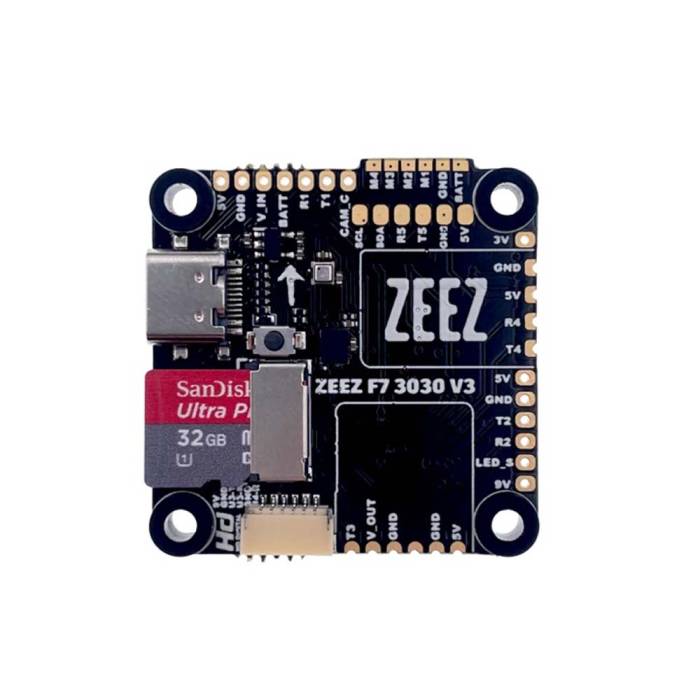

Zeez F7 3030 V3 Flight Controller
The ZEEZ F7 V3 3030 is an 8 Motor Output, DJI HD System Ready Flight Controller with an on-board 9V@3A regulator to power the DJI Air Unit, with a simple plug-and-play configuration and 5V@3A regulator to power all the peripheral.

About this product

The ZEEZ F7 V3 3030 is an 8 Motor Output, DJI HD System Ready Flight Controller with an on-board 9V@3A regulator to power the DJI Air Unit, with a simple plug-and-play configuration and 5V@3A regulator to power all the peripheral.

It uses a powerful F7 processor along with top-of-the-line hardware:  ICM42688P Gyro, BMP388 Barometer, with a separate power rail for cleanest data. The ZEEZ F7 V3 3030 comes in a standard 30×30 form factor. It comes with spaces and pads for TBS Crossfire and TBS Unify Nano32 for a very clean and low-profile assembly. Zeez have added a connector for a 2nd ESC to make building X8s as easy as possible. There are 5 UARTS available as well as an I2C port, SD CARD for Blackbox data record, and an OSD chip for analog video.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

Features

  •  8 Motor Output
  • Uses a powerful F7 processor along with top-of-the-line hardware
  • Comes with spaces and pads for TBS Crossfire and TBS Unify Nano32
  • 5 UARTS available
  • DJI HD System Read

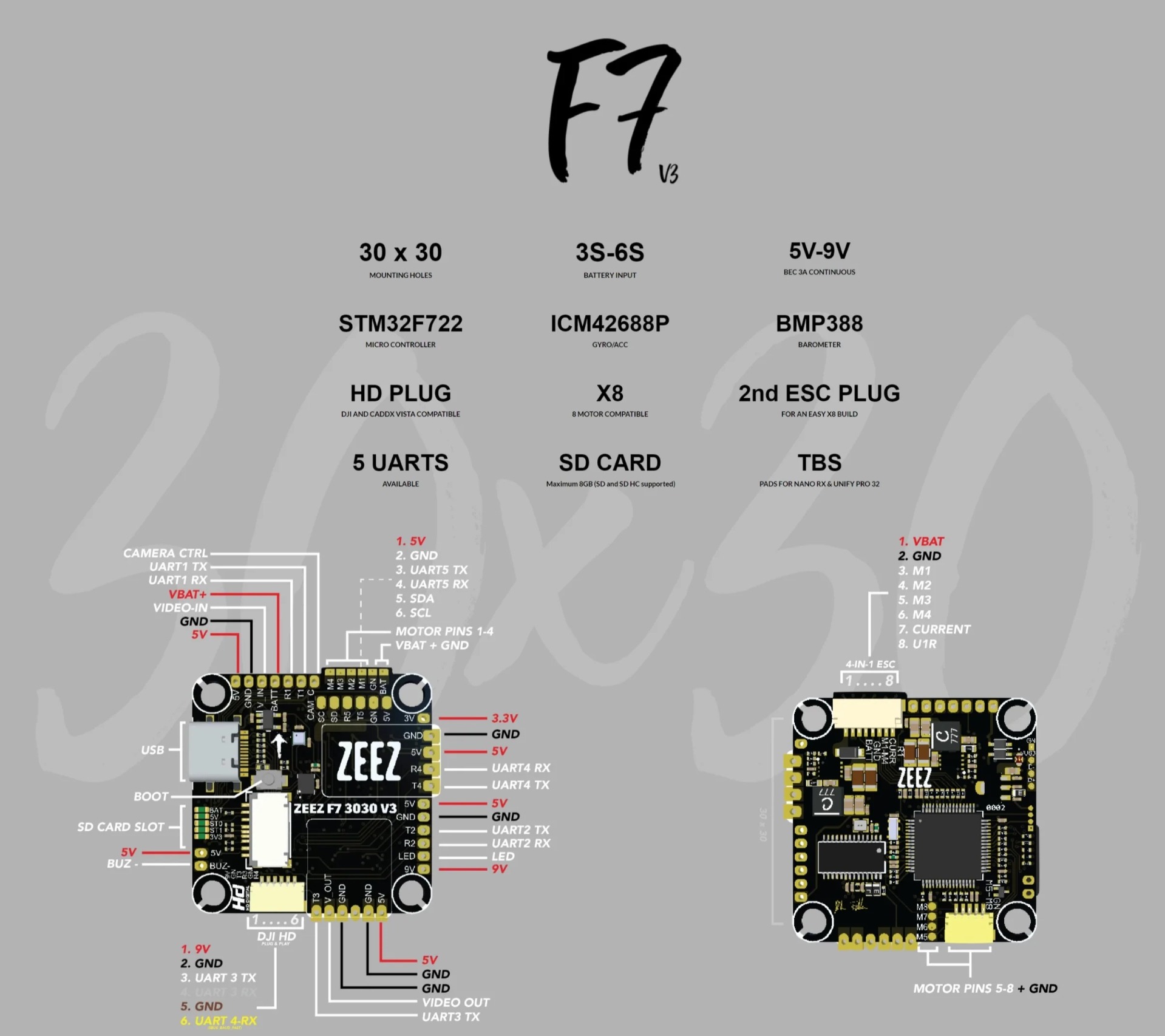

ZEEZ RC F7 3030 FLIGHT CONTROLLER V3

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

Specifications

  • Mounting holes: 30.5x30.5mm
  • LiPo Power input: 3S-6S
  • 8 Motor output
  • BEC 5V-3A / 9V-3A
  • STM32F722 MCU (216MHz max frequency)
  • ICM42688P Gyro/ACC
  • BMP388 Barometer
  • OSD chip Onboard
  • 5 available UARTs / I2C bus
  • SD Card Reader
  • HD Plug for DJI Air Unit or Caddx Vista or Walksnail VTX
  • USB Type C connector
  • Direct solder connection and board space for TBS Nano RX and TBS Unify Pro32 Nano providing the ultimate in clean stack installation

IMPORTANT NOTES

  • Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

Recommended (Not Included)

Includes

  • 1x Zeez RC F7 3030 Flight Controller V3
  • 4x Aluminum Standoff
  • 4x Aluminum Nut
  • 1x ESC to Flight Controller 8 Pin to 8 Pin JST SH 1mm Connector
  • 1x ESC to Flight Controller 8 Pin to Free Wires (with JST SH crimp)
  • 1x 2nd ESC to Flight Controller 5 Pin to 8 Pin JST SH 1mm connector
  • 1x 2nd ESC to Flight Controller 5 Pin to Free Wires (with JST SH crimp)
  • 1x JST SH 8 Pin Plastic Housing
  • 1x JST SH 10 Pin Plastic Housing
  • 2x 2.00mm Header Pin for VTX Connection
  • 2x 2.54mm Header Pin for Receiver Connection
  • 1x JST 6 pin to AirUnit Connector

Featured Videos

ADD VIDEO TITLE HERE IN BOLD CAPS

ADD VIDEO TITLE HERE IN BOLD CAPS

More Information

SKU 19380
Manufacturer Zeez Design
Mounting Pattern 30.5x30.5mm (Mini)
UPC (GTIN) 764613348156
