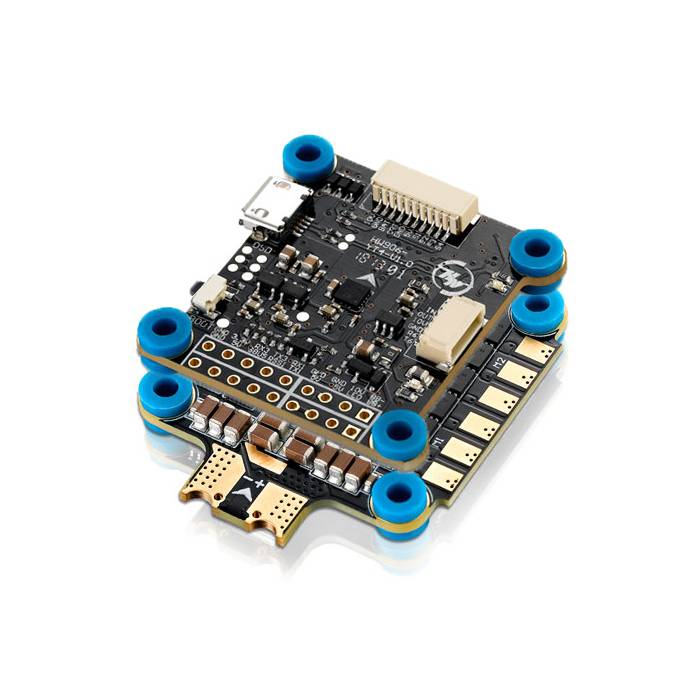

This is the Flight Controller and ESC stack of choice for many of the leading FPV Pilots in the world, including Minchan Kim, Milk FPV, Gapit FPV, Banni UK; just to name a few. And for good reason, it was designed for intense competition. This stack is built with premium components that won't let you down on race day.
This stack features the best specs for today's racer such as DShot1200, BLHeli32, onboard SD slot, STM32405, ICM20602, and onboard filter circuit for your VTX.
The built-in OSD on the FC allows the user to adjust or set OSD parameters from your flight firmware such as Betaflight/Cleanflight/Butterflight etc.
Micro Flight Controller F4 G2
- Item name: F4 G2 Flight Controller
- Firmware: OMNIBUSF4SD
- FC Programming: Supported
- Programming via: Betaflight/Cleanflight-configurator or Others
- Compatible with (Modes): PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200, Proshot1000 and etc.
- Compatible with (Transmitters): PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL, and etc.
- OSD: Built-in
- Voltage Monitoring: Supported
- Current Monitoring: Supported
- External Buzzer: Supported
- LED Control: Supported
- BEC: No
- USB Port: MicroUSB
- Size: 36*36mm
- Weight: 6g
Micro 45A 4-in-1 ESC
- LiPo Power input: 3S-6S
- Cont.Current: 45Ax4
- Burst Current: 60Ax4
- BEC Output: 5V@1.5A / 10V@1.5A
- Input wires: 12AWG-130mm* (Red/Black)
- Output Wire: No wires but solder tabs
- Connectors: (In/Out) XT60 (w/ Wires Soldered on) /no
- Weight / Size: 11.5g / 32.7x18.4x6.2mm
- Mounting holes: 30.5x30.5mm
- Throttle Calibration: Supported
- ESC Programming: BLHeliSuite32
- DEO: Supported
- OneShot Mode: Supported
- Timing: Supported
- Motor Rotation: Supported
- 1x F4 G2 FC
- 1x 45A 4-in-1 ESC
- 1x Signal Cable
- Soft Mount Grommets
- Additional Information
SKU 8876 Manufacturer Hobbywing UPC (GTIN) 88718518338 Static Block No
