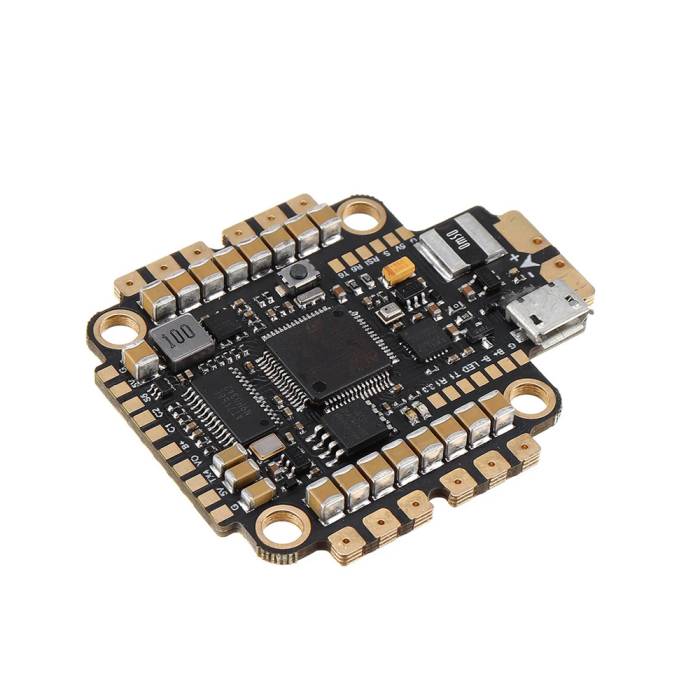

V-Good RC AIO Flight Controller (F7, OSD, 40A 6S BLHeli32 ESC, BEC, Curr, DJI, Black Box)

More Views

V-Good RC AIO Flight Controller (F7, OSD, 40A 6S BLHeli32 ESC, BEC, Curr, DJI, Black Box)
The V-Good RC AIO Flight Controller comes F7, OSD, 40A 6S BLHeli32 ESC, BEC, Curr, DJI, Black Box, and many other cool features all-in-1 board!
Backorder
$65.99
OR
Description

The V-Good RC AIO Flight Controller comes F7, OSD, 40A 6S BLHeli32 ESC, BEC, Curr, DJI, Black Box, and many other cool features all-in-1 board!

Specifications

  • Brand Name: Racerstar
  • Model: StarF7
  • Item Name: F7 OSD Flight Controller AIO 40A 4in1 ESC Board
  • Input Voltage: Support 2-6S Lipo
  • Size: 51x43mm
  • Mounting Hole: 30.5x30.5mm ( M4)
  • Weight: 20g

F7+OSD+BEC+CURRENT+DJI+BLACK BOX (DUAL CAMERA)

  • Input Voltage: 2-6S Lipo
  • Output Voltage: 5V@2A
  • CPU: STM32F722RET6
  • ICM-MPU6000 Accelerometers and Gyroscopes SPI
  • - MicroUSB Socket

40A BLheli_32 2-6S 4in1 Brushless ESC

  • Con. Current: 40A
  • Burst Current: 45A (10S)
  • SBEC: 9V 3A
  • Programming: YES
  • Support DShot1200 In default

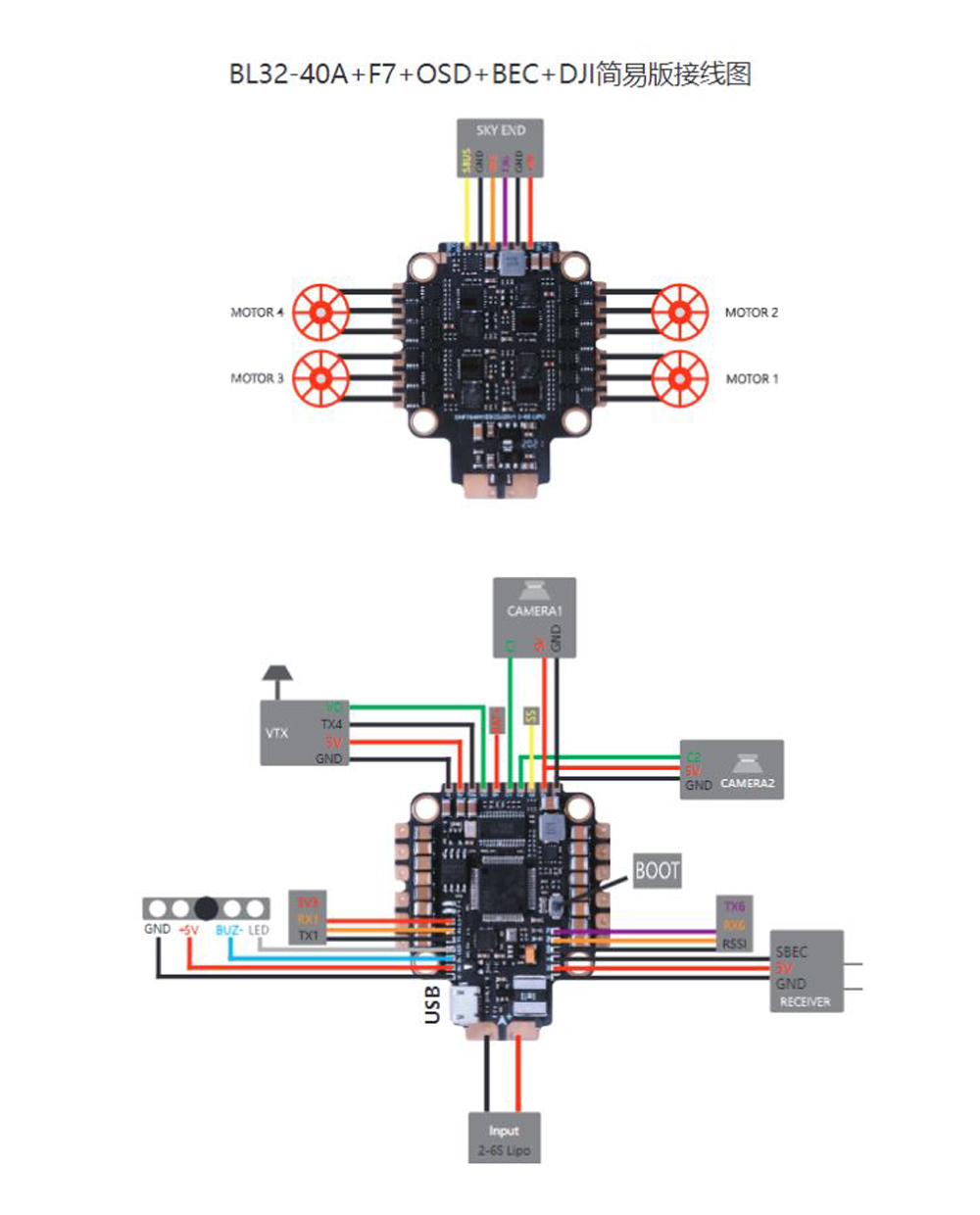

Diagram

Includes

  • 1 x V-Good RC F7 OSD + 40A 6S BLHeli32 4-in-1 ESC AIO Board
  • 1 x Bag of Screws
  • 1 x Cable
Additional Information
SKU 14168
Manufacturer V-Good RC
UPC (GTIN) 789862850458
