Ummagawd 2Fiddy 5" Ultra Light Freestyle Frame Kit

More Views

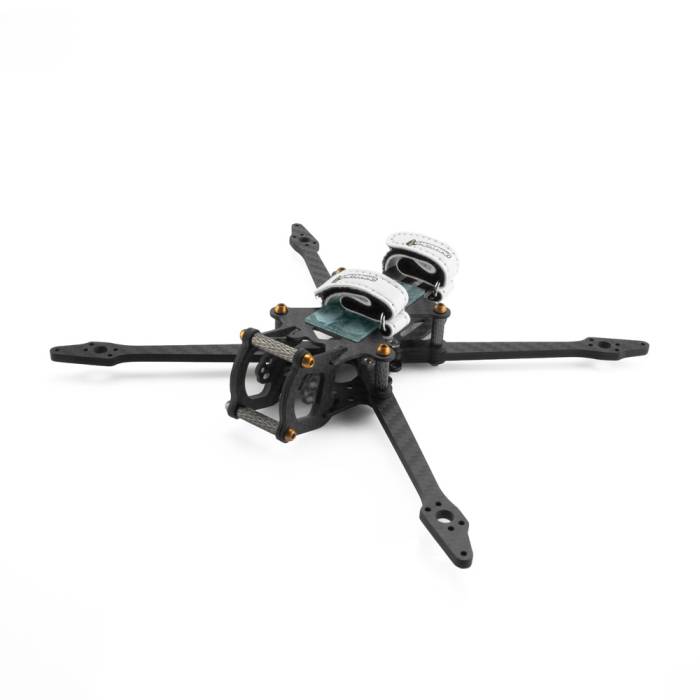

Ummagawd 2Fiddy 5" Ultra Light Freestyle Frame Kit
The Ummagawd 2Fiddy 5" Ultra Light Freestyle Frame Kit was designed to be simple yet durable. With 4mm carbon fiber plates, universal FC/ESC mounting options, and room for HD or Analog FPV gear... this frame is perfect for all of your lightweight flying needs.
Backorder
$59.99
OR
Description

The Ummagawd 2Fiddy 5" Ultra Light Freestyle Frame Kit was designed to be simple yet durable. With 4mm carbon fiber arms, universal FC/ESC mounting options, and room for HD or Analog FPV gear... this frame is perfect for all of your lightweight flying needs.

Note: This is the frame kit only. Assembly required. No electronics, props, motors, or camera included.

VIDEO: 2Fiddy Build | Step by Step

Features

  • 2 Hole or Single Hole FPV Camera Mount (0-35deg)
  • Made for Caddx Vista (but Analog Friendly)
  • Toilet Tank OR Standard Battery Position
  • 4mm Thick Quick Swap Arms
  • Universal FC Mounting
  • Ultra Lightweight
  • Versatile
  • Durable

Ultra Lightweight

There’s no doubt that a 250g 5” Freestyle Drone is a new category, with very different design goals and limitations. We wanted to extract as much power, response, durability, and of course “fun”, while getting as CLOSE to an AUW of 250g as we can.

Why? Because let's face it, having some weight to toss around allows for a bit more "expression" with your freestyle and there's something just absolutely satisfying about it.

So, we tested and simulated a variety of carbon thicknesses, component layouts, and fasteners. We knew that simply scaling down a 5" frame may introduce frame resonance, and that will certainly affect performance. Although some resonance and vibrations can be smoothed out by firmware features, I believe that great frames shouldn't require special filtering to run smoothly.

Versatile

One of the most unique features of this frame is its versatility for mounting your FC/ESC. We recommend the use of AIO flight controllers to save weight but didn’t want to limit people to one layout. The 2Fiddy has holes for 30.5x30.5, 20x20, and whoop style layouts. And although we recommend running an AIO board, you can even run a dual FC/ESC stack by simply flipping the arms under the bottom plate and using the included 20mm standoffs.

While the frame was designed specifically around the Caddx Vista FPV system, analog FPV gear will work just fine. The rear section has 20x20 mounting holes that line up with the vista unit, and the top plate has a little notch to keep your antenna centered along the rear standoff. This design allows you to simply use a zip tie to mount your antenna without the need for a 3d printed part. The front camera cage is spaced for a 20mm DJI camera, however, smaller 19mm micro analog cameras work just fine. There are double slotted mounting holes for the DJI camera as well as a dedicated center hole for cameras such as the Nebula Pro HD, which provides 0-35 degrees of tilt. The cam cage features an innovative plate-lock design that ensures maximum camera protection while ensuring that the cage won't pop out in a crash.

Durable

Arms are locked in place by two bolts and use press nuts for both ease of use and to keep the attachment locations as low profile as possible. No arm mounting hardware is shared with any electronics and the arms meet at the middle for a unibody-like stiffness. These arms were not only tuned for reduced resonance, and ease of replacement, but are also made to be as durable as possible without causing a break elsewhere on the frame.

Specifications

  • Standoffs: 14mm (low pro) & 20mm (full stack)
  • Mount: Single Board or Full-Sized Stack
  • Mounting Pattern: 30.5x30.5 or 20x20
  • Carbon Thickness: 4mm
  • Brand: Ummagawd
  • Weight: 55g
  • Size: 5"

NOTE: The standoff screws are aluminum and will strip easily if you over tighten them. We advise using a 'softer' hex driver to screw these in to prevent stripping.

Recommended (Not Included)

Includes

  • 1x Ummagawd Keychain + Sticker
  • 7x 20mm (full stack) Standoffs
  • 5x 14mm (low pro) Standoffs
  • 2x Ummagawd LiPo Straps
  • 1x FPV Camera Hardware
  • 1x AIO FC Hardware
  • 1x Hardware Set
  • 1x Camera Plate
  • 1x Bottom Plate
  • 1x Middle Plate
  • 1x Ummagrip
  • 15x Zip Ties
  • 1x Top Plate
  • 4x 5" Arms
Additional Information
SKU 16235
Manufacturer Ummagawd!
UPC (GTIN) 764613333251
