TrueRC Duality 2.4/5.8GHz RP-SMA Stubby Antenna for DJI FPV Goggles V2 (4Pcs) - LHCP

The TrueRC Duality Antenna is a dual-band CP omni antenna that covers both the 2.4GHz and 5.8GHz bands in a single compact stubby package. It features a drop-in fit for the DJI FPV Goggles V2, allowing you to leave them on at all times thanks to its much lower profile compared to the stock linear antennas. Each unit is hand-tuned on a professional analyzer, ensuring you get the most out of your digital HD system.

• DJI FPV Goggles V2 Compatibility
• Replaces Stock Linear Antennas
• Compact Stubby Design
• Enhanced Performance
• Circular Polarization
• Dual-Band Coverage

• Bandwidth: 2.39 GHz – 2.52 GHz & 5.6 GHz – 6.1GHz
• Dimensions: 23.3 mm (diameter) × 22.0 mm (height)
• Gain: 1.7 dBic @ 2.4 GHz, 2.8 dBic @ 5.8GHz
• Cross-Polar Rejection: -15 to -30 dB (2.2%)
• Radiation Efficiency: 99%
• Connector: RP-SMA
• Polarization: LHCP
• Weight: 5.25g
• SWR: ≤ 1.5:1

Important Notes

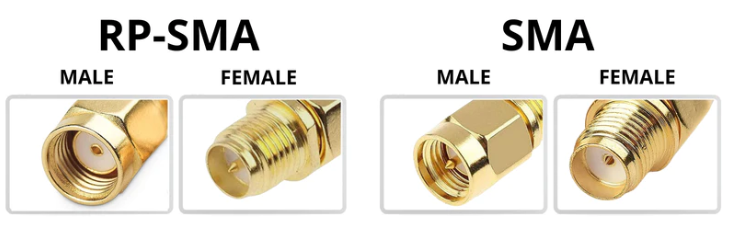

• Please verify your connector to ensure proper connection and function!

• 4x TrueRC Duality 2.4/5.8GHz RP-SMA Stubby Antenna for DJI FPV Goggles V2 (4Pcs) - LHCP
