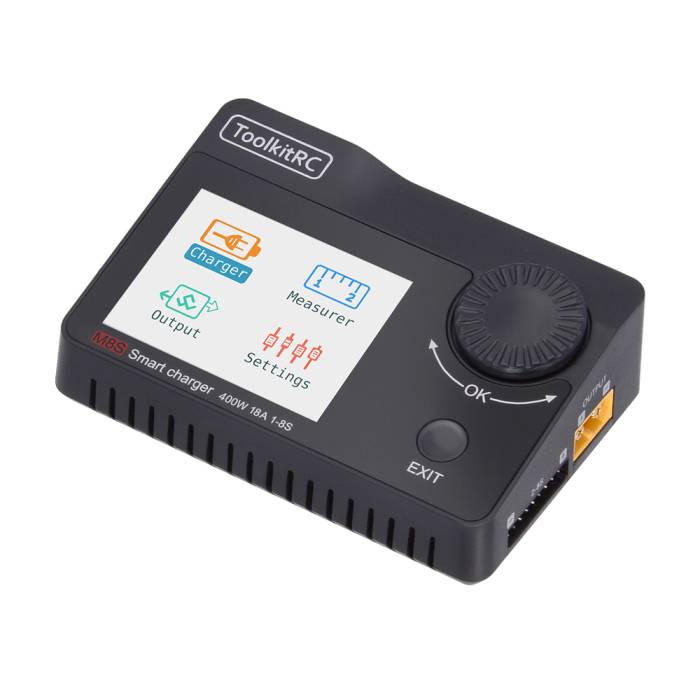

ToolkitRC M8S 400W 18A Charger, Cell Checker, Servo Tester, Signal Tester

ToolkitRC M8S 400W 18A Charger, Cell Checker, Servo Tester, Signal Tester

ToolkitRC M8S 400W 18A Charger, Cell Checker, Servo Tester, Signal Tester
The M8S is a worthy upgrade over the previous version, the M8. The M8S adds extra power to 400W, amperage now at 18A, and a full-color display! You can even test your Sbus/PWM/PPM signals with this charger!

About this product

The M8S is a worthy upgrade over the previous version, the M8. The M8S adds extra power to 400W, amperage now at 18A, and a full-color display! You can even test your Sbus/PWM/PPM signals with this charger!

As you can see, this is not just a charger. The M8S has tons of features, even with its small size. A super useful tool to carry with you everywhere you go!

Features

  • 2.4" Color Screen
  • Battery Charger
  • Cell Checker
  • Servo Tester
  • PWM,PPM.SBUS Input/output Receiver & Flight control tester
  • Viable AMp/volt DC Power supply (Required external DC input)

Specifications

  • Charging
  • Input 7-30V: @MAX18A
  • Battery Type: LiPo LiHV LiFe Lion @ 1-8S NiMh @1-20S Pb @1-12S
  • Bal Current: 800mA @2-8S
  • Accuracy: ±0.01V
  • Charging Power 0.1-18A @ 400W
  • Discharging Power 0.1-18A @ 400W
  • Recycle Mode 0.1-5A @ 20W Normal Mode
  • USB 2.1A @ 5.0V upgrade

Measuring

  • PWM 880us-2200us @20-400Hz
  • PPM 880us-2200us*8Ch @20-50hz
  • SBUS 880us-2200us*16ch @20-100Hz
  • Voltage 1.0V-5.0V @1-8S
  • IR 1-100mR @1-8S

Output

  • PWM 500us-2500us @20-1000Hz
  • PPM 880us-2200us*8ch @50hz
  • SBUS 880us-2200us*16ch @74Hz
  • Power 1-18A @ 1-30V Mode: CC+CV
  • Display:LCD TFT 2.4 inch 320*240 resolution

Product

  • Size 98mm*68mm*35mm
  • Weight 170g
  • Packing: Size 108.5mm*80.5mm*46mm Weight 255g

Includes

  • 1 x ToolkitRC M8S 400W 18A Charger

Add a Power Supply (not included)

The ToolKit charger is very powerful but it needs an external power supply to operate. We suggest one of the following power supplies below if you don't have one already.

Manual and Documentation
