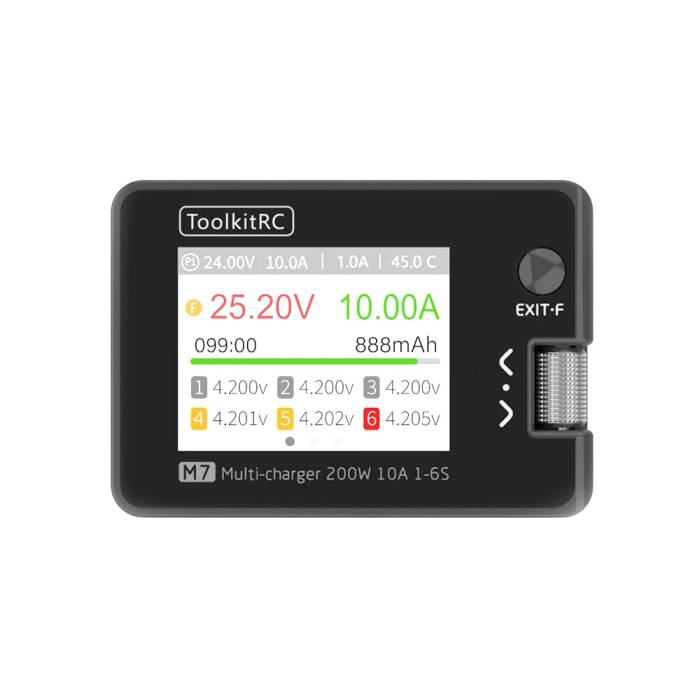

The ToolkitRC M7 is a 200W multifunctional balance charger with 33.3% more power than the M6. With its IPS wide-angle display and simplified interface, this charger is ideal for outdoor viewing. The scroll wheel allows for better control for years of trouble-free use!

VIDEO: ToolkitRC M7 Charger and P200 Power Supply

Features

• 240 X 320 Screen Resolution
• IPS Wide-angle display
• Simplified Interface
• Electricity Measure
• Multi-functionality
• Balance Charge
• Multi-language
• Signal Source
• Drone Charge
• Signal Testing

Specifications

• LCD: IPS 2.0inch LCD 320*240 Pixel
• Product size: 73*51*27 mm
• Pack size: 84*79*39 mm
• Product weight: 90g
• Pack weight: 150g

CHARGER

• Discharge power: 200W @MAX 10A Recycle mode / 10W@3A Normal mode
• Type of battery: Lipo LiHV LiFe Lion@1-6S / NiMh @1-16S Pb @1-10S
• Input voltage 7.0-28.0V @MAX 12A
• Charger power: 200W @MAX 10A
• Balance current400mA @2-6S
• USB: 2.1A @5.0V or Upgrade

OUTPUT

• Power supply: 1.0-28.0V @1.0-10A mode:CC+CV
• SBUS: 880-2200us*16CH @20-100Hz
• PPM: 880-2200us*8CH @20-50Hz
• PWM: 500-2500us @20-1000Hz
• OverCurrent Cutoff time: <5ms

MEASURER

• SBUS: 880-2200us*16CH @20-100Hz
• Internal resistance: 1-99mR @1-6S
• PPM: 880-2200us*8CH @20-50Hz
• ESC: 200W@10A PWM Output
• PWM: 880-2200us @20-400Hz
• Voltage:1.0-5.0V @1-6S

Manual

Includes

• 1x ToolkitRC M7 Charger
• 1x USB Charger Cable
