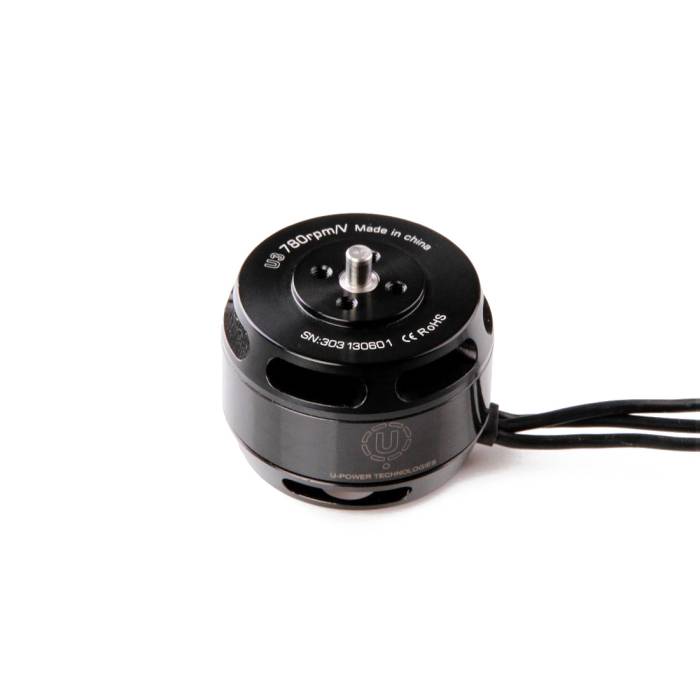

The U3 series motor by Tiger Motors is the ultimate power to weight ratio multi-rotor motor. This motor shines in efficiency and quality, giving you the longest flight times possible.

This motor is designed for large scale multi-rotor platforms looking to lift DSLR sized gear. A 10-12" prop is reccomended to fly with this motor supporting 3-4s battery voltage.

Specifications

• KV................................................................................................................700
• Internal resistance.................................................................................50mΩ
• Max. efficiency current...............................................................(4-10A)>82%
• Max Continuous Power(W)180S..........................................................500W
• Max Continuous current(A)180S.............................................................25A
• No.of Cells(Lipo)......................................................................................3-4S
• ldle current(10)@10v(A)..........................................................................0.5A
• Weight(g)....................................................................................................97g
• Motor Dimension(Dia.*Len)............................................Φ41.8×30.75mm
• Shaft Diameter........................................................................................4mm
• Configuration....................................................................................12N14P
