Tiger Motor MN5208 340kv

More Views

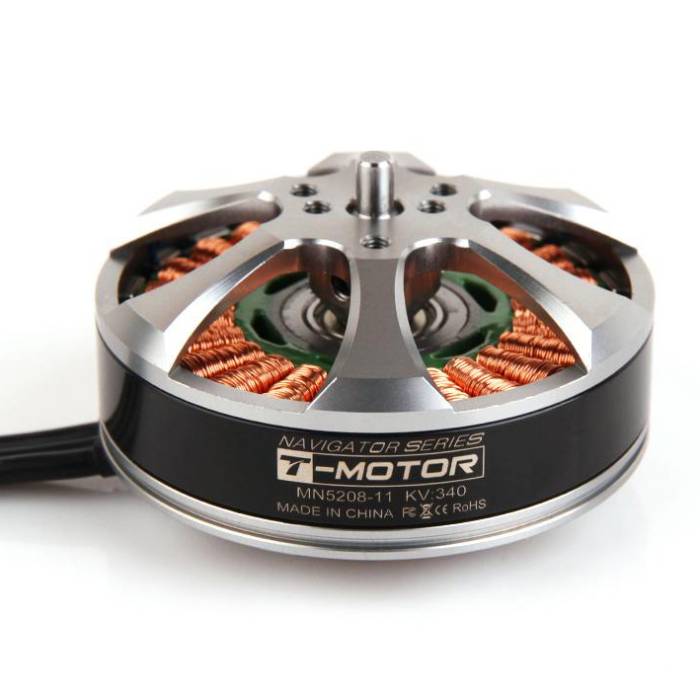

Tiger Motor MN5208 340kv
Navigator Series from Tiger Motors
Estimated back in stock on 9/12/2019
$99.99
Description

Designed specifically for multi-rotors, the Navigator Series from Tiger Motors includes some of the best multi-rotor motors available today.

The Multi-hole design allow almost any type of prop to be mounted to the motor.

Specifications:

KV: 340
Configu ration: 24N22P
Stator Diameter: 52mm
Stator Length: 8mm
Shaft Diameter: 6mm
Motor Dimensions(Dia.*Len): Φ59×29.5mm
Weight (g): 145g
ldle current(10)@10v(A): 0.9A
No.of Cells(Lipo): 4-6S
Max Continuous current(A)180S: 35A
Max Continuous Power(W)180S: 850W
Max. efficiency current: (5-10A)>84%
internal resistance: 93mΩ

mn5208 table

mn5208 blueprint

Additional Information
SKU 2765
Manufacturer Tiger Motors
UPC (GTIN) 739792064616
Popo Compatible No
