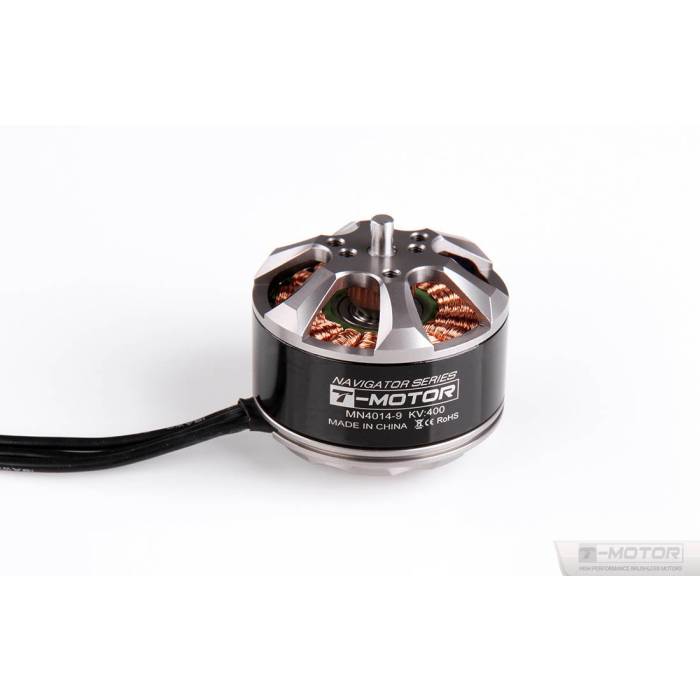

Tiger Motor MN4014-9 400kv
Navigator Series from Tiger Motors

About this product

Designed specifically for multi-rotors, the Navigator Series from Tiger Motors includes some of the best multi-rotor motors available today.

The Multi-hole design allow almost any type of prop to be mounted to the motor. This motor comes with M6 and M8 prop adapters so the motors work with many different prop shafts without needing a separate adapter.

Specifications:

KV................................................................................................................400
Configu ration...................................................................................18N24P
Stator Diameter...................................................................................40mm
Stator Length.......................................................................................14mm
Shaft Diameter.......................................................................................4mm
Motor Dimensions(Dia.*Len)...........................................Φ44.7×34.5mm
Weight (g)................................................................................................150g
ldle current(10)@10v(A).........................................................................1.3A
No.of Cells(Lipo)....................................................................................4-8S
Max Continuous current(A)180S...........................................................30A
Max Continuous Power(W)180S.......................................................900W
Max. efficiency current.............................................................(3-12A)>81%
internal resistance...............................................................................67mΩ

More Information

SKU 1223
Manufacturer Tiger Motors
Popo Compatible No
UPC (GTIN) 652118482850
