Tiger Motor F 20A 2-4S ESC BLHeli_S w/ Dshot
$12.99
Out of Stock
Only left for same day shipping. Order now!

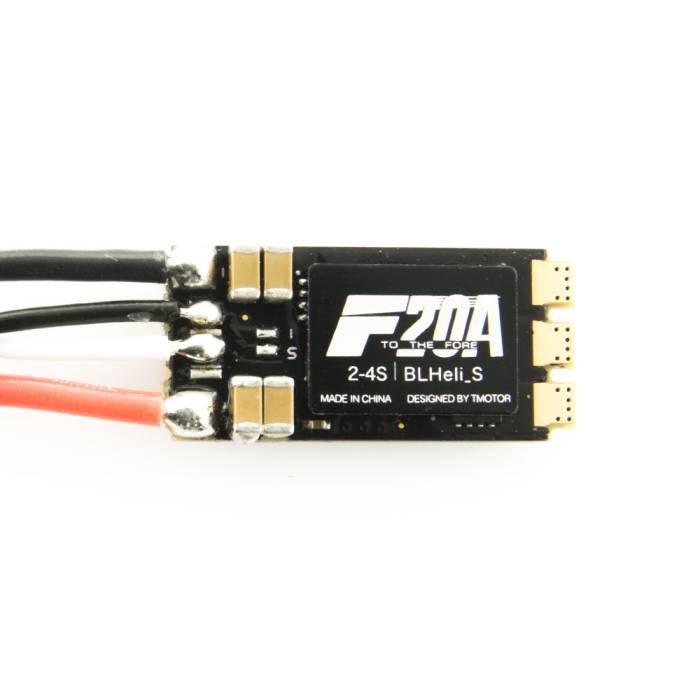

Tiger Motor F 20A 2-4S ESC BLHeli_S w/ Dshot
T-motor F20A 4S BLHeli-S & Dshot ESC Support Oneshot125 Oneshot42 Multishot for Racing Drone.
About this product
T-motor F20A 4S BLHeli-S & Dshot ESC Support Oneshot125 Oneshot42 Multishot for Racing Drone.
Features
- Original BLHeli-S firmware.
- Mini size.ultra-light.
- Quick parameter adjustment allthe ESC parameters can be adjusted simutaneously via flight controller.
- Support various throttle signals: 1一2ms,Oneshot125(125-250us).Oneshot42(41.7一83.3us) and Multsh-ot（5-25us).
- Twisted pair(TP) throttle signal cable reduces the crosstalk during signal transmission which guarantees stable flight.
Specification
- Brand: T-Motor
- Item name: FPV 20A 2-4S ESC BLHeli_S
- Continuous current: 20A
- Burst current: 30A
- Lipo (cell): 2-4S
- Weight wires included: 3.7g
- Dimension LxWxH(mm): 23.5*11.1*5
- BEC: No
- MCU: EFM8bb21f16G
| Item | F 30A 6S | F 30A 4S | F 20A 4S |
|---|---|---|---|
| Continuous Current | 30A | 30A | 20A |
| Burst Current | 40A | 40A | 30A |
| Lipo(cell) | 2-6S | 2-4S | 2-4S |
| Weight Wire Included | 6.6g | 4.3g | 3.7g |
| Dimension L x w x H(mm) | 30.5*14.9*5 | 25.5*12.7*5 | 23.5*11.1*5 |
| BEC | NO | NO | NO |
| MCU | EFM8bb21f16G | EFM8bb21f16G | EFM8bb21f16G |
Includes
- 1 x T-Motor FPV 20A 2-4S ESC BLHeli_S
More Information
| SKU | 6733 |
|---|---|
| UPC (GTIN) | AES01040161207153 |
| Manufacturer | Tiger Motors |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | N/A |
| Amps | 20 Amps |
| Voltage | 2-4 Cell (7.4v-14.8v) |
| Number of ESC's | Single ESC |
