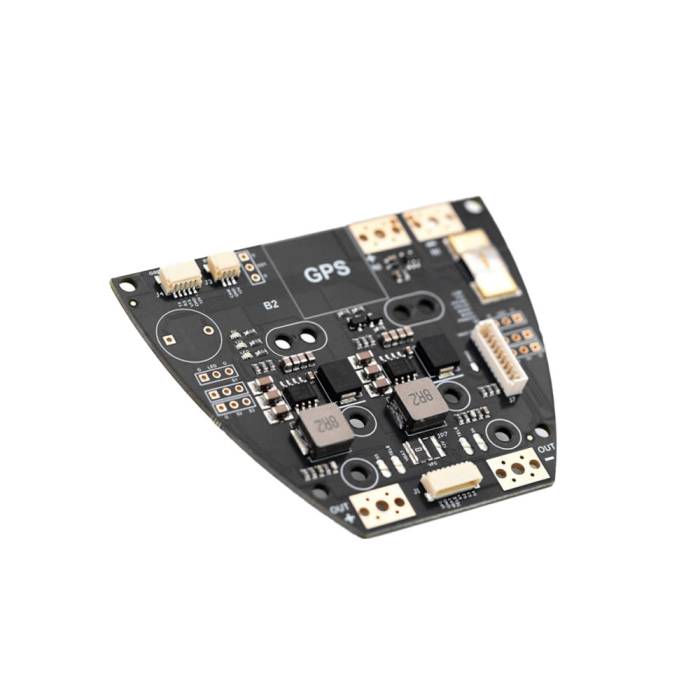

TBS Lucid Wing PDB

The TBS Lucid Wing PDB streamlines wing builds by eliminating wire clutter. Unlike quad FCs, wings need dedicated setups for current sensing and voltage rails, but traditional wing FCs often result in messy wiring. Designed for TBS's upcoming wing, it's also compatible with any wing using up to four servos and one or two motors. This versatile PDB supports both analog and digital builds, letting you repurpose your 20x20 or 30.5x30.5 flight controllers.

• Flight Controller Flexibility
• Analog & Digital Support
• Streamlined Wing Builds
• Universal Compatibility
• Wing-Specific Design
• Simplified Wiring

• Recommended FC: TBS Lucid 20x20 FC Freestyle or TBS Lucid H7 (not included)
• Output voltages: 12V 4A (LED, FC, etc.), 6V 4A (servos)
• Digital VTX, radio link, and other peripherals via FC
• Voltage sensor: Depends on the FC voltage input
• Current sensor: 200A burst, 90A continuous
• Max input voltage: 60V (14S)
• Onboard supported peripherals:

  • 20x20 and 30.5x30.5 iNav or ArduPilot FC
  • BLHeli/AM32 ESC with telemetry
  • Analog camera (3-pin)
  • Analog VTX (5-pin)
  • COB LEDs (12V)
  • TBS M10 GPS

IMPORTANT NOTES

• The voltage input to the flight controller (FC) can be switched between VBat and 12V. When using the 12V supply, a separate voltage divider is available to feed any ADC pin for VBat sensing.

• 1x Cables to connect FC peripherals to the PDB
• 1x Pin headers for servo plugs (2x20)
• 1x TBS Lucid Wing PDB
• 1x Hardware Kit
