T-Motor VELOX V2207 1750KV/1950KV Motor

More Views

T-Motor VELOX V2207 1750KV/1950KV Motor
Introducing the VELOX motors by T-Motor. V2207 Motor is great for freestyle and racing!
Choose option below...
$12.99

* Required Fields

$12.99
Description

Introducing the new VELOX motors by T-Motor. The V2207 motors come in a new and sleek design and are made with premium components to give your multirotor visibility and speed in the game! Great for freestyle and racing!

Features

  • 9*4*4 NMB bearing
  • Silicon steel sheet from Japan
  • 220℃ high-temperature-resistant copper wire
  • N50H high-temperature magnets
  • Single winding for 6S (1750KV and 1950KV)/ Multi winding for 4S(2550KV)
  • 12mm length M5 steel shaft
  • Motor Weight (Excluding wires) 32g-36g

Specifications

KV: 1750 (Pink)

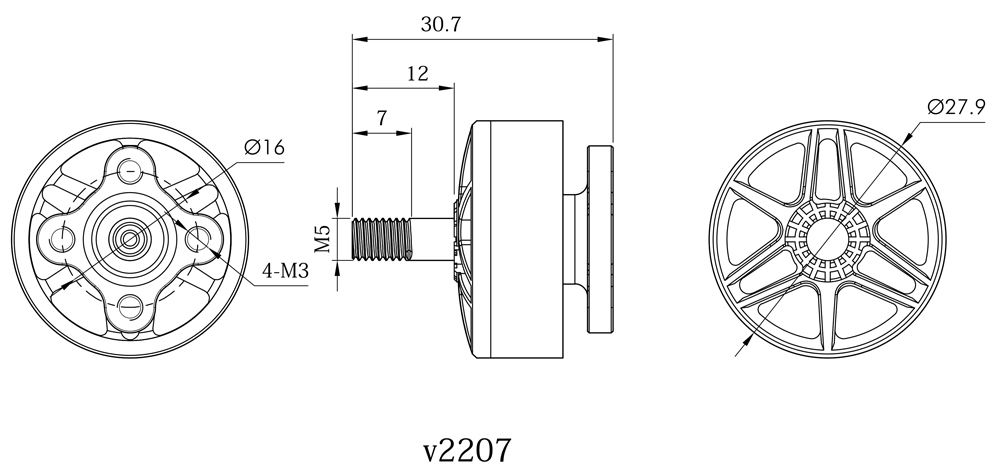

  • Motor DimensionS: Φ27.9*30.7mm
  • Lead: 20#AWG 150mm
  • Shaft Diameter: 4mm
  • Idle Current: 0.9A
  • Max.Power (the 60s): 741.5W
  • Weight (Inc. Cable): 35.3g
  • Internal Resistance: 73.5mΩ
  • Configuration: 12N14P
  • Rated Voltage (Lipo): 6S
  • Peak Current (60s): 32A

KV: 1950 (Orange)

  • Motor DimensionS: Φ27.9*30.7mm
  • Lead: 20#AWG 150mm
  • Shaft Diameter: 4mm
  • Idle Current: 1.27A
  • Max.Power (the 60s): 1051W
  • Weight (Inc. Cable): 35g
  • Internal Resistance: 56.1mΩ
  • Configuration: 12N14P
  • Rated Voltage (Lipo): 5-6S
  • Peak Current (60s): 42.19A

Includes

  • 1 x T-Motor VELOX  V2207 Motor
Additional Information
SKU 11978
Manufacturer Tiger Motors
UPC (GTIN) No
Popo Compatible No
