T-Motor Mini Racer 20x20 F7 Flight Controller

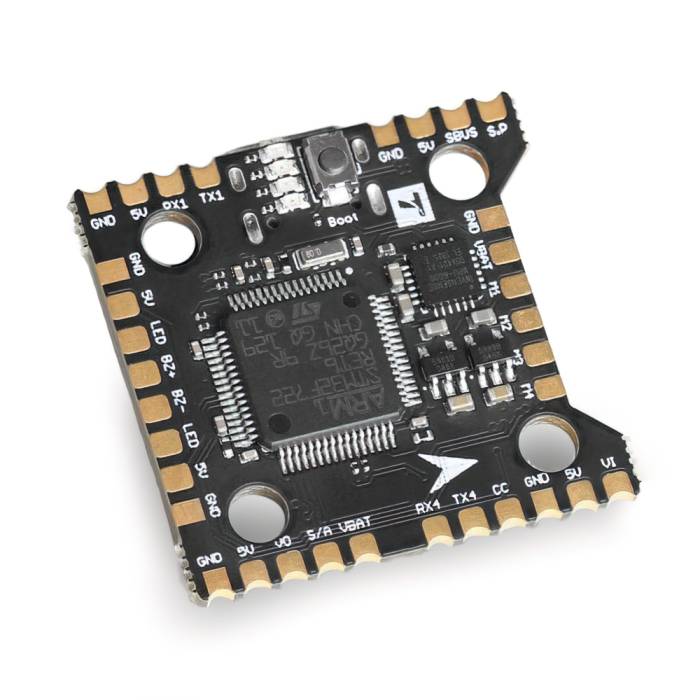

The T-Motor Mini Racer F7 is a 3-6S 20x20 mini flight controller with a 16MB Blackbox flash memory, 5V.2A BEC, and an MPU6000 gyro. Designed for easy maintenance and low interference.
About this product
The T-Motor Mini Racer F7 is a 3-6S 20x20 mini flight controller with a 16MB Blackbox flash memory, 5V.2A BEC, and an MPU6000 gyro. Designed for easy maintenance and low interference.
Features
- Supports USB Power without LiPo
- SImplified Lightweight Design
- 16M Blackbox Flash Memory
- Gyro Low Dropout Regulator
- USB-C Connection
- IMU MPU6000
- 4 UARTS
Specifications
- Mounting Hole: 20x20mm M3
- MCU: STM32F722RET6
- BEC: 5V/2A (Peak 2.5A)
- Dimensions: 31x30mm
- Blackbox: YES (16MB)
- Input Voltage: 3-6S
- Gyro: MPU6000
- Weight: 4.7g
- OSD: YES
- UARTs: 4
Includes
- 1x T-Motor Mini Racer 20x20 F7 Flight Controller
- 1x Connector Wire
- 4x Damping Grommets (Pre-Installed)
More Information
| SKU | 17582 |
|---|---|
| UPC (GTIN) | 6971360357308 |
| Manufacturer | Tiger Motors |
| Mounting Pattern | N/A |
| NDAA Compliant | No |
| Item Returns | This item can be returned |
