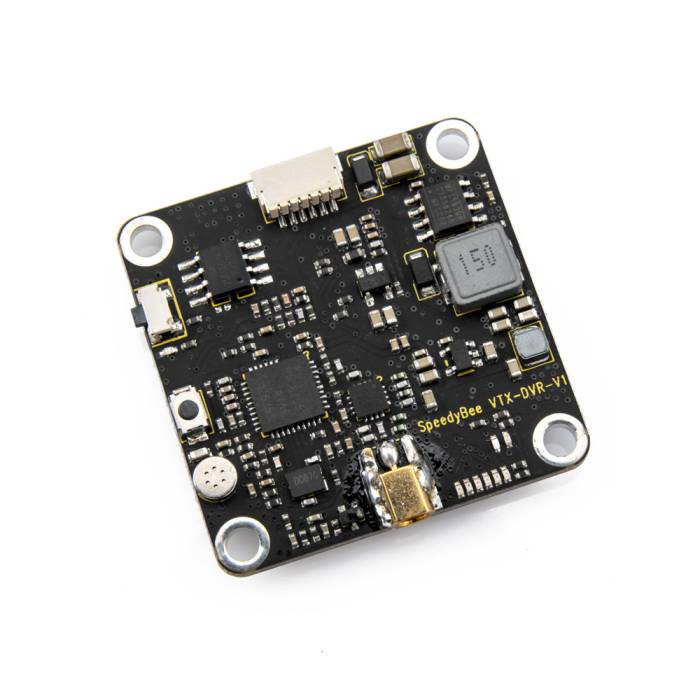

SpeedyBee VTX-DVR 5.8G 600mW Video Transmitter w/ DVR

More Views

SpeedyBee VTX-DVR 5.8G 600mW Video Transmitter w/ DVR

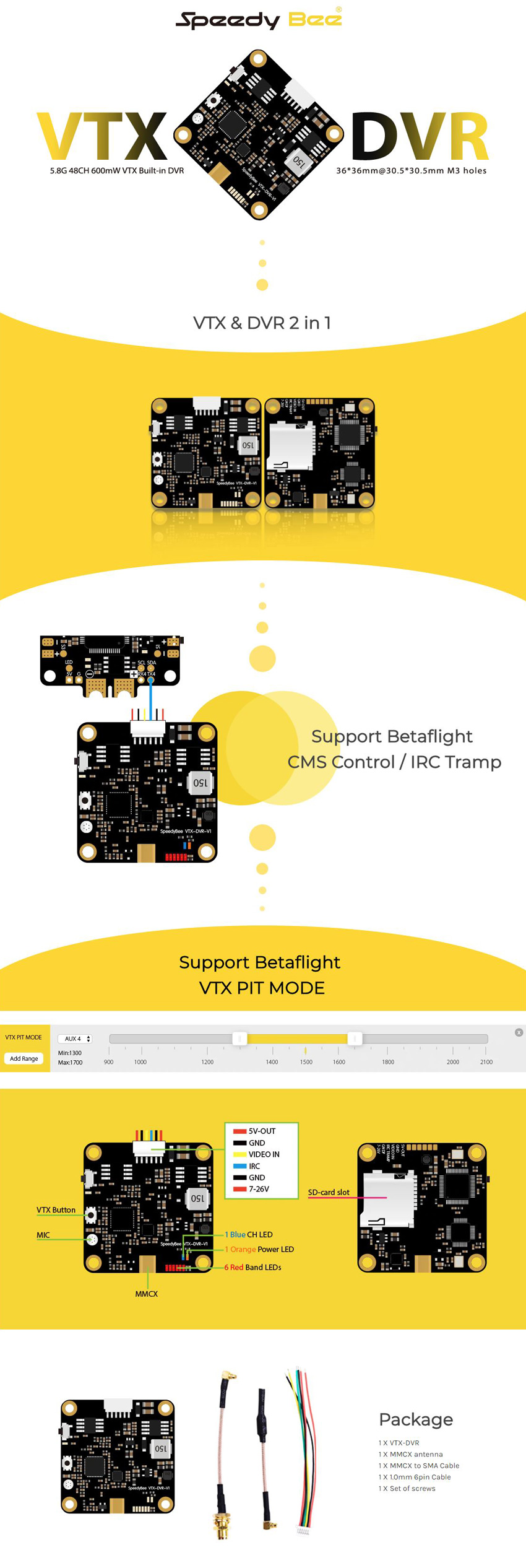

The SpeedyBee VTX-DVR is an all-in-one solution for those wanting high-quality onboard DVR recording and VTx in one board. The VTx supports Betaflight, CMS, and IRC Tramp.
In Stock
$34.99
Description

Specifications

  • DVR Video in CVBS@1Vp-p 75Ω
  • Encoder MJPEG@AVI
  • Resolution VGA ( 640 x 480 ) @ 30fps ( NTSC ) / 25 fps ( PAL )
  • Audio Built-in MIC
  • Micro SD Card Max 32G
  • VTX Frequency Channel 5.8G 48CH
  • Output Power 25mW / 200mW / 600mW
  • Video Input Impedance 75 Ohm
  • Antenna Connector MMCX
  • Power in DC 7-26V
  • Working Current DC 9V @Max 450mA
  • Power out DC 5V @Max 250mA
  • Net Weight 7.5 g (without antenna)
  • Dimension 36mm*36mm @30.5 × 30.5 M3 holes

Frequency Setup

The factory default setting is in lock mode with red LED blinking and only 25mW is available. You can switch to unlock mode by long pressing the button for 10 seconds with the red LED constantly on.

Note: Before you get VTX unlocked, it is highly recommended to know about the rules and regulations in your country about the frequency to avoid a fine or confiscation of your device.

Button Function Switching

  • - Short press to CH;
  • - Long press 2 seconds to BAND;
  • - Long press 5 seconds to POWER;
  • - Long press 10 seconds to Unlock/Lock Mode.

Click here to download the manual: VTX-DVR-manual.pdf

Includes

  • 1X VTX-DVR
  • 1X MMCX antenna
  • 1X MMCX to SMA Cable
  • 1X 1.0mm 6pin Cable
  • 1X Set of screws
Additional Information
SKU 9076
Manufacturer SpeedyBee
UPC (GTIN) 680465697078
Frequencies 5.8GHz
