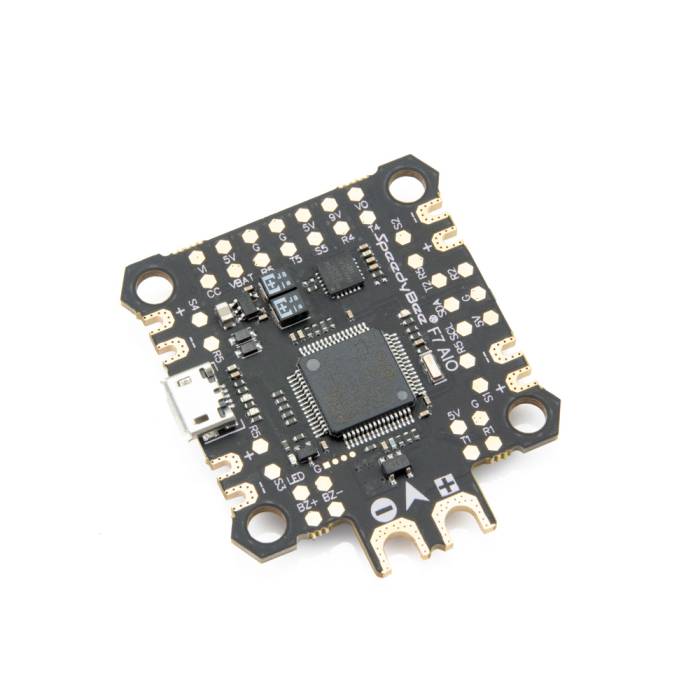

SpeedyBee F7 AIO Flight Controller

The SpeedBee F7 AIO  Flight Controller features Bluetooth, 4 functional UARTS, 30.5X30.5 mounting holes, supports OSD, 4-In-1 ESCs and much more!

Specifications

• MCU: STM32F722
• IMU: ICM20689
• Baro: BMP280 (I2C)
• OSD: BetaFlight OSD w/ AT7456E chip
• BLE Module: inner connect to UART3 for remote setting with SpeedyBee App or other similar apps
• BlackBox: 32MB onboard dataflash
• Current Sensor: 200A(Scale 102)
• BetaFlight Camera Control Pad: Yes
• Power input: 3s - 6s Lipo
• Power output: 5V *5(Including BZ+), the maximum load current is 2.5A. 9V * 1, the maximum load current is 2.5A.
• ESC power output: 4 * VCC output
• UART: UART Pads * 4(UART1, UART2, UART4, UART5)
• RSSI input: RSSI input solder pad
• SmartPort: Use Softserial1 to support SmartPort
• I2C: Used for external Magnetometer, Sonar, etc.
• Buzzer: BZ+ and BZ- pad used for 5V Buzzer
• ESC signal: S1 - S5
• LED pin: Used for WS2812 LED
• Boot button: Used to easy enter DFU mode
• Weight: ≈8.8g
• Dimension: 36.5*44*7mm

Manual

Includes

• 1 x SpeedyBee F7 AIO Flight Controller
• 5 x M3*4.5 Anti-vibration silicone grommet
• 5 x M3*8 Anti-vibration silicone grommet
• 1 x Rubycon 35V 470uf capacitor
• 5 x M3*6+6 Nylon Column
• 5 x M3 Nylon nut
• 1 x JST 8PIN Cable
• 2 x JST 8PIN Connector
• 1 x XT60 Cable
