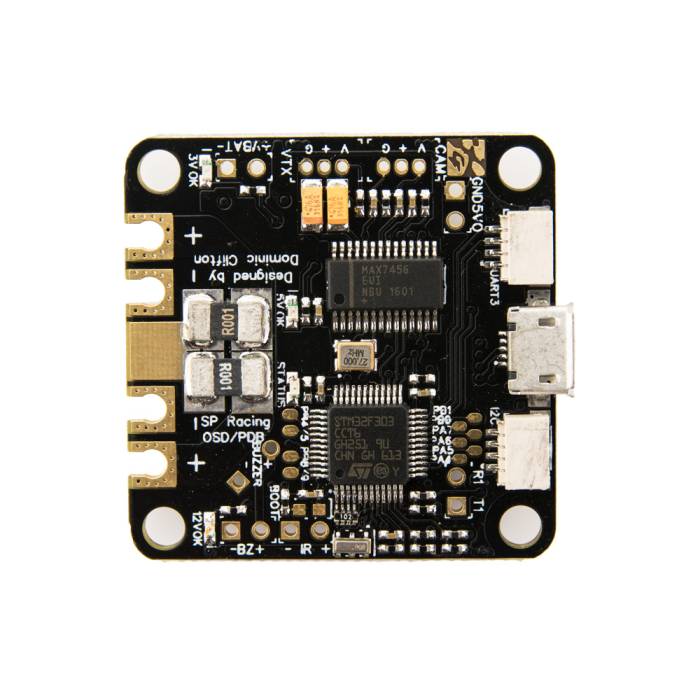

SP Racing OSD/PDB

3.4 2 5 1

Quick Overview

The stackable Seriously Pro Racing F3 OSD/PDB is packed with features to make the core of your multi-rotor system super tidy, wire free, lightweight and totally awesome!
Out of Stock

Regular Price: $39.99

Special Price $29.99

Details

The stackable Seriously Pro Racing F3 OSD/PDB is packed with features to make the core of your multi-rotor system super tidy, wire free, lightweight and totally awesome!. All-new firmware and all-new configuration software.

FEATURES

The SPRacingF3OSD combined with an EVO/ACRO/DELUXE flight-controller is all you need for the core of your compact new multi-rotor build - just add Motors, ESCs and a receiver and you're done!

Customizable OSD layout

Configure the elements on your OSD to your taste.

Next-Generation CPU

The SPRacingF3OSd has an ARM Cortex-M4 72Mhz CPU with Math co-processor (FPU) for a fast OSD system.
No-longer are we stuck with old 8-bit ATMEL processors.

Configuration using Cleanflight Configurator

All-new configution section in the Cleanflight configurator allows you to customise any aspect of your OSD system.

5V and 12V BEC Power Supplies

High-current 5V and 12V power supplies for powering your FC, Receiver, LED Strip, VTX and other accessories.

LC Filter

Provides smoothed power to your FC, OSD and VTX. Isolates noise from your ESCs and motors.



USB

USB socket for configuration of OSD.

No messing around with seperate FTDI adapters and no MWOSD software required!



Configurable

The SPRacingF3EVO runs Cleanflight which can be configured to suit your needs using a cross-platform GUI (Windows/OSX/Linux).



Small and lightweight

The SPRacingF3OSD has a standard 36x36mm form-factor with 30.5mm mounting holes on a premium 2oz 4 layer copper PCB for durability and maximum current handling.



Stackable

The SPRacingF3OSD is a stackable design. Connect an FC above or below the board for a super-tidy and wire-free installation.

Stackable designs are proven to be more durable in a crash.



Current Sensor

Monitor your current draw and capacity used so you know when to land.

Helps extend the life of your batteries



Developer Friendly

Developer friendly debugging port (SWD), unbrickable bootloader.
Open-source code available on GitHub.



Battery and BEC Voltage Monitoring

Built in voltage monitoring for Battery, 5V and 12V supplies.



I2C and UART ports

I2C port, always powered.
UART port for additional connectivity.



Buzzer

Buzzer solder points to allow easy buzzer mounting.



Cleanflight logos and stickers

The SPRacingF3OSD features a copper-etched Cleanflight logo so you can show your support!

Each purchase direct from the Seriously Pro shop also comes with stickers! (when available)



Power Distribution Board

Integrated high-current capable PDB for Battery and ESC connections.

THE SPRACINGF3OSD DESIGN IS:

  • Practical - Keeps all your wires tidy.
  • Durable - Though-hole connectors for all main I/O for crash-proof installation.
  • Stackable - Mount to compatible FCs using just 2 through-hole pins from each corner.
  • Compact - Entire board measures just 36x36mm.
  • Professional - Symmetrical, Neat and Tidy.

Additional Information

SKU 6436
Manufacturer Seriously Pro
  1. Good concept review by Josh on 11/19/2016
    Quality
    Price
    Value

    This board stacks real well with the evo, making the build very clean! I used a 4-in-1 esc with this setup and this eliminates the congestion issue a person would have with 4 separate esc's. I think the price point is good if some of the minor problems could be addressed. I had a bit of a time getting the board flashed correctly (it would be really nice if the evo and pdb/osd had boot buttons to simplify flashing), and once I did I still wasn't able to configure the "callsign" in cleanflight. It would also be nice to be able to configure this in betaflight.
    After another attempt to flash the board I wish I could say its working flawlessly, but in following Dom's instructions, the FC touched the pdb and shorted out. Hoping for good results when the new FC arrives!

  2. No Manual review by Todd on 11/9/2016
    Quality
    Price
    Value

    Stacks real nice with EVO, OSD configures in Cleanflight, but no way to check as no voltage on the VTX and Camera connections and NO manual to verify if my guesswork is right.
    ESC soldering points too crowded with the LIPO connection. Won't use this board again. Other PDB's much better laid out. Want to support the Dev, but....
