Skyzone 5.8Ghz 32CH A/V Auto Scan Receiver
Skyzone 5.8Ghz 32CH A/V Auto Scan Receiver
About this product

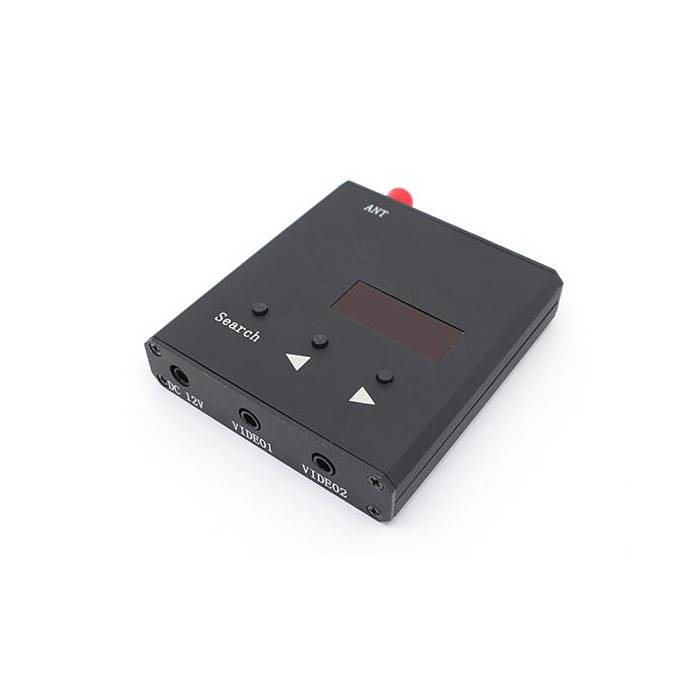

This is the Skyzone 5.8Ghz 32CH A/V Receiver - featuring a one touch search function over all 32CH of 5.8Ghz.
The SKY-32S Receiver is compact in size for easy integration into your ground station, but big in quality and features. The receiver uses the same two button interface as the TS832 Transmitter used to change channels, while the new search button makes finding the correct channel a breeze. There are two independent AV outputs for both audio and video. So you can use a monitor and set of goggles or maybe a DVR to record your flight. Powering the receiver at the field is as easy as plugging in a 3 cell lipoly into the included prewired cable with mini JST. It just doesn’t get any simpler than this.
Features
- One touch scanning of all 32CH in 5.8Ghz
- 32 channels: Cover A, B, E bands and F bands
- Two switching buttons for the band and channel
- Two digit display for the band and channel
- Dual audio/video signal outputs
RX SKY-32S Specs:
- Power input: 12V
- Antenna impedance: 50
- Antenna gain: 2db
- Video impedance: 75
- Video format: NTSC/PAL auto
- Dimension: 75x 68 x15mm
- Weight: 80g
- Antenna connection: SMA
Frequency and channel frequency table:
Note: This Rx is not compatible with newer ImmersionRC or Fatshark Nexwave branded transmitters.
Compatible with Boscam, Foxtech and other generic branded FPV gear within the same frequency range.
Included
- 1 x receiver (RX)
- 1 x antennas (2db)
- 1 x Power cable for Sky-32S
- 1 x A/V cable
- 1 x user manual
FPV Regulatory Notice
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
More Information
SKU | 2670 |
---|---|
UPC (GTIN) | 704817769166 |
Manufacturer | Skyzone |
NDAA Compliant | No |
Item Returns | This item can be returned |
